SHORT BLOCK ASSEMBLY

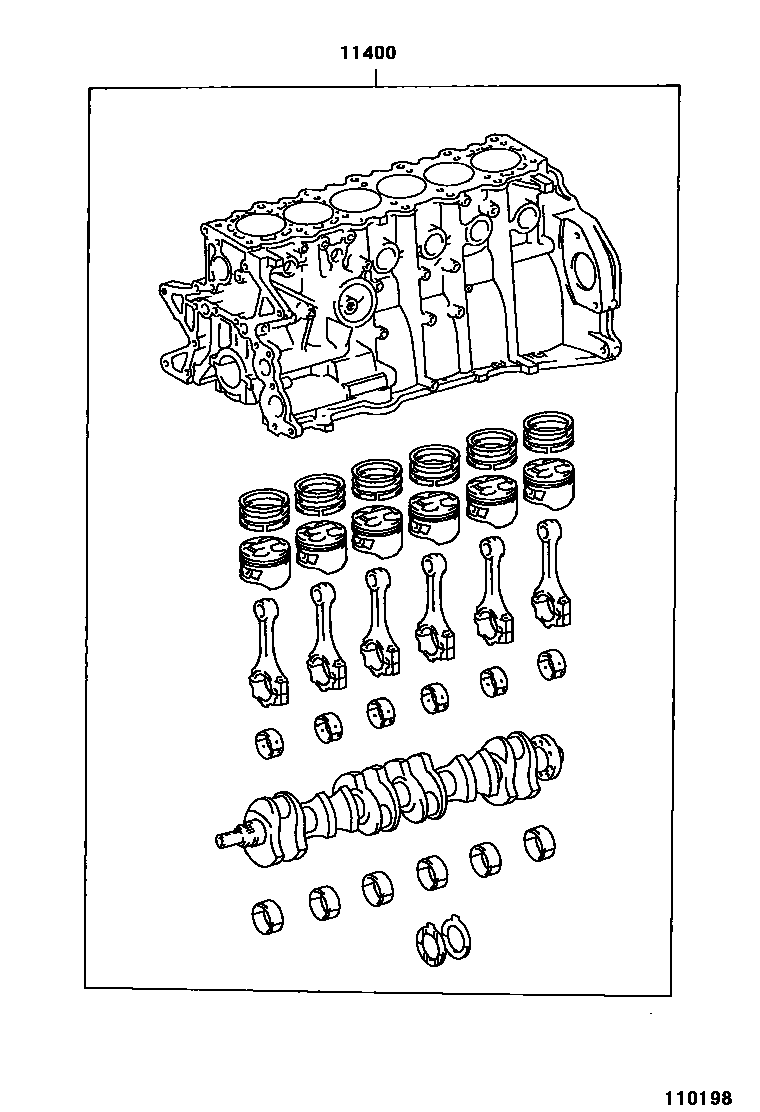

Parts diagram

11400BLOCK ASSY, SHORT

main11400-49076i199512-199604

main11400-49077i199604-199708

main11400-49105i199512-199604

main11400-49106i199604-199707

main11400-49135i199708-200108

main11400-49145i199707-199909

main11400-70090i199707-199805

main11400-70091i199805-199808

1 parts on this diagram · 1 diagram in section
