HEATING & AIR CONDITIONING - COMPRESSOR

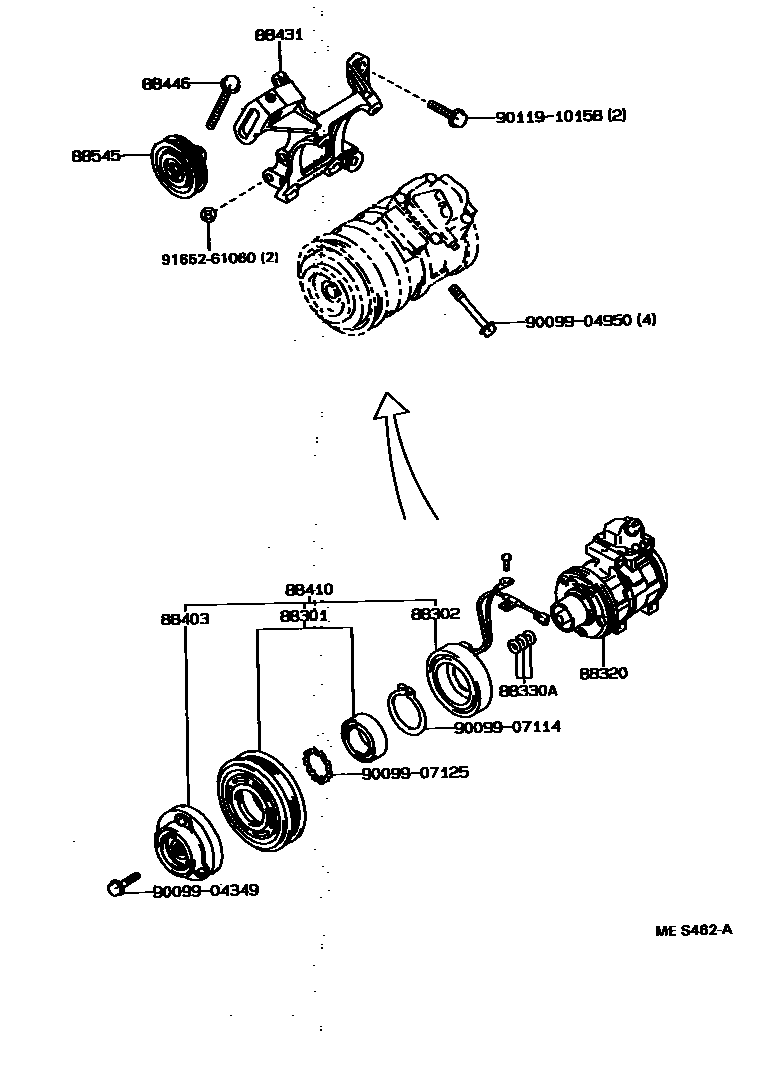

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1COMPONENT OF COMPRESSOR 0007 1COMPONENT OF COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12160iGS131199110-199904

main88412-22030iYS132199110-199308

main88412-22240iYS132199308-199512

main88412-30390iLS130..RHD199110-199308

main88412-30410iJZS133199110-200104

main88412-30430iLS130..LHD199110-199308

main88412-30460iLS130199308-199512

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2B040iGS131199308-199904

main88411-30380iYS132199110-199308

main88411-30510iGS131199110-199308

main88411-30540iJZS133199110-199509

main88411-30550iLS130..RHD199110-199308

main88411-30560iLS130..LHD199110-199308

main88411-30570iYS132199308-199512

main88411-30580iLS130199308-199512

main88411-3A010iJZS133199509-200104

88320COMPRESSOR ASSY, COOLER

main88320-30421iGS131199110-199308

main88320-30440iYS132199110-199308

main88320-30550iLS130..LHD199110-199308

main88320-30600iLS130..RHD199110-199308

main88320-30640iJZS133199110-199301

TYPE A:REFER ILLUST.

main88320-30641iJZS133..EECC,GEN199301-199308

TYPE A:REFER ILLUST.

main88320-30651iJZS133..GEN199308-200104

TYPE A:REFER ILLUST.

main88320-30660iJZS133..LHD..GEN199202-199308

TYPE B:REFER ILLUST.

main88320-30660iJZS133..GCC199202-199308

HOT AREA SPEC,TYPE B:REFER ILLUST.

main88320-30690iJZS133..GCC199308-199512

TYPE B:REFER ILLUST.

main88320-30690iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199308-199512

HOT AREA SPEC,TYPE B:REFER ILLUST.

main88320-3A040iGS131199308-199904

main88320-3A050iYS132199308-199512

main88320-3A060iLS130199308-199512

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iYS132;LS130..RHD199110-199512

main88335-14020iGS131,JZS133,LS130199110-200104

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iYS132;LS130..RHD199110-199512

main88403-16011iGS131;LS130..LHD199110-199202

main88403-16011iGS131;LS130..LHD;JZS133..GCC199202-199308

HOT AREA SPEC

main88403-30290iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199308-199509

HOT AREA SPEC

main88403-3A020iJZS133..GEN199502-200104

main88403-3A040iGS131;JZS133..GCC199308-199904

main88403-3A040iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199509-199512

HOT AREA SPEC

main88403-3A060iJZS133199110-199308

88410CLUTCH ASSY, MAGNET

main88410-30380iYS132199110-199308

main88410-30590iGS131199110-199308

main88410-30670iJZS133199110-199308

main88410-30710iJZS133..GCC199502-199512

HOT AREA SPEC

main88410-30710iJZS133199308-199502

main88410-30730iLS130..RHD199110-199308

main88410-30740iLS130..LHD199110-199308

main88410-3A040iGS131199308-199904

main88410-3A070iYS132199308-199512

main88410-3A080iLS130199308-199512

main88410-3A100iJZS133..GEN199502-200104

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22290iLS130..RHD..4F199210-199308

FRONT SEMI *AIC OR FRONT MANUAL *AIC

main88431-22290iLS130..4H199110-199210

FRONT MANUAL *AIC

main88431-22290iLS130..RHD..4F199210-199512

FRONT SEMI AIR CONDITIONER

main88431-22330iLS130199110-199201

main88431-22331iLS130199201-199512

main88431-24060iGS131199110

main88431-30490iYS132199110-199512

main88431-30590iLS130..RHD199201-199210

FRONT SEMI AIR CONDITIONER

88446BOLT, IDLE PULLEY

main90099-04306iGS131199110

main90099-04417iLS130..4H199110-199512

88545PULLEY ASSY, IDLE

main88440-17010iGS131199110

main88440-30310iYS132199110-199512

main88440-35010iLS130199110-199512

9009904349

main90099-04349

9009904950

main90099-04950

9009907114

main90099-07114

9009907125

main90099-07125

9011910158

main90119-10158

9165261060

main91652-61060

15 parts on this diagram · 7 diagrams in section
