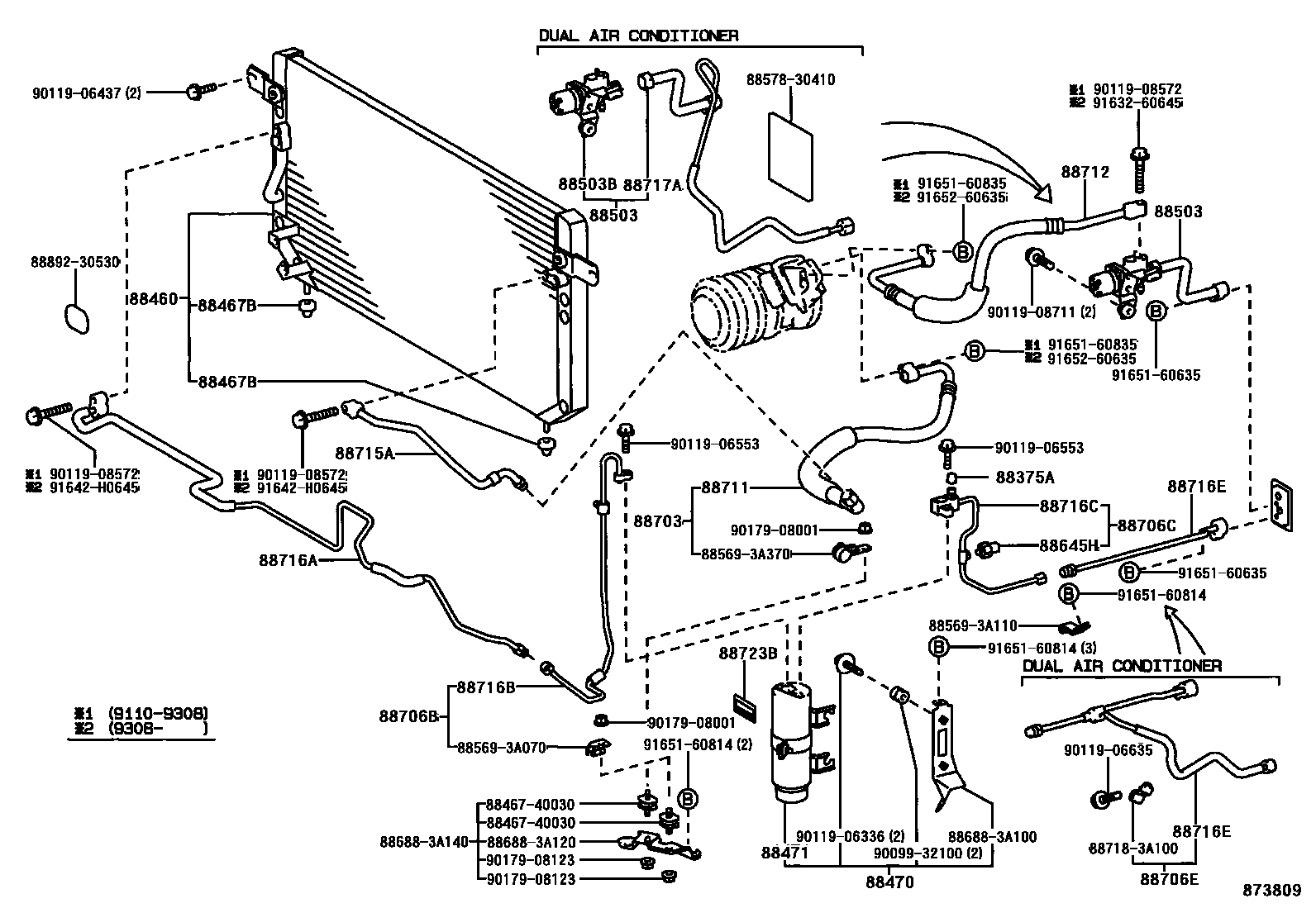

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT---GEN COUTRY IS HOT ARE0005 1FRONT(MAKER OPTION AIR CONDIT0006 1FRONT(DEALER OPT AIR CONDITIO0007 1FRONT 0008 1FRONT 0009 1REAR 0010 1REAR 0011 1O-RING

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-24010iGS131,JZS133,LS130,YS132199110-199308

main88375-30280iGS131,JZS133,LS130,YS132199308-200104

88460CONDENSER ASSY, COOLER

main88460-30620iJZS133..GCC; JZS133..LHD..GEN199110-199308

DENSO; HOT AREA SPEC,DENSO

main88460-30630iGS131,JZS133,LS130,YS132..EECC,GEN199110-199308

main88460-30660iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN; JZS133..GCC199308-199512

HOT AREA SPEC

main88460-30680iGS131,JZS133,LS130,YS132..GEN199308-200104

main88460-30810iJZS133..GCC; JZS133..LHD..GEN199110-199308

HOT AREA SPEC,TOYOTA; TOYOTA

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14050×2iGS131,JZS133,LS130,YS132199110

88470RECEIVER & DRYER ASSY, COOLER

main88470-30490iGS131,JZS133,LS130,YS132199110-199308

main88470-30520iGS131,JZS133,LS130,YS132199308-200104

88471TANK, RECEIVER AIR CONDITIONER

main88470-22020iLS130..4H199110-199308

FRONT MANUAL *AIC

main88471-30350iGS131,JZS133,LS130,YS132..4F,4FC,5F; LS130..4H199110-199308

FRONT SEMI *AIC

main88471-30370iGS131,JZS133,LS130,YS132199308-200104

88503REGULATOR ASSY, PRESSURE

main88503-30461iGS131..LHD; GS131..RHD; JZS133..RHD..G199110-199308

W(AUTO AIR CONDITIONER); W(FRONT COOLER)

main88503-30540iGS131;JZS133..RHD..G199110-199210

W(REAR AIR CONDITIONER)

main88503-30630iGS131..RHD199308-199512

W(AUTO AIR CONDITIONER)

main88503-30640iGS131..RHD199308-199512

W(FRONT & REAR AIR CONDITIONER)

88503BREGULATOR SUB-ASSY, PRESSURE

main88503-30471iGS131;JZS133..RHD199110-199308

main88503-30650iGS131,JZS133..RHD199308-200104

88645HSWITCH, PRESSURE NO.1

main88645-22070iJZS133;GS131..LHD199402-200104

main88645-22080iYS132;GS131..RHD199402-199512

main88645-30281iGS131..RHD;LS130,YS132; LS130..LHD199110-199308

88706C TUBE

main88645-30340iGS131,JZS133,YS132199308-199402

main88645-30370iLS130..4H199308-199512

main88645-50010×2iJZS133..LHD; JZS133..RHD199110-199209

88703HOSE SUB-ASSY, DISCHARGE

main88703-30260iGS131..RHD199110-199308

main88703-30440iLS130199110-199308

main88703-30450iYS132199110-199308

main88703-30480iJZS133..LHD199110-199308

main88703-30490iJZS133..RHD199110-199308

main88703-30540iLS130199308-199512

main88703-30550iGS131..RHD199308-199512

main88703-30580iJZS133..RHD199308-200104

main88703-30590iYS132199308-199512

main88703-30600iGS131,JZS133..LHD199308-199904

88706BTUBE SUB-ASSY, LIQUID, B

main88706-30250iJZS133..LHD;GS131,LS130..RHD; LS130..LHD; YS132;JZS133..RHD199110-199209

FRONT MANUAL AIR CONDITIONER; PLANT NO.A21-A26

main88706-30420iJZS133..RHD; LS130..LHD199110-199209

PLANT NO.M21-M22; W(BOOST VENTILATOR)

main88706-30670iLS130..4H199308-199512

FRONT SEMI *AIC

main88706-30760iLS130..4H199308-199512

FRONT SEMI *AIC---DEALER OPT

88706CTUBE SUB-ASSY, LIQUID, C

main88706-30260iYS132;GS131..RHD199110-199209

PLANT NO.A21-A26

main88706-30310iYS132;GS131..RHD199110-199209

PLANT NO.M21-M22

main88706-30370iLS130..4H; LS130..LHD; LS130..RHD199110-199209

FRONT MANUAL AIR CONDITIONER; PLANT NO.A21-A26

main88706-30380iLS130..LHD; LS130..RHD199110-199209

PLANT NO.M21-M22; W(BOOST VENTILATOR)

main88706-30440iJZS133..RHD199110-199209

PLANT NO.A21-A26

main88706-30450iJZS133..LHD; JZS133..RHD199110-199209

PLANT NO.M21-M22

main88706-30660iYS132;GS131..RHD199308-199512

main88706-30680iJZS133;GS131..LHD199308-200104

88706ETUBE SUB-ASSY, LIQUID, E

main88706-30300iJZS133,YS132..LHD..(B,D,G,J)199110-199308

main88706-30320iGS131;JZS133..RHD199110-199308

main88706-30400iLS130..LHD199110-199308

W(BOOST VENTILATOR) OR W(AIR CONDITIONER)

main88706-30620iGS131,JZS133..RHD199308-200104

main88706-30630iGS131,JZS133,YS132..LHD..(B,D,G)199308-199512

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-30640iGS131..RHD199110-199210

main88711-30641iGS131..RHD199210-199308

main88711-30660iYS132199110-199308

main88711-30810iLS130199110-199308

main88711-30850iJZS133..LHD199209-199308

main88711-30860iJZS133199110-199209

main88711-3A020iLS130..4H199308-199512

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30880iGS131..RHD199110-199308

main88712-3A020iYS132199110-199210

main88712-3A021iYS132199210-199308

main88712-3A170iLS130..4H; LS130..RHD..4F199110-199210

FRONT SEMI AIR CONDITIONER

main88712-3A171iLS130..4H199110-199210

FRONT MANUAL *AIC

main88712-3A180iLS130..LHD199110-199210

main88712-3A181iLS130..LHD199210-199308

main88712-3A260iJZS133..RHD199110-199308

main88712-3A270iJZS133..LHD199110-199308

main88712-3A430iGS131..RHD199308-199512

main88712-3A460iJZS133..RHD199308-199311

main88712-3A461iJZS133..RHD199311-200104

main88712-3A560iLS130..4H199308-199512

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88711-30800iYS132199110-199308

main88715-30480iLS130199110-199308

main88715-30500iGS131,JZS133199110-199308

main88715-30520iLS130..4H199308-199512

main88715-30530iGS131,JZS133199308-200104

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-3A420iLS130,YS132199110-199308

main88726-3A550iGS131;JZS133..RHD199110-199308

main88726-3A560iJZS133..LHD199110-199308

main88726-3A750iLS130,YS132199308-199512

main88726-3A780iGS131,JZS133..RHD199308-200104

main88726-3A810iGS131,JZS133..LHD199308-199904

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-3A100iJZS133..LHD;GS131,LS130..RHD..(4FC,4H,5F); LS130..LHD; YS132;JZS133,LS130..RHD199110-199209

PLANT NO.A21-A26; W(HEATER & FRONT MANUAL AIR CONDITIONER)

main88726-3A390iJZS133..RHD; LS130..LHD199110-199209

PLANT NO.M21-M22; W(BOOST VENTILATOR & FRONT AIR CONDITIONER)

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88726-3A110iYS132;GS131,JZS133..RHD199110-199209

PLANT NO.A21-A26

main88726-3A250iJZS133..LHD; YS132;GS131,JZS133..RHD199110-199209

PLANT NO.M21-M22

main88726-3A310iLS130..LHD; LS130..RHD199110-199209

FRONT MANUAL AIR CONDITIONER; PLANT NO.A21-A26

main88726-3A320iLS130..LHD; LS130..RHD199110-199209

PLANT NO.M21-M22; W(BOOST VENTILATOR)

main88726-3K050iLS130199308-199512

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88726-3A050iGS131; JZS133..RHD..G199210-199308

W(FRONT & REAR AIR CONDITIONER); W(REAR AIR CONDITIONER)

main88726-3A060iJZS133..LHD..(G,J); JZS133..LHD..Q199110-199308

W(REAR AIR CONDITIONER)

main88726-3A070iGS131..LHD; GS131..RHD; JZS133,LS130..RHD..(B,G)199110-199308

W(AUTO AIR CONDITIONER); W(FRONT COOLER)

main88726-3A080iJZS133,YS132..LHD..(B,D,G,J)199110-199308

main88726-3A400iLS130..LHD199110-199308

W(FRONT COOLER) OR W(MANUAL AIR CONDITIONER)

main88726-3A720iGS131..RHD199308-199512

W(AUTO AIR CONDITIONER)

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-30760iJZS133..LHD..(G,J); JZS133..LHD..Q199110-199308

W(REAR AIR CONDITIONER)

main88727-30770iLS130..RHD199110-199308

main88727-30780iJZS133,LS130,YS132..LHD..(B,D,G,J)199110-199308

main88727-3A260iGS131;JZS133..RHD199110-199308

main88727-3A430iGS131,JZS133..RHD199308-200104

main88727-3A460iLS130199308-199512

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iGS131,YS132;JZS133..4FC;JZS133..5F..(D,G);JZS133..5F..GCC..Q; LS130..4H199308-199410

FRONT SEMI AIR CONDITIONER

main88723-28110iJZS133..EECC199110-199205

HONG KONG SPEC & W(REAR AIR CONDITIONER)

main88723-28120iJZS133..EECC199110-199308

main88723-30030iGS131..LHD; GS131..RHD; JZS133,LS130,YS132..B,D,G,J199110-199308

FRONT AUTO AIR CONDITIONER; W(BOOST VENTILATOR)

main88723-30100iLS130..4H199308-199512

FRONT SEMI AIR CONDITIONER (DEALER OPT)

main88723-50150iLS130..4H199410-199512

FRONT SEMI AIR CONDITIONER

8846740030CUSHION, COOLER CONDENSER, NO.1

main88467-40030

885693A070CLAMP (FOR COOLER RELAY)

main88569-3A070

885693A110CLAMP (FOR COOLER RELAY)

main88569-3A110

885693A370CLAMP (FOR COOLER RELAY)

main88569-3A370

8857830410PAKING, COOLER AIR DUCT

main88578-30410

886883A100BRACKET, COOLER DIAPHRAGM

main88688-3A100

886883A120BRACKET, COOLER DIAPHRAGM

main88688-3A120

886883A140BRACKET, COOLER DIAPHRAGM

main88688-3A140

887183A100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-3A100

8889230530BRACKET, COOLER EVAPORATOR MOUNTING

main88892-30530

9009932100

main90099-32100

9011906336

main90119-06336

9011906437

main90119-06437

9011906553

main90119-06553

9011906635

main90119-06635

9011908572

main90119-08572

9011908711

main90119-08711

9017908001

main90179-08001

9017908123

main90179-08123

9163260645

main91632-60645

91642H0645

main91642-H0645

9165160635

main91651-60635

9165160814

main91651-60814

9165160835

main91651-60835

9165260635

main91652-60635

46 parts on this diagram · 11 diagrams in section
