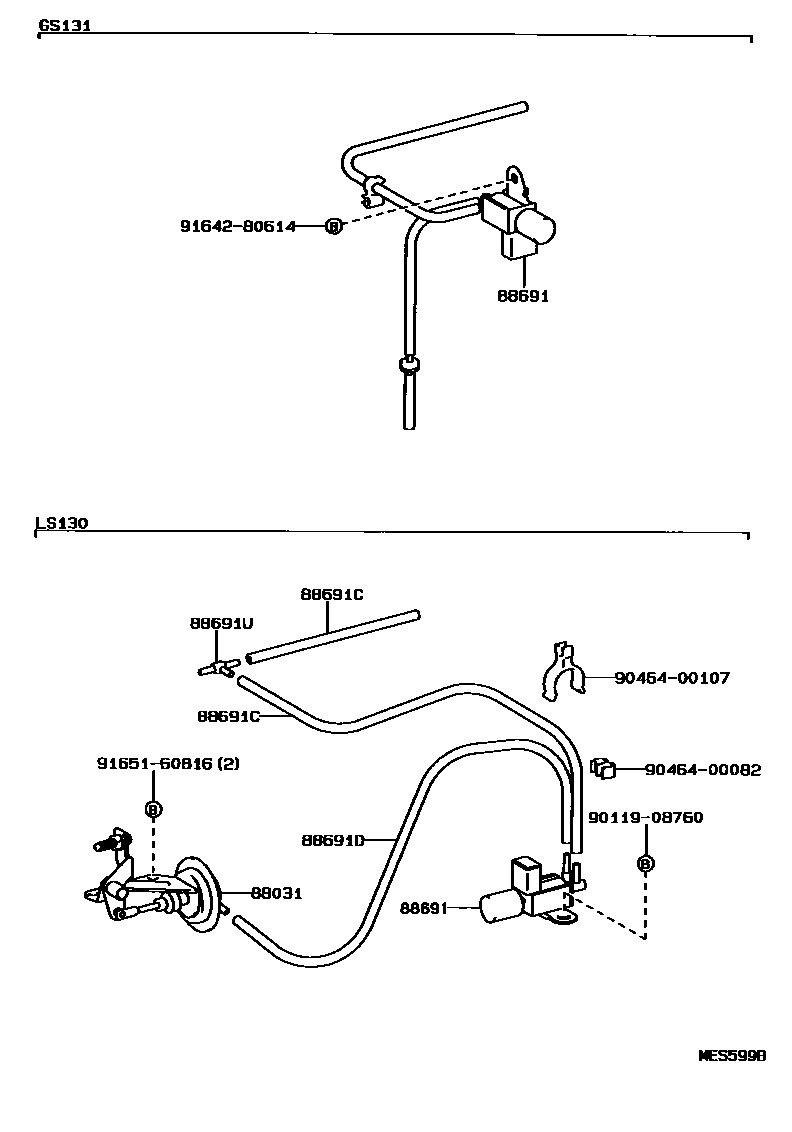

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-25020iLS130..4H199110-199201

FRONT MANUAL *AIC

main88031-28010iYS132199110-199512

main88031-30060iLS130..LHD199201-199308

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-22490iGS131199110

main88690-30750iLS130..4H199505-199512

FRONT SEMI AIR CONDITIONER

main88690-30810iLS130..4H199110-199308

FRONT MANUAL *AIC

main88691-30470iYS132199110-199512

main88691-90K02iLS130199308-199512

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iLS130..4F; LS130..4H199308-199505

*H,L=180,MARK=#*; *H,L=180,MARK=#*,FRONT SEMI AIR CONDITIONRER (MAKER OPTION)

main90999-92003iYS132199110-199512

*H,L=510,MARK=#0

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main90999-92003iLS130199110-199505

*H,L=480,MARK=#*

88691UWAY(FOR VACUUM HOSE)

main90413-04001iLS130199110-199512

9011908760

main90119-08760

9046400082

main90464-00082

9046400107

main90464-00107

9164280614

main91642-80614

9165160816

main91651-60816

10 parts on this diagram · 2 diagrams in section
