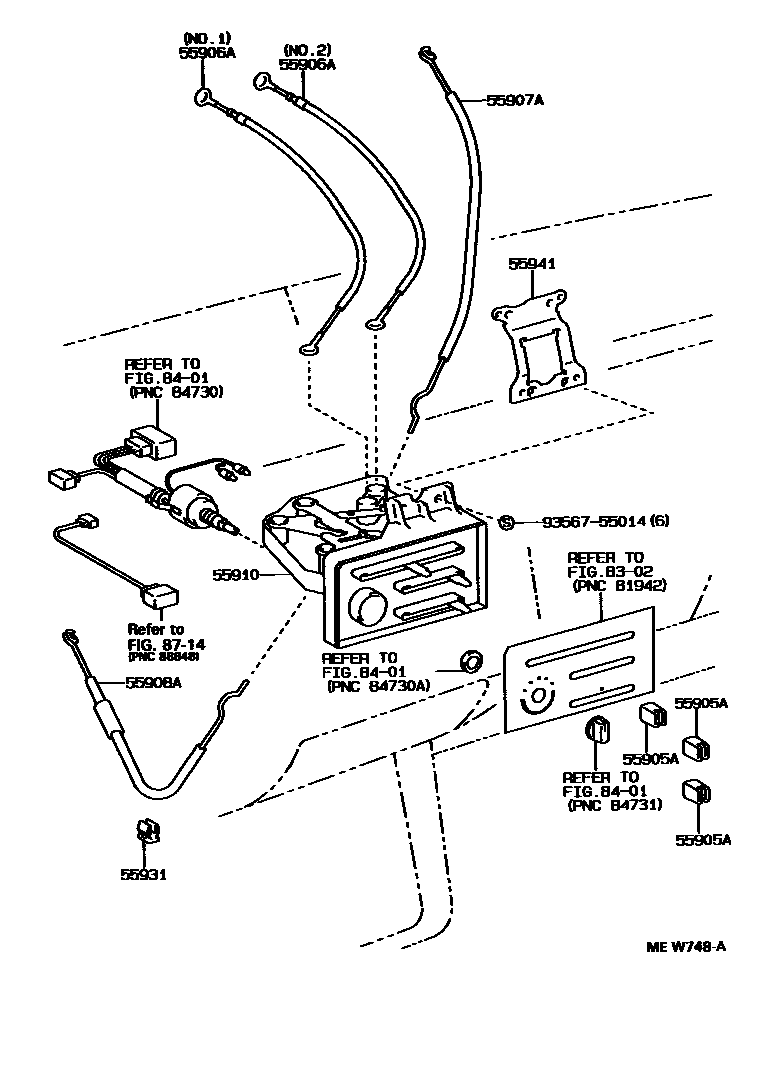

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE HEATER CONTROL PAN0002 1PUSH TYPE HEATER CONTROL PANE0003 1FRONT AIR DUCTS 0004 1AUTO AIR CONDITIONER SENSOR &0005 1REAR AIR DUCTS

55905AKNOB, HEATER CONTROL

main55905-30170×3iLS130..RHD199110-199512

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-30101iLS130..RHD199110-199512

NO.1

main55906-30111iLS130..RHD199110-199512

NO.2

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-30170iLS130..RHD199110-199512

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-30070iLS130..RHD199110-199512

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-30181iLS130..RHD199110-199512

55931CLAMP, HEATER CONTROL WIRE

main55933-10010×2iLS130..RHD199110-199512

55941BRACKET, HEATER CONTROL

main55938-30020iLS130..RHD199110-199512

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

9356755014

main93567-55014

11 parts on this diagram · 5 diagrams in section
