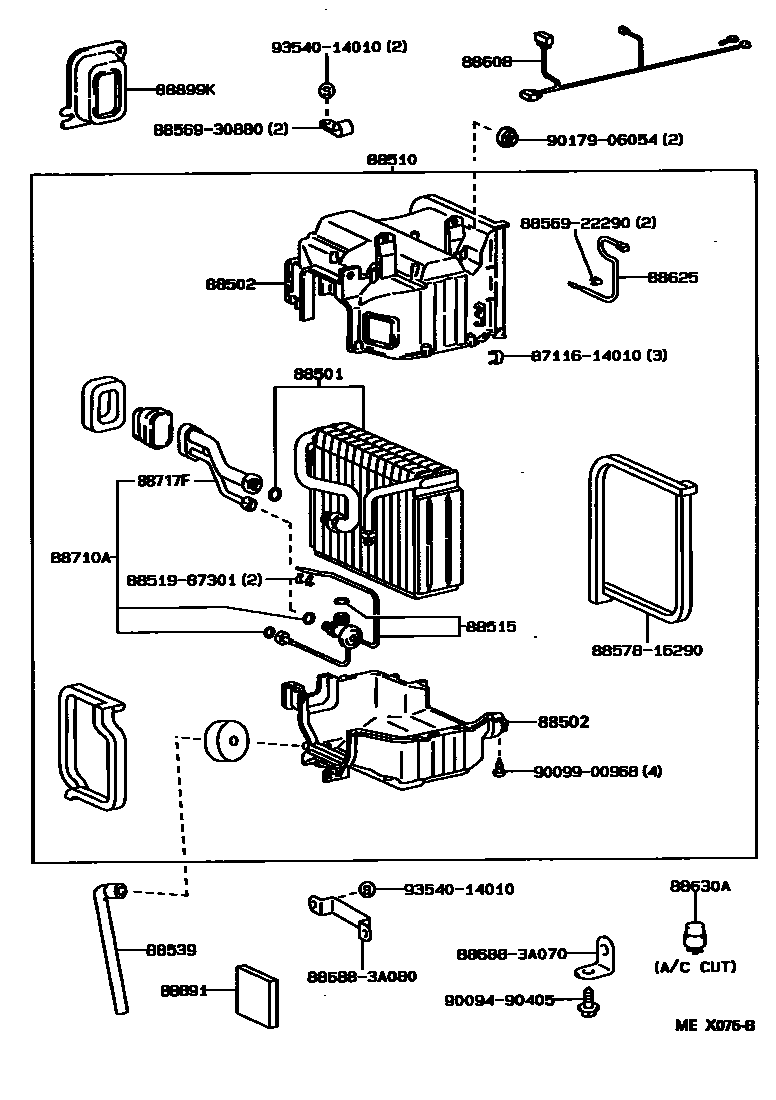

HEATING & AIR CONDITIONING - COOLER UNIT
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
FRONT MANUAL AIR CONDITIONER (SEMI-AUTO); FRONT SEMI AIR CONDITIONER
FRONT AUTO AIR CONDITIONER; FRONT MANUAL AIR CONDITIONER (SEMI-AUTO)
FRONT SEMI AIR CONDITIONER
FRONT SEMI AIR CONDITIONER
88502CASE SUB-ASSY, COOLING UNIT
UPPER
LOWER
88510UNIT ASSY, COOLER
FRONT MANUAL AIR CONDITIONER (SEMI-AUTO)
COLD SPEC
FRONT MANUAL AIR CONDITIONER (SEMI-AUTO)
FRONT SEMI AIR CONDITIONER
FRONT AUTO AIR CONDITIONER
FRONT SEMI AIR CONDITIONER
FRONT SEMI AIR CONDITIONER (DEALER OPT)
88515VALVE, COOLER EXPANSION
FRONT SEMI AIR CONDITIONER(MAKER OPTION)
W(AUTOMATIC AIR CONDITIONER)
FRONT MANUAL *AIC
FRONT SEMI AIR CONDITIONER(MAKER OPTION)
FRONT SEMI AIR CONDITIONER(DEALER OPTION)
88539HOSE, COOLER UNIT DRAIN, NO.1
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
REAR AIR CONDITIONER
FRONT SEMI AIR CONDITIONER (DEALER OPTION)
FRONT SEMI AIR CONDITIONRER (MAKER OPTION)
FRONT SEMI AIR CONDITIONRER (MAKER OPTION)
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
HOT AREA SPEC & W(REAR AIR CONDITIONER)
88630ARELAY ASSY, COOLER
REAR AIR CONDITIONER,HEATER
A/C CUT RELAY
88710ATUBE ASSY, AIR CONDITIONER
88717FPIPE, COOLER REFRIGERANT SUCTION, F
88891PACKING (FOR COOLER)
88899KPLATE, COVER
FRONT AUTO AIR CONDITIONER; FRONT MANUAL SEMI AUTO AIR CONDITIONER OR FRONT AUTO AIR CONDITIONER; FRONT SEMI *AIC OR FRONT MANUAL *AIC
8711614010SPRING, HEATER CASE FASTENING
main87116-14010
8851987301HOLDER, REMOTE BULB
main88519-87301
8856922290CLAMP (FOR COOLER RELAY)
main88569-22290
8856930880CLAMP (FOR COOLER RELAY)
main88569-30880
8857816290PAKING, COOLER AIR DUCT
main88578-16290
886883A070BRACKET, COOLER DIAPHRAGM
main88688-3A070
886883A080BRACKET, COOLER DIAPHRAGM
main88688-3A080
9009490405
main90094-90405
9009900968
main90099-00968
9017906054
main90179-06054
9354014010
main93540-14010
24 parts on this diagram · 5 diagrams in section
