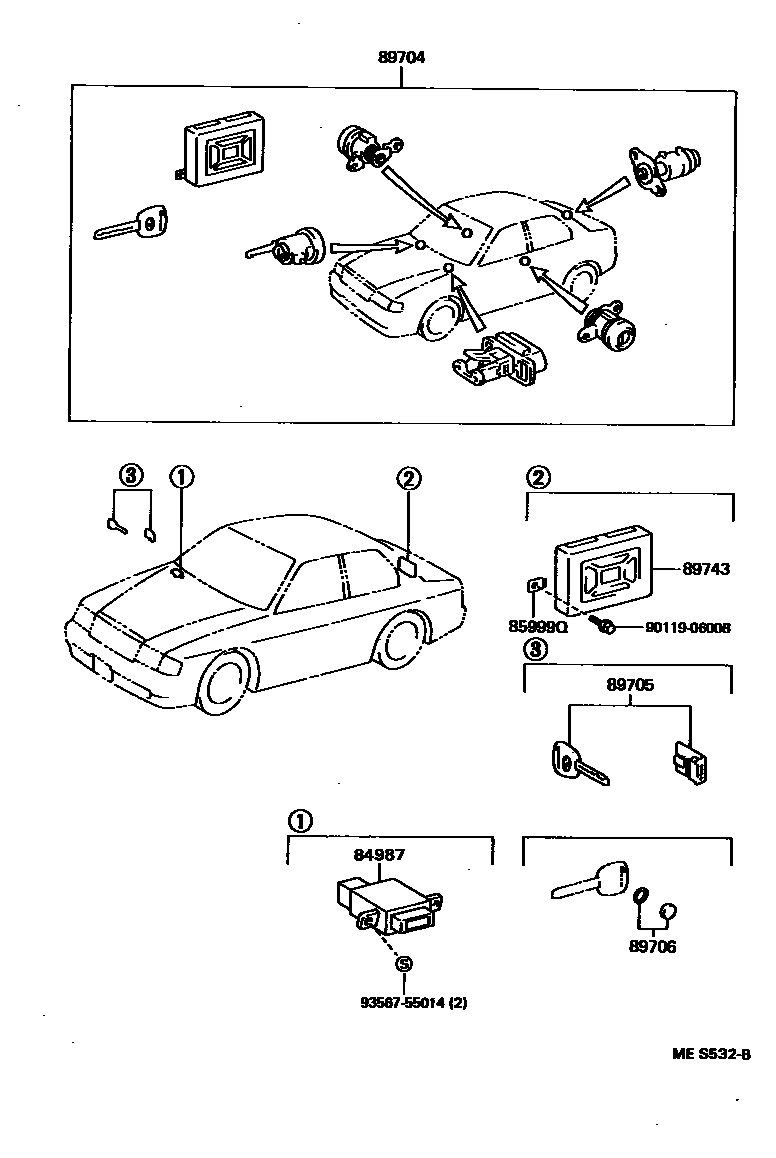

WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-30010iJZS133..EECC199110-199308

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-30320iJZS133..EECC199110-199308

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-30080iJZS133..EECC199110-199308

89705TRANSMITTER, DOOR CONTROL

main89705-30050iJZS133..EECC199110-199308

89706BATTERY SET, TRANSMITTER

main89706-50010iJZS133..EECC199110-199308

89743RECEIVER, DOOR CONTROL

main89743-30050iJZS133..EECC199110-199308

9011906008

main90119-06008

9356755014

main93567-55014

8 parts on this diagram · 1 diagram in section
