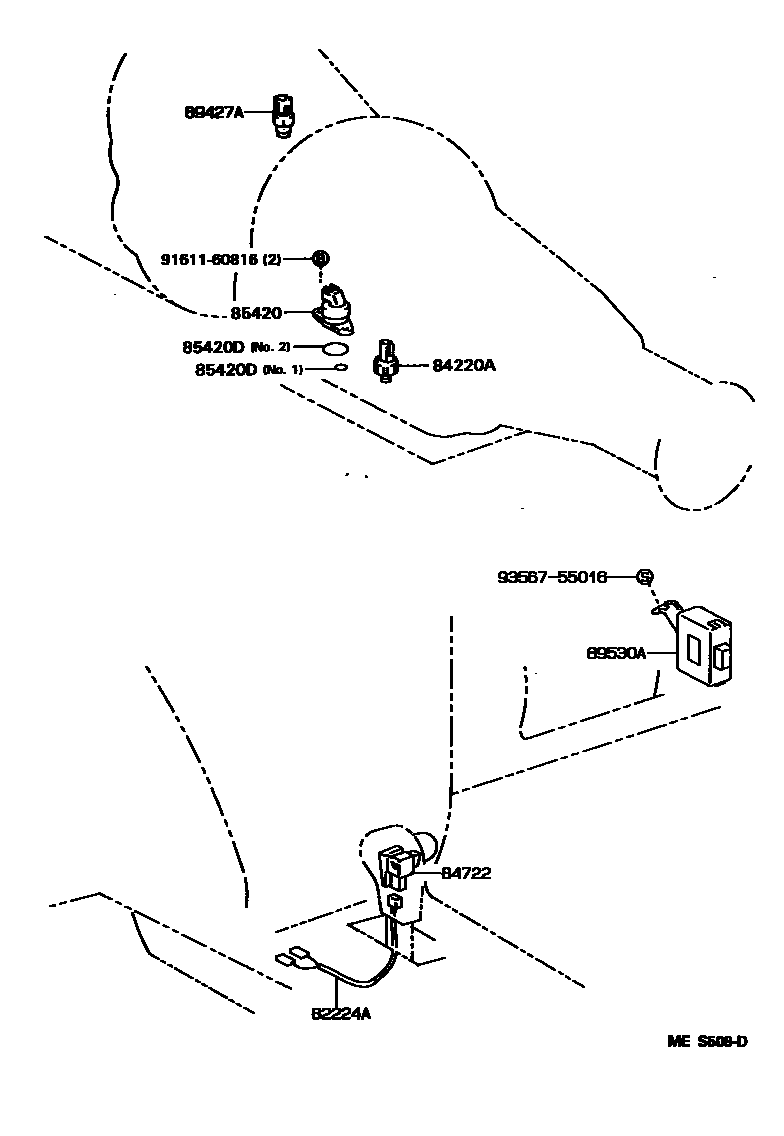

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82224AWIRE, OVERDRIVE

main82224-30030iGS131,JZS133..4FC199110-200104

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main83531-12010iGS131..Q199110

84722SWITCH, TRANSMISSION CONTROL

main84722-30160-E0iGS131,JZS133..LHD..4FC199110-199904

DK.ROSE,TRIM4#

main84722-30160-J0iJZS133..LHD..4FC199110-199512

DK.BLUE,TRIM8#

main84722-30170-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main84722-30170-E1iGS131,JZS133..RHD..4FC199110-200104

DK.ROSE,TRIM4#

main84722-30170-J0iGS131,JZS133..RHD..4FC199110-199912

DK.BLUE,TRIM8#

85420SOLENOID ASSY, TRANSMISSION

main85420-21090×2iJZS133..Q199809-200104

DENSO,SHIFT SOLENOID

main85420-21100×2iJZS133..Q199809-200104

AISIN,SHIFT SOLENOID

main85420-22080×2iJZS133..4FC..(GCC,GEN)199110-199308

SHIFT

main85420-30110iJZS133..4FC..(GCC,GEN)199110-199308

LOCK UP,AISIN

main85420-30120iJZS133..4FC..(GCC,GEN)199110-199308

LOCK UP,NIPPONDENSO

main85420-30160iGS131..Q199110-199308

main85420-30190iJZS133..RHD..Q199308-199512

SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC,LOCK UP SOLENOID

main85420-30200×2iJZS133..4FC199308-199809

SHIFT SOLENOID

main85420-30220iJZS133..4FC199308-199809

LOCK UP SOLENOID

main85420-30260iJZS133..Q199809-200104

DENSO,LOCK UP SOLENOID

main85420-30270iJZS133..Q199809-200104

AISIN,LOCK UP SOLENOID

main85420-50020×2iJZS133..RHD..4FC..GEN..Q199210-199308

SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iJZS133..4FC199308-199502

main90301-11001iGS131..Q199110-199904

INNER

main90301-23001iGS131..Q199110-199904

OUTER

89427ASWITCH, TEMPERATURE

main89428-30140iGS131..Q199110

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-30580iGS131..Q199110

9161160816

main91611-60816

9356755016

main93567-55016

9 parts on this diagram · 3 diagrams in section
