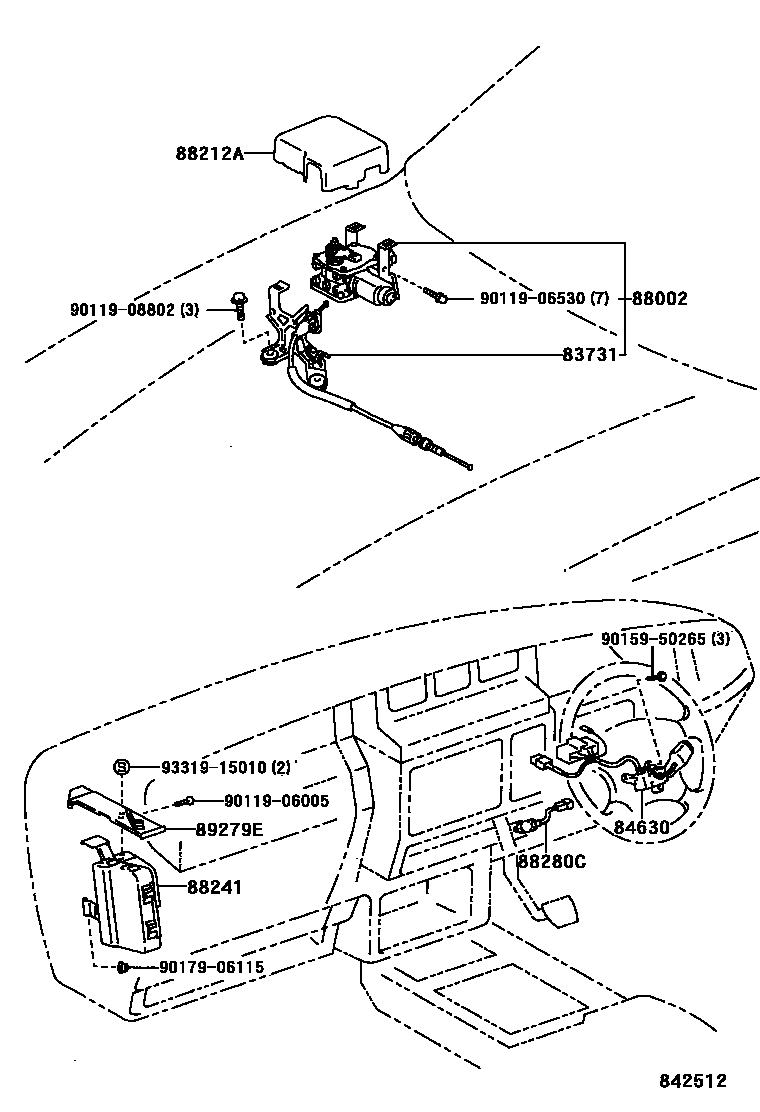

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

83731CABLE, CRUISE CONTROL

main83731-30120iJZS133..RHD..GEN..Q199110-199512

main83731-30130iJZS133..LHD..ROY199110-199512

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30100iJZS133..EECC199110-199308

main84630-30140iJZS133..EECC199110-199210

HONG KONG SPEC

88002CRUISE CONTROL(AUTO DRIVE) SET

main88002-30200iJZS133..RHD..GEN..Q199110-199512

main88002-30210iJZS133..LHD..ROY199110-199512

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-30140iJZS133..RHD..GEN..Q199110-199512

main88212-30150iJZS133..LHD..ROY199110-199512

88241COMPUTER, SPEED CONTROL

main88241-30130iJZS133..RHD..GEN..Q199110-199308

main88241-30131iJZS133..RHD..Q199308-199512

main88241-30140iJZS133..LHD..ROY199110-199308

main88241-30141iJZS133..LHD..Q199308-199512

88280CSWITCH ASSY, CLUTCH

main88280-30030iJZS133..5F..ROY199110-199512

89279ECOVER, CRUISE CONTROL(AUTO DRIVE) COMPUTER

main89279-30070iJZS133..RHD..GEN..Q199110-199512

main89279-30080iJZS133..LHD..ROY199110-199512

9011906005

main90119-06005

9011906530

main90119-06530

9011908802

main90119-08802

9015950265

main90159-50265

9017906115

main90179-06115

9331915010

main93319-15010

13 parts on this diagram · 3 diagrams in section
