SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL SWITCHES 0008 1INSTRUMENT PANEL SWITCHES 0009 1INSTRUMENT PANEL SWITCHES 0010 1COWL RH 0011 1COWL RH 0012 1COWL LH 0013 1COWL LH 0014 1COMBINATION SWITCH 0015 1COMBINATION SWITCH 0016 1ROOF,DOOR & FRONT SEAT 0017 1REAR DOOR & FLOOR

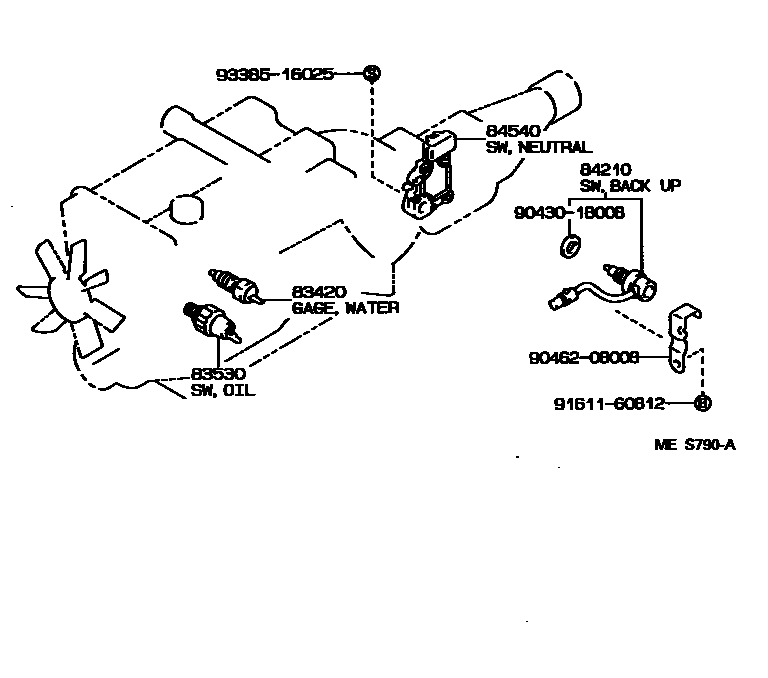

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iJZS133200103-200104

main83420-16040iLS130199208-200103

DENSO

main83420-20020iYS132199110-199308

main83420-20030iGS131,JZS133,LS130199208-199308

YAZAKI

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYS132199110-199308

sub83530-28030

main83530-14070iYS132199308-199512

sub83530-28010

main83530-28020iGS131,JZS133199803-200104

DENSO

main83530-30051iGS131199110-199211

sub83530-60050

main83530-30060iLS130199110-199512

sub83530-60030

main83530-30080iJZS133199110-199211

sub83530-60040

main83530-30090iGS131,JZS133199211-199803

YAZAKI

sub83530-60020

main83530-30090iGS131,JZS133199308-199803

sub83530-60020

main83530-30090iGS131,JZS133199211-199308

DENSO

sub83530-60020

main83530-60020iGS131,JZS133199803-200104

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGS131,JZS133,LS130,YS132..MTM199110-200104

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS133..4FC199308-200104

main84540-30270iJZS133..4FC199110-199308

TOKAIRIKA

main84540-30280iJZS133..4FC199110-199308

MATSUSHITA

sub84540-30270

main84540-30290iGS131..Q199110-199904

TOKAIRIKA

main84540-30300iGS131..Q199110-199904

MATSUSHITA

9043018008

main90430-18008

9046208008

main90462-08008

9161160812

main91611-60812

9338516025

main93385-16025

8 parts on this diagram · 17 diagrams in section
