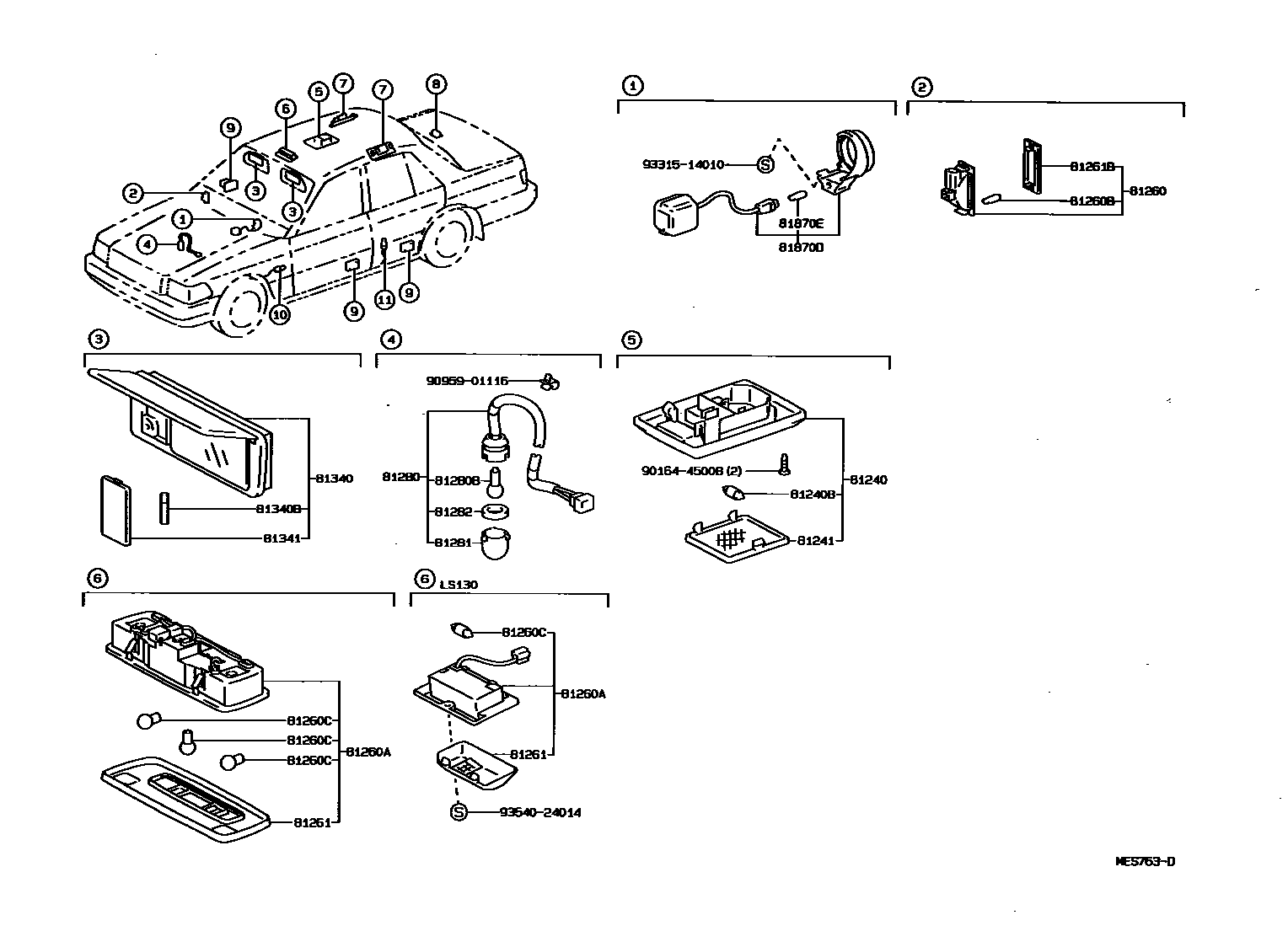

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-30100-J0iJZS133,LS130,YS132..B,D199110-199512

LI.BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iJZS133,LS130,YS132..B,D199110-199512

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-30100iJZS133,LS130,YS132..B,D199110-199512

81260LAMP ASSY, GLOVE BOX

main81260-50010iGS131,JZS133,LS130,YS132199110-200104

81260ALAMP ASSY, MAP

main81260-30120-J0iLS130..RHD..4F199110-199512

LI.BLUE,TRIM8#

main81260-30180-B0iJZS133..EECC199110-199308

LI.GRAY,TRIM1#

main81260-30180-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main81260-30180-J0iGS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G199110-200104

LI.BLUE,TRIM8#

81260BBULB(FOR GLOVE BOX)

main90981-11018iGS131,JZS133,LS130,YS132199110-200104

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12020iGS131,JZS133..ROY,SAL199110-200104

12V 8W

main90981-14006iLS130..RHD..4F199110-199512

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-22100-E0iGS131..RHD..G;JZS133..RHD..4FC..GEN..Q199112-199308

QUARTZ

main81261-22100-E0iGS131..RHD..G;JZS133..RHD..4FC..GEN..Q199112-199308

THAILAND(CKD),QUARTZ

main81261-30120iLS130..RHD..4F199110-199512

main81261-30180-B0iJZS133..EECC199110-199308

LI.GRAY,TRIM1#

main81261-30180-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main81261-30180-J0iGS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G199110-200104

LI.BLUE,TRIM8#

81261BLENS,GLOVE BOX LAMP

main81261-50010iGS131,JZS133,LS130,YS132199110-200104

81280LAMP ASSY, ENGINE ROOM

main81280-30041iLS130..RHD..4F199110-199112

main81280-30060iLS130..RHD..4F199112-199512

81280BBULB, ENGINE ROOM LAMP

main99132-13060iLS130..RHD..4F199110-199512

12V 6W

81281LENS, ENGINE ROOM LAMP

main81281-30010iLS130..RHD..4F199112-199512

81282PACKING, ENGINE ROOM LAMP LENS

main81282-30010iLS130..RHD..4F199112-199512

81340LAMP ASSY, VANITY

main81340-24030-B0iJZS133..EECC199110-199308

LI.GRAY,TRIM1#

main81340-24030-E0iGS131,JZS133..RHD..Q199110-200104

QUARTZ,TRIM4#

main81340-24030-J0iGS131,JZS133..RHD..Q199110-200104

LI.BLUE,TRIM8#

main81350-24010-E0iGS131,JZS133..LHD..Q199110-199904

QUARTZ,TRIM4#

main81350-24010-J0iJZS133..LHD..Q199110-199512

LI.BLUE,TRIM8#

81340BBULB (FOR VANITY LAMP)

main90981-14007iGS131,JZS133..Q199110-200104

12V 3W

81341LENS, VANITY LAMP

main81341-50010iGS131,JZS133..Q199110-200104

81870DLAMP ASSY, KEY CYLINDER

main81870-30080iJZS133..EECC199205-199305

SINGAPORE SPEC OR HONG KONG SPEC

main81870-30080iJZS133..EECC199110-199205

HONG KONG SPEC

main81870-30080iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-200104

main81870-30090iJZS133..EECC199110-199308

81870EBULB, KEY CYLINDER LAMP

main90981-11014iGS131,JZS133..ROY,SAL199110-200104

14V 1.4W

9016445008

main90164-45008

9095901116

main90959-01116

9331514010

main93315-14010

9354024014

main93540-24014

22 parts on this diagram · 2 diagrams in section
