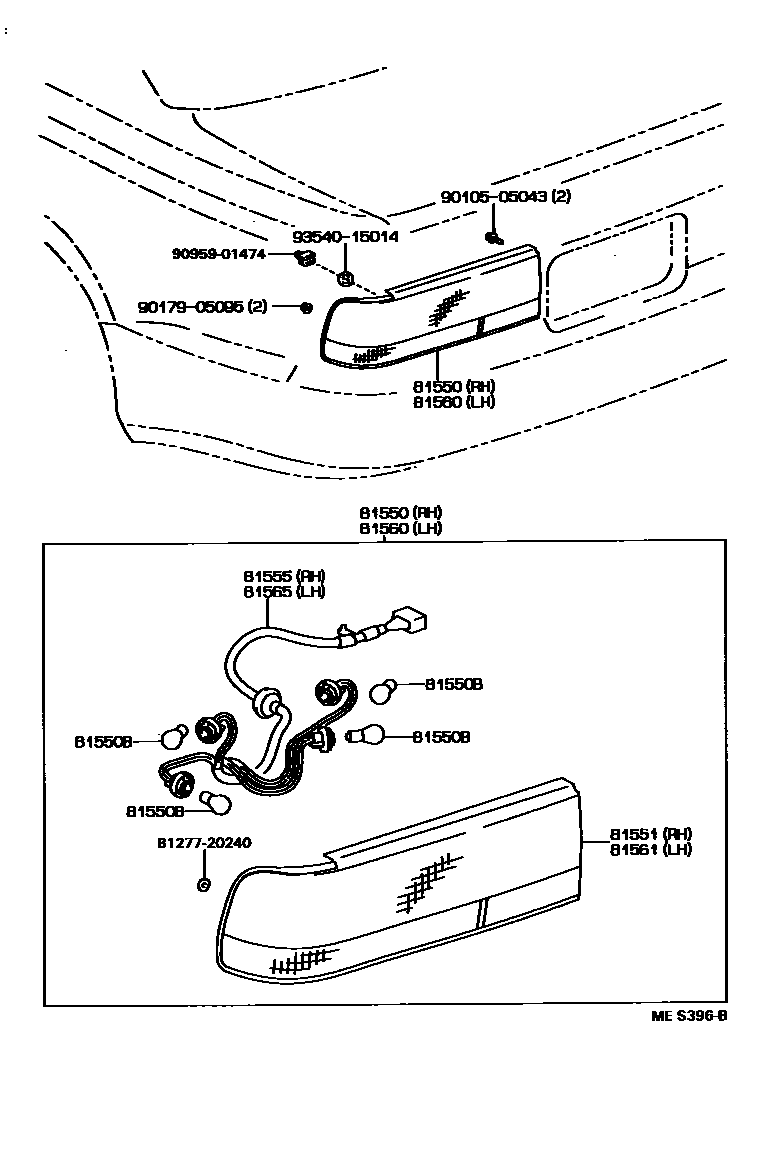

REAR COMBINATION LAMP

0001 1LICENSE PLATE LAMP(LOWER TYPE0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-30640iJZS133..4FC..Q;JZS133..5F..GCC..Q199408-199512

main81550-30650iJZS133..D,G;GS131,LS130,YS132; JZS133..GEN..Q199110-199308

LICENSE PLATE LAMP(LOWER TYPE)

main81550-30710iJZS133..D,G;GS131,LS130,YS132199308-199408

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iJZS133..4FC..Q;JZS133..5F..GCC..Q; JZS133..D,G;GS131,LS130,YS132;JZS133..5F..GEN..Q199408-199512

12V 21W

main99132-21210×4iGS131,JZS133,LS130,YS132199110-200104

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-30640iJZS133..4FC..Q;JZS133..5F..GCC..Q199408-199512

main81551-30650iJZS133..D,G;GS131,LS130,YS132; JZS133..GEN..Q199110-199308

LICENSE PLATE LAMP(LOWER TYPE)

main81551-30710iJZS133..4FC..GEN..Q199308-199512

LICENSE PLATE LAMP(LOWER TYPE)

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30640iJZS133..4FC..Q;JZS133..5F..GCC..Q199408-199512

main81555-30650iJZS133..D,G;GS131,LS130,YS132;JZS133..5F..GEN..Q199408-199512

81560LAMP ASSY, REAR COMBINATION, LH

main81560-30640iJZS133..ROY199110-199408

main81560-30650iJZS133..D,G;GS131,LS130,YS132; JZS133..GEN..Q199110-199308

LICENSE PLATE LAMP(LOWER TYPE)

main81560-30710iJZS133..D,G;GS131,LS130,YS132199308-199408

81561LENS, REAR COMBINATION LAMP, LH

main81561-30640iJZS133..4FC..Q;JZS133..5F..GCC..Q199408-199512

main81561-30650iJZS133..D,G;GS131,LS130,YS132; JZS133..GEN..Q199110-199308

LICENSE PLATE LAMP(LOWER TYPE)

main81561-30710iJZS133..D,G;GS131,LS130,YS132;JZS133..5F..GEN..Q199408-199512

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30640iJZS133..ROY199110-199408

main81565-30650iJZS133..D,G;GS131,LS130,YS132199110-199408

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9010505043

main90105-05043

9017905095

main90179-05095

9095901474

main90959-01474

9354015014

main93540-15014

12 parts on this diagram · 2 diagrams in section
