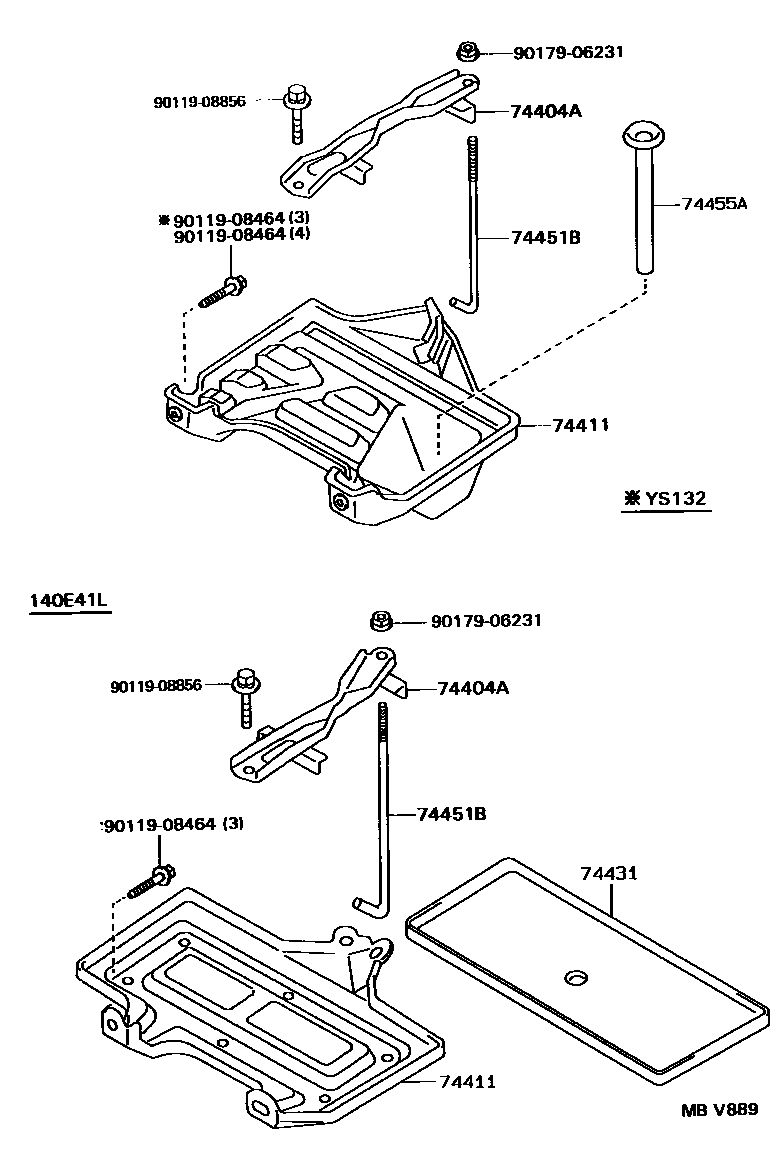

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30190iYS132199110-199512

main74404-30220iYS132199110-199512

W(55D23L) OR W(75D31L)

main74404-30230iLS130..RHD199110-199512

W(140E41L)

74411CARRIER, BATTERY

main74411-30250iLS130..RHD199110-199512

W(140E41L)

main74431-30080iYS132199110-199512

main74431-30090iYS132199110-199512

W(55D23L) OR W(75D31L)

74431TRAY, BATTERY

main74431-30010iLS130..RHD199110-199512

74451BBOLT, BATTERY CLAMP

main74451-30080iLS130..RHD199110-199512

W(140E41L)

main74451-30090iGS131,JZS133,LS130,YS132199110-200104

74455AHOSE, BATTERY DRAIN

main74455-30020iGS131,JZS133,LS130,YS132199110-199210

9011908464

main90119-08464

9011908856

main90119-08856

9017906231

main90179-06231

8 parts on this diagram · 1 diagram in section
