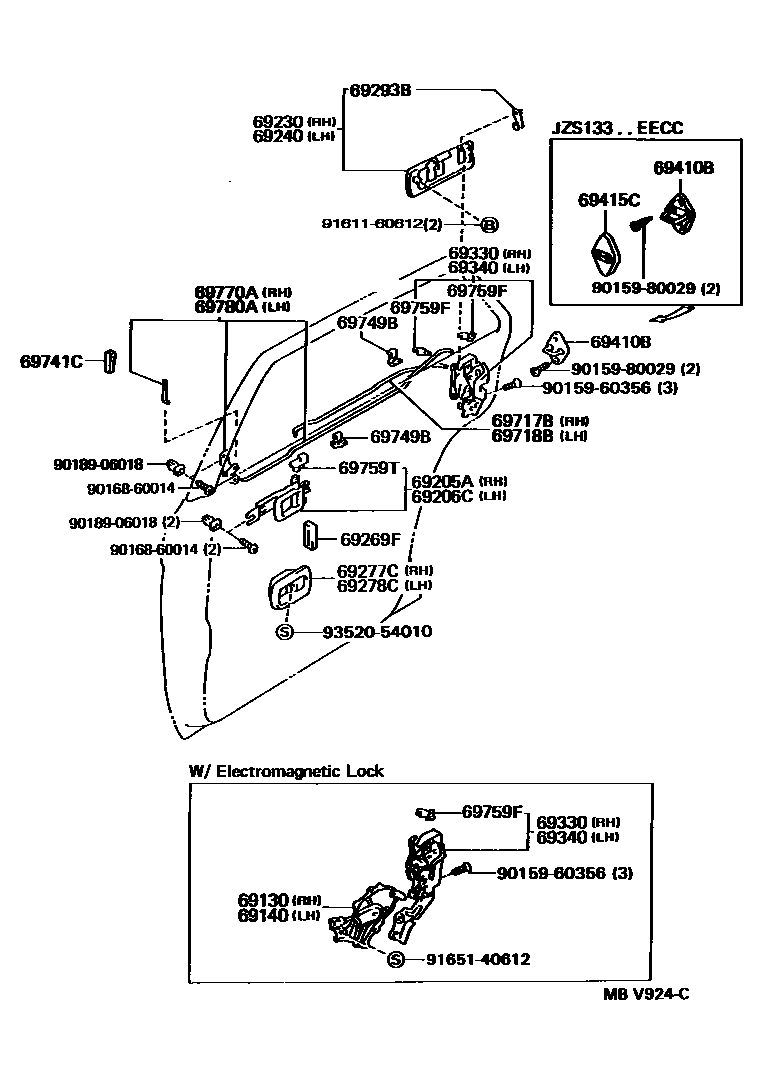

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-30060iJZS133,LS130..(4H,5F)..(B,D)199110-199512

main69130-30070iGS131,JZS133..ROY,SAL199110-200104

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-30060iJZS133,LS130..(4H,5F)..(B,D)199110-199512

main69140-30070iGS131,JZS133..ROY,SAL199110-200104

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30041iGS131,JZS133,LS130,YS132199110-200104

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30041iGS131,JZS133,LS130,YS132199110-200104

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30090iGS131,JZS133,LS130,YS132199110-200104

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30070iGS131,JZS133,LS130,YS132199110-200104

69269FSEAL, REAR DOOR INSIDE HANDLE

main69269-30010×2iJZS133..EECC199110-199308

COLD AREA SPEC

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69277-30060-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69277-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69277-30060-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69277-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iGS131,JZS133,LS130,YS132199110-200104

RH

main69293-12060iGS131,JZS133,LS130,YS132199110-200104

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-30410iJZS133..D; LS130,YS132..4F; LS130..4H199110-199512

TAXI SPEC FOR SAUDI; W/O(MOTOR)

main69330-30420iGS131,JZS133,LS130..4FC,4H,5F199110-200104

69340LOCK ASSY, REAR DOOR, LH

main69340-30410iJZS133..D; LS130,YS132..4F; LS130..4H199110-199512

TAXI SPEC FOR SAUDI; W/O(MOTOR)

main69340-30420iGS131,JZS133,LS130..4FC,4H,5F199110-200104

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-50010×2iJZS133..EECC199110-199308

main69410-87001×2iGS131,JZS133,LS130,YS132..GCC,GEN199110-200104

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-50010×2iJZS133..EECC199110-199308

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-30080iGS131,JZS133,LS130,YS132199110-200104

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-30080iGS131,JZS133,LS130,YS132199110-200104

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-30030-B0×2iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69741-30030-E0×2iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69741-30030-J0×2iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30020×6iGS131,JZS133,LS130,YS132199110-200104

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050×2iGS131,JZS133,LS130,YS132199110-200104

GREEN

main69759-24060×2iGS131,JZS133,LS130,YS132199110-200104

GRAY

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-24010iGS131,JZS133,LS130,YS132199110-200104

NATURAL

main69759-24020iGS131,JZS133,LS130,YS132199110-200104

BLUE

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-30130iJZS133..D; LS130,YS132199110-199512

TAXI SPEC FOR SAUDI

main69770-30180iGS131,JZS133199110-200104

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-30100iJZS133..D; LS130,YS132199110-199512

TAXI SPEC FOR SAUDI

main69780-30120iGS131,JZS133199110-200104

9015960356

main90159-60356

9015980029

main90159-80029

9016860014

main90168-60014

9018906018

main90189-06018

9161160612

main91611-60612

9165140612

main91651-40612

9352054010

main93520-54010

29 parts on this diagram · 1 diagram in section
