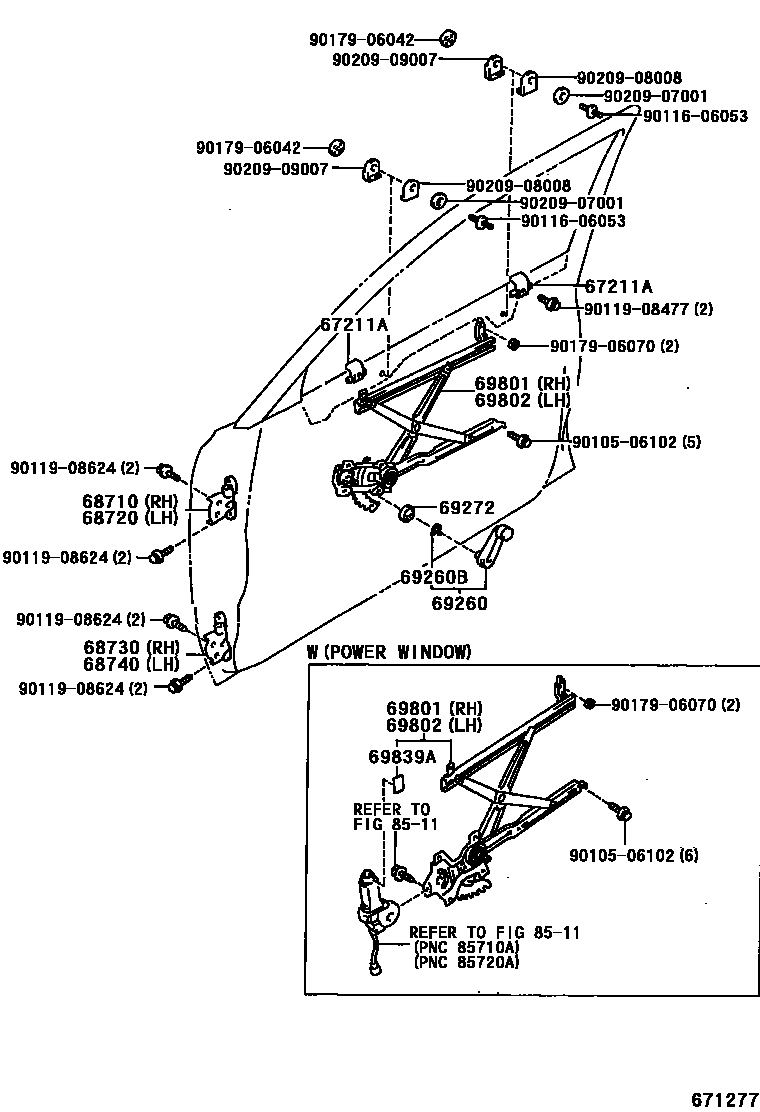

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30090×2iGS131,JZS133,LS130,YS132199110-199305

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30090iLS130..RHD;GS131,JZS133..ROY,SAL199110-199308

main68710-30120iYS132199308-199512

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30030iGS131,JZS133,LS130,YS132199110-200104

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30080iLS130..RHD;GS131,JZS133..ROY,SAL199110-199308

main68730-30090iLS130..RHD199110-199512

W/O(SIDE PROTECTION MOULDING)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30050iGS131,JZS133,LS130,YS132199110-200104

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-W3×2iJZS133..D; LS130,YS132199110-199512

DK.BLUE,TRIM8#; TAXI SPEC FOR SAUDI,DK.BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iJZS133..D; LS130,YS132199110-199512

TAXI SPEC FOR SAUDI

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iJZS133..D; LS130,YS132199110-199512

NATURAL WHITE,TRIM8#; TAXI SPEC FOR SAUDI,NATURAL WHITE,TRIM8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30171iGS131,JZS133199110-200104

main69810-30251iJZS133..D; LS130,YS132199110-199512

TAXI SPEC FOR SAUDI

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30171iGS131,JZS133199110-200104

main69820-30231iJZS133..D; LS130,YS132199110-199512

TAXI SPEC FOR SAUDI

69839APAD, FRONT DOOR WINDOW REGULATOR

main69839-95800×2iGS131,JZS133199110-200104

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506102

main90105-06102

9011606053

main90116-06053

9011908477

main90119-08477

9011908624

main90119-08624

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

21 parts on this diagram · 1 diagram in section
