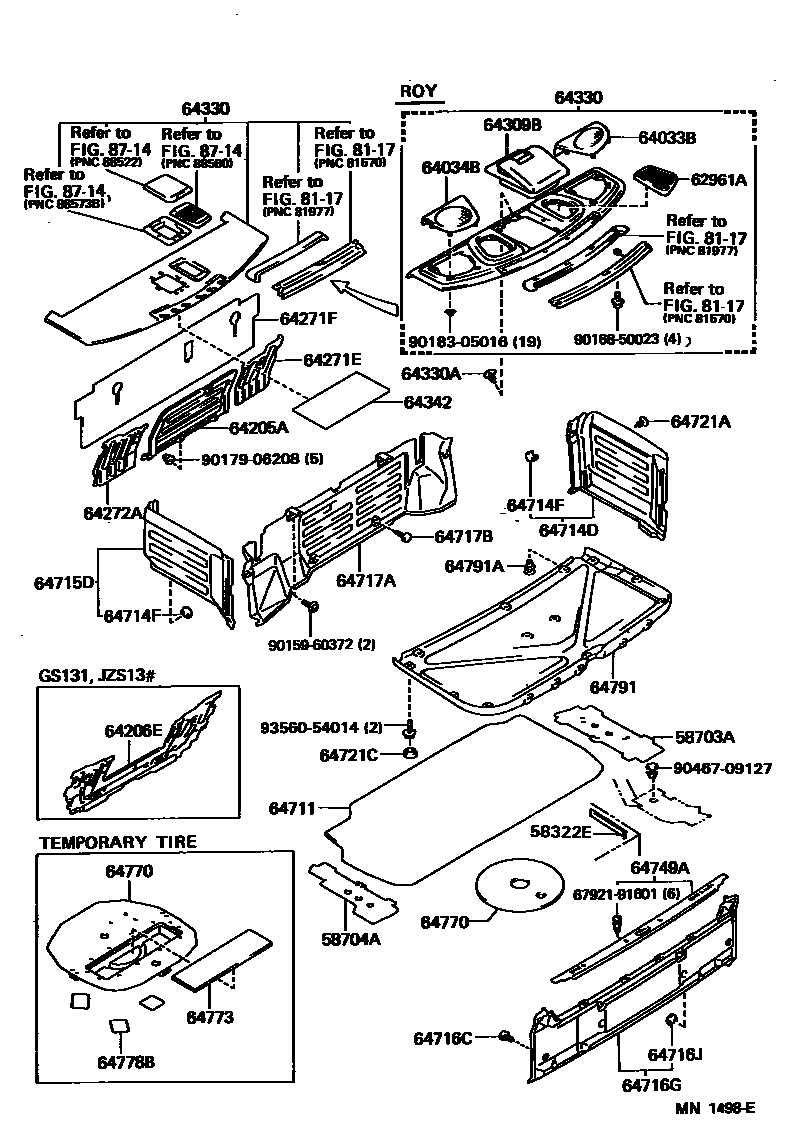

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58322EINSULATOR, REAR FLOOR HEAT, NO.2

main58322-30050iGS131,JZS133199110-200104

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-30070iJZS133,LS130,YS132199110-199308

main58703-30071iJZS133,LS130,YS132199308-199512

main58703-30080iJZS133..EECC199110-199512

W(CD AUTO CHANGER & ELECTRO MULTIVISION)

main58703-30090iGS131199110-199308

main58703-30091iGS131199308-200104

main58703-30091iJZS133..RHD..Q199506-199512

INDONESIA SPEC

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-30080iGS131,JZS133,LS130,YS132199110-200104

62961AGRILLE, ROOM VENT, RH

main62961-30010-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

sub62961-30010

main62961-30010-E0iGS131,JZS133..Q199110-200104

QUARTZ,TRIM4#

sub62961-30010

main62961-30010-J0iJZS133..Q;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

sub62961-30010

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-30050-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main64033-30050-E0iGS131,JZS133..Q199110-200104

QUARTZ,TRIM4#

main64033-30050-J0iJZS133..Q;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-30010-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main64034-30010-E0iGS131,JZS133..Q199110-200104

QUARTZ,TRIM4#

main64034-30010-J0iJZS133..Q;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

64205ACOVER SUB-ASSY, ROOM PARTITION

main64205-30020iGS131,JZS133199110-200104

main64205-30030iLS130,YS132199110-199512

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-30011iGS131..G;JZS133..GCC,GEN199110-200104

main64206-30021iJZS133..(GCC,GEN)..Q199110-199512

W(REAR POWER SEAT)

main64206-30021iGS131,JZS133..Q199512-200104

64271EPANEL, ROOM PARTITION

main64271-30130iLS130,YS132199110-199512

64271FTRIM, ROOM PARTITION

main64271-30120iGS131,JZS133,LS130,YS132199110-200104

64272APANEL, ROOM PARTITION, LH

main64272-30030iLS130,YS132199110-199512

64309BPOCKET SUB-ASSY, PACKAGE TRAY TRIM

main64309-30030-B1iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main64309-30030-E1iGS131,JZS133..Q199110-200104

QUARTZ,TRIM4#

main64309-30030-J1iJZS133..Q;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-3A070-B1iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main64330-3A070-E1iGS131,JZS133..Q199110-200104

QUARTZ,TRIM4#

main64330-3A070-J1iJZS133..Q;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

main64330-3A090-E0iGS131,JZS133..G,J199110-199308

QUARTZ,TRIM4#

main64330-3A090-J2iGS131,JZS133..G,J199110-199308

DK.BLUE,TRIM8#

main64330-3A100-J0iJZS133,LS130,YS132..B,D199110-199303

DK.BLUE,TRIM8#

sub64330-3A100

main64330-3A100-J1iJZS133,LS130,YS132..B,D199303-199512

DK.BLUE,TRIM8#

sub64330-3A100

main64330-3A110-E0iGS131,JZS133..G,J199110-200104

W(REAR AIR CONDITIONER),QUARTZ,TRIM4#

sub64330-3A110

main64330-3A110-J0iGS131,JZS133..G,J199110-199303

W(REAR AIR CONDITIONER),DK.BLUE,TRIM8#

sub64330-3A110

main64330-3A110-J1iGS131,JZS133..G,J199303-199512

W(REAR AIR CONDITIONER),DK.BLUE,TRIM8#

sub64330-3A110

main64330-3A190-E0iGS131,JZS133..G199308-200104

QUARTZ,TRIM4#

sub64330-3A190

main64330-3A190-J1iGS131,JZS133..G199308-199512

DK.BLUE,TRIM8#

sub64330-3A190

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07121-C0iGS131,JZS133..GEN..Q199110-199308

BLACK,TRIM1#,4#,8#&050 ,176 ,183 ,202 ,6K2 ,8J5

sub90467-07121

sub90467-07207

main90467-07121-C0iJZS133..EECC199110-199308

BLACK,TRIM4#,8#&050 ,176 ,183 ,202 ,4H6 ,6K2 ,8J5

sub90467-07121

sub90467-07207

main90467-08056-C0iGS131199512-199904

BLACK,TRIM4#

sub90467-08056

main90467-08056-C0iJZS133..Q;GS131..RHD..Q199308-200104

BLACK,TRIM4#,8#

sub90467-08056

64342COVER, PACKAGE TRAY TRIM, UNDER

main64342-30020iGS131..Q199110-199512

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30350-C0iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

main64711-30350-C0iGS131,JZS133..(GCC,GEN)..Q199110-199512

BLACK,TRIM4#,8#

main64711-30350-C2iGS131,JZS133..GEN..Q199308-200104

BLACK,TRIM4#

main64711-30360-C0iJZS133..EECC199110-199308

W(CD AUTO CHANGER),BLACK,TRIM1#,4#,8#

sub64711-30350

main64711-30360-C0iJZS133..LHD..Q199308-199512

W(CD AUTO CHANGER),BLACK,TRIM4#,8#

sub64711-30350

main64711-30370-C0iGS131,JZS133..G,J199303-199512

BLACK,TRIM8#

sub64711-30350

sub64711-30370

main64711-30370-C0iGS131,JZS133..G,J199303-199512

BLACK,TRIM4#,8#

sub64711-30350

sub64711-30370

main64711-30370-C1iJZS133,LS130,YS132..B,D199110-199303

GRAPHITE,TRIM8#

sub64711-30350

sub64711-30370

main64711-30370-C1iGS131,JZS133..G,J199110-199303

GRAPHITE,TRIM4#,8#

sub64711-30350

sub64711-30370

main64711-30370-C2iJZS133..G199512-200104

BLACK,TRIM4#

sub64711-30350

sub64711-30370

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-30200-C2iJZS133,LS130,YS132..B,D199110-199512

BLACK,TRIM8#

sub64714-30200

main64714-30200-C2iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

sub64714-30200

main64714-30200-C2iJZS133,LS130,YS132..B,D199110-199512

BLACK,TRIM4#,8#

sub64714-30200

main64714-30200-C2iGS131,JZS133199512-200104

BLACK,TRIM4#

sub64714-30200

main64714-30210-C0iJZS133..EECC199110-199308

W(CD AUTO CHANGER),BLACK,TRIM1#,4#,8#

main64714-30250-C0iJZS133..LHD..Q199308-199512

W(CD AUTO CHANGER),BLACK,TRIM4#,8#

64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90950-01436-C1iJZS133..EECC199110-199308

GRAPHITE,TRIM1#,4#,8#

sub90950-01436

sub64353-50010

main90950-01436-C1iJZS133,LS130,YS132..B,D199110-199512

GRAPHITE,TRIM8#

sub90950-01436

sub64353-50010

main90950-01436-C1iGS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G199110-200104

GRAPHITE,TRIM4#,8#

sub90950-01436

sub64353-50010

main90950-01436-C1iGS131;JZS133..G199512-200104

GRAPHITE,TRIM4#

sub90950-01436

sub64353-50010

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30170-C2iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-199512

BLACK,TRIM4#,8#

sub64715-30170

main64715-30170-C2iJZS133,LS130,YS132..B,D199110-199512

BLACK,TRIM8#

sub64715-30170

main64715-30170-C2iGS131,JZS133199512-200104

BLACK,TRIM4#

sub64715-30170

main64715-30170-C2iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

sub64715-30170

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05112-C0iJZS133,LS130,YS132..B,D199110-199208

GRAPHITE,TRIM8#

main90467-05112-C0iJZS133..EECC199110-199208

GRAPHITE,TRIM1#,4#,8#

main90467-05112-C0iJZS133..EECC199110-199208

GRAPHITE,TRIM4#,8#

main90467-05125-C0iGS131..RHD;JZS133..4FC;GS131,JZS133..LHD..5F..(G,Q)199406-200104

BLACK,TRIM4#,8#

sub90467-05125

main90467-05125-C0iGS131;JZS133..G199512-200104

BLACK,TRIM4#

sub90467-05125

main90467-05125-C0iJZS133,LS130,YS132..B,D199406-199512

BLACK,TRIM8#

sub90467-05125

main90904-67017-C0iJZS133..EECC199208-199308

GRAPHITE,TRIM1#,4#,8#

sub90904-67017

main90904-67017-C0iJZS133,LS130,YS132..B,D199208-199406

GRAPHITE,TRIM4#,8#

sub90904-67017

main90904-67017-C0iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199208-199406

GRAPHITE,TRIM8#

sub90904-67017

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-30170-C2iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-199512

BLACK,TRIM8#

sub64716-30170

main64716-30170-C2iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

sub64716-30170

main64716-30170-C2iJZS133,LS130,YS132..B,D199110-199512

BLACK,TRIM4#,8#

sub64716-30170

main64716-30170-C2iGS131,JZS133199512-200104

BLACK,TRIM4#

sub64716-30170

64716JPLUG, HOLE(FOR LUGGAGE COMPARTMENT REAR COVER)

main90950-01436-C1iGS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G199110-200104

GRAPHITE,TRIM4#,8#

sub90950-01436

sub64353-50010

main90950-01436-C1iGS131;JZS133..G199512-200104

GRAPHITE,TRIM4#

sub90950-01436

sub64353-50010

main90950-01436-C1iJZS133,LS130,YS132..B,D199110-199512

GRAPHITE,TRIM8#

sub90950-01436

sub64353-50010

main90950-01436-C1iJZS133..EECC199110-199308

GRAPHITE,TRIM1#,4#,8#

sub90950-01436

sub64353-50010

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30210-C2iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-199512

BLACK,TRIM8#

sub64717-30210

main64717-30210-C2iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-199512

BLACK,TRIM4#,8#

sub64717-30210

main64717-30210-C2iGS131,JZS133199512-200104

BLACK,TRIM4#

sub64717-30210

main64717-30210-C2iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

sub64717-30210

main64717-30230-C0iJZS133..EECC199110-199308

W(CD AUTO CHANGER),BLACK,TRIM1#,4#,8#

sub64717-30210

main64717-30260-C0iJZS133..LHD..Q199308-199512

W(CD AUTO CHANGER),BLACK,TRIM4#,8#

sub64717-30210

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07121-C0iGS131,JZS133..(ROY,SAL)..(GCC,GEN)199110-199308

BLACK,TRIM1#,4#,8#&050 ,176 ,183 ,202 ,6K2 ,8J5

sub90467-07121

sub90467-07207

main90467-07121-C0iJZS133..EECC199110-199308

BLACK,TRIM8#&050 ,176 ,183 ,202 ,8J5

sub90467-07121

sub90467-07207

main90467-07121-C0iJZS133..EECC199110-199308

BLACK,TRIM4#,8#&050 ,176 ,183 ,202 ,4H6 ,6K2 ,8J5

sub90467-07121

sub90467-07207

main90467-07121-C0iJZS133,LS130,YS132..B,D199308-199512

BLACK,TRIM8#

sub90467-07121

sub90467-07207

main90467-07121-C0iGS131..RHD;JZS133..4FC;GS131,JZS133..LHD..5F..(G,Q)199308-200104

BLACK,TRIM4#,8#

sub90467-07121

sub90467-07207

main90467-07121-C0iGS131;JZS133..G199512-200104

BLACK,TRIM4#

sub90467-07121

sub90467-07207

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05112-C0iJZS133..EECC199110-199301

GRAPHITE,TRIM1#,4#,8#

main90467-05125-C0iJZS133..LHD..Q199406-199512

BLACK,TRIM4#,8#

sub90467-05125

main90904-67017-C0iJZS133..EECC199301-199308

GRAPHITE,TRIM1#,4#,8#

sub90904-67017

main90904-67017-C0iJZS133..LHD..Q199308-199406

GRAPHITE,TRIM4#,8#

sub90904-67017

64721CCLIP(LUGGAGE COMPARTMENT)

main90339-10008-C0iJZS133..EECC199110-199212

GRAPHITE,TRIM1#,4#,8#

sub90339-10008

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-30080-C0iJZS133..EECC199110-199308

GRAPHITE,TRIM1#,4#,8#

main64749-30080-C0iJZS133,LS130,YS132..B,D199110-199512

GRAPHITE,TRIM8#

main64749-30080-C0iGS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G199110-200104

GRAPHITE,TRIM4#,8#

main64749-30080-C0iGS131;JZS133..G199512-200104

GRAPHITE,TRIM4#

64770COVER ASSY, SPARE WHEEL

main64770-30050iLS130,YS132199110-199512

main64770-30071iJZS133..EECC199110-199308

main64770-30100iJZS133..EECC199110-199308

W(SPARE TIRE=STD SIZE)

main64770-30100iGS131,JZS133..GCC,GEN199110-200104

64773COVER, SPARE WHEEL, NO.2

main64773-30020iJZS133..EECC199110-199308

64778BPROTECTOR, SPARE WHEEL

main64778-14020iJZS133..EECC199110-199308

64791COVER, BACK DOOR TRIM

main64719-30080-C0iJZS133..EECC199110-199308

BLACK,TRIM1#,4#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-05105-C0iJZS133..EECC199208-199308

BLACK,TRIM1#,4#,8#

sub90467-05105

main90467-05112-C0iJZS133..EECC199110-199208

GRAPHITE,TRIM1#,4#,8#

8117

8714

6792191601RETAINER, FRONT DOOR SCUFF PLATE

main67921-91601

9015960372

main90159-60372

9016850023

main90168-50023

9017906208

main90179-06208

9018305016

main90183-05016

9046709127

main90467-09127

9356054014

main93560-54014

41 parts on this diagram · 1 diagram in section
