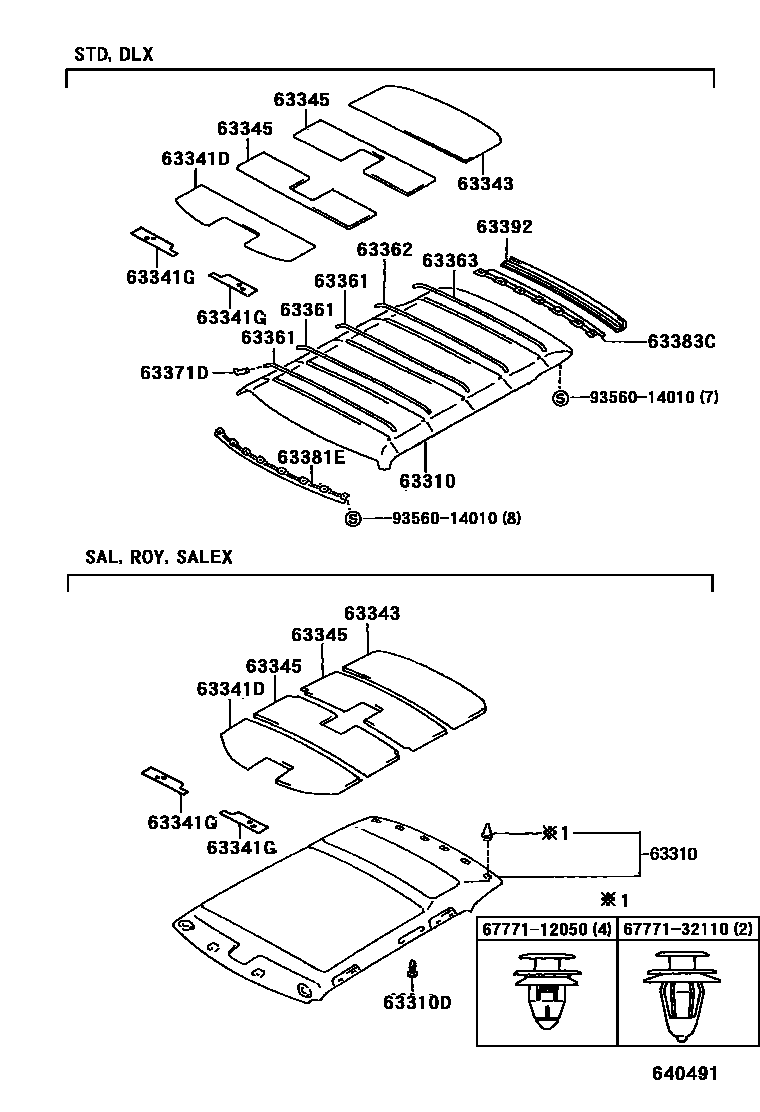

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-30580-B1iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main63310-30580-E1iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main63310-30580-J1iGS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G199110-200104

DK.BLUE,TRIM8#

main63310-30590-J0iJZS133,LS130,YS132..B,D199110-199512

DK.BLUE,TRIM8#

63310DCLIP, ROOF HEADLINING

main90467-08056-C0×2iGS131..RHD;JZS133..5F..ROY;JZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..G199110-200104

BLACK,TRIM4#,8#

63341DPAD, ROOF SILENCER, FRONT

main63341-30150iGS131,JZS133,LS130,YS132199110-200104

63341GPAD, ROOF SILENCER

main63341-30220iLS130..4H;LS130..LHD;GS131,JZS133,YS132199110-199308

RH

main63342-30150iLS130..4H;LS130..LHD;GS131,JZS133,YS132199110-199308

LH

63343PAD, ROOF SILENCER, NO.3

main63343-30130iGS131,JZS133,LS130,YS132199110-200104

63345PAD, ROOF SILENCER, NO.5

main63345-30070×2iGS131,JZS133,LS130,YS132199110-200104

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-30270×3iJZS133,LS130,YS132..B,D199110-199512

L=1045

main63361-30280×3iJZS133,LS130,YS132..B,D199110-199512

L=1022(RED)

main63361-30290×3iJZS133,LS130,YS132..B,D199110-199512

L=1025(GREEN)

main63361-30300×3iJZS133,LS130,YS132..B,D199110-199512

L=1028(BLUE)

main63361-30310×3iJZS133,LS130,YS132..B,D199110-199512

L=1036(YELLOW)

main63361-30320×3iJZS133,LS130,YS132..B,D199110-199512

L=1039(WHITE)

main63361-30330×3iJZS133,LS130,YS132..B,D199110-199512

L=1042(PURPLE)

main63361-30340×3iJZS133,LS130,YS132..B,D199110-199512

L=1047(PINK)

main63361-30350×3iJZS133,LS130,YS132..B,D199110-199512

L=1050(ORANGE)

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-30230iJZS133,LS130,YS132..B,D199110-199512

L=1030(GRAY)

main63362-30240iJZS133,LS130,YS132..B,D199110-199512

L=1033(BROWN)

main63362-30250iJZS133,LS130,YS132..B,D199110-199512

L=1036(GREEN)

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-30110iJZS133,LS130,YS132..B,D199110-199512

L=1030(BLACK)

main63363-30120iJZS133,LS130,YS132..B,D199110-199512

L=1033(BLUE)

main63363-30130iJZS133,LS130,YS132..B,D199110-199512

L=1036

63371DRETAINER, ROOF HEADLINING SUPPORT

main63371-30060×6iJZS133,LS130,YS132..B,D199110-199512

BLACK

main63371-30070×4iJZS133,LS130,YS132..B,D199110-199512

BLUE

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30080iJZS133,LS130,YS132..B,D199110-199512

63383CRETAINER, ROOF HEADLINING TRIM, REAR

main63383-30110iJZS133,LS130,YS132..B,D199110-199512

63392TRIM, ROOF HEADLINING, REAR

main63392-30100iJZS133,LS130,YS132..B,D199110-199512

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777132110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32110

9356014010

main93560-14010

16 parts on this diagram · 1 diagram in section
