INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

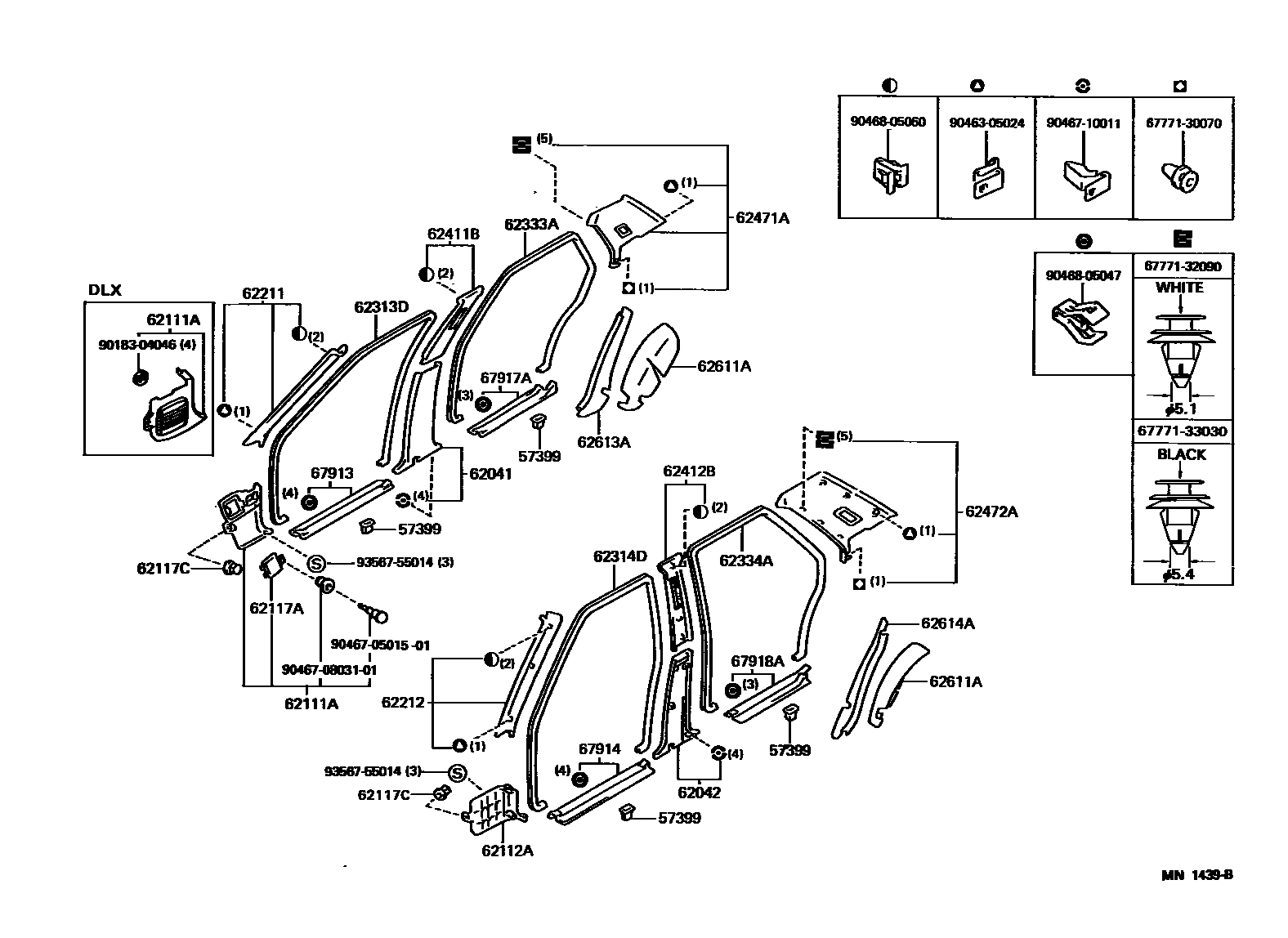

Parts diagram
57399COVER, FRONT STEP HOLE
main57399-24010×14i199110-200104
62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH
main62041-30050-B2i199110-199308
SHADOW GRAY,TRIM1#
main62041-30050-E5i199110-199308
QUARTZ,TRIM4#
main62041-30050-J5i199110-199308
DK.BLUE,TRIM8#
main62041-30051-E5i199308-200104
QUARTZ,TRIM4#
main62041-30051-J5i199308-200104
DK.BLUE,TRIM8#
main62413-30140-J5i199110-199512
DK.BLUE,TRIM8#
62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH
main62042-30050-B2i199110-199308
SHADOW GRAY,TRIM1#
main62042-30050-E5i199110-199308
QUARTZ,TRIM4#
main62042-30050-J5i199110-199308
DK.BLUE,TRIM8#
main62042-30051-E5i199308-200104
QUARTZ,TRIM4#
main62042-30051-J5i199308-200104
DK.BLUE,TRIM8#
main62414-30070-J5i199110-199512
DK.BLUE,TRIM8#
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-30290-J0i199110-199512
DK.BLUE,TRIM8#
main62101-30350-E0i199110-199512
QUARTZ,TRIM4#
main62101-30350-J0i199110-199512
DK.BLUE,TRIM8#
main62101-30370-E0i199110-200104
QUARTZ,TRIM4#
main62101-30370-J0i199110-199512
DK.BLUE,TRIM8#
main62101-30440-J0i199110-199512
DK.BLUE,TRIM8#
main62101-30450-B0i199110-199308
SHADOW GRAY,TRIM1#
main62101-30450-E0i199110-200104
QUARTZ,TRIM4#
main62101-30450-J0i199110-200104
DK.BLUE,TRIM8#
main62101-30460-E0i199110-199308
QUARTZ,TRIM4#
main62101-30460-E1i199308-199904
DK.ROSE,TRIM4#
main62101-30460-J0i199110-199308
DK.BLUE,TRIM8#
main62101-30460-J1i199308-199512
DK.BLUE,TRIM8#
main62111-30170-J0i199110-199512
DK.BLUE,TRIM8#
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-30280-J0i199110-199512
DK.BLUE,TRIM8#
main62102-30320-E0i199110-199512
QUARTZ,TRIM4#
main62102-30320-J0i199110-199512
DK.BLUE,TRIM8#
main62102-30360-E0i199110-200104
QUARTZ,TRIM4#
main62102-30360-J0i199110-199512
DK.BLUE,TRIM8#
main62102-30420-B0i199110-199308
SHADOW GRAY,TRIM1#
main62102-30420-E0i199110-200104
QUARTZ,TRIM4#
main62102-30420-J0i199110-200104
DK.BLUE,TRIM8#
main62102-30430-E0i199110-199904
QUARTZ,TRIM4#
main62102-30430-J0i199110-199512
DK.BLUE,TRIM8#
main62112-30180-J0i199110-199512
DK.BLUE,TRIM8#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-30032-B1i199110-199308
SHADOW GRAY,TRIM1#
main62117-30032-E1i199110-200104
QUARTZ,TRIM4#
main62117-30032-J0i199110-200104
DK.BLUE,TRIM8#
main62117-30041-E0i199110-199904
QUARTZ,TRIM4#
main62117-30041-J0i199110-199512
DK.BLUE,TRIM8#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-05050-01×2i199208-199211
BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22; BLACK,TRIM4#,8#,PLANT NO.M21,M22; BLACK,TRIM8#,PLANT NO.M21,M22
main90467-05050-22×2i199211-199308
BLACK,TRIM1#,4#,8#,PLANT NO.M21,M22; BLACK,TRIM4#,8#,PLANT NO.M21,M22; BLACK,TRIM8#,PLANT NO.M21,M22
main90467-06120×2i199208-199308
PLANT NO.A21-A26
62211GARNISH, FRONT PILLAR, RH
main62211-30260-B1i199110-199308
SHADOW GRAY,TRIM1#
main62211-30260-E1i199110-200104
QUARTZ,TRIM4#
main62211-30260-J1i199110-200104
DK.BLUE,TRIM8#
main62211-30280-E0i199110-200104
QUARTZ,TRIM4#
main62211-30280-J0i199110-199512
DK.BLUE,TRIM8#
main62211-30290-J0i199110-199512
LI.BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62212-30260-B1i199110-199308
SHADOW GRAY,TRIM1#
main62212-30260-E1i199110-200104
QUARTZ,TRIM4#
main62212-30260-J1i199110-200104
DK.BLUE,TRIM8#
main62212-30280-E0i199110-200104
QUARTZ,TRIM4#
main62212-30280-J0i199110-199512
DK.BLUE,TRIM8#
main62212-30290-J0i199110-199512
LI.BLUE,TRIM8#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-30160-J0i199110-199512
DK.BLUE,TRIM8#
62314DTRIM, FRONT DOOR OPENING, LH
main62314-30080-J0i199110-199512
DK.BLUE,TRIM8#
62333ATRIM, REAR DOOR OPENING, RH
main62333-30110-J0i199110-199512
DK.BLUE,TRIM8#
62334ATRIM, REAR DOOR OPENING, LH
main62334-30050-J0i199110-199512
DK.BLUE,TRIM8#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-30300-B1i199110-199308
SHADOW GRAY,TRIM1#
main62410-30300-E1i199110-200104
QUARTZ,TRIM4#
main62410-30300-J1i199110-200104
DK.BLUE,TRIM8#
main62411-30250-J1i199110-199512
DK.BLUE,TRIM8#
main62411-30260-E0i199110-200104
QUARTZ,TRIM4#
main62411-30260-J0i199110-199512
DK.BLUE,TRIM8#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-30250-J1i199110-199512
DK.BLUE,TRIM8#
main62412-30260-E0i199110-200104
QUARTZ,TRIM4#
main62412-30260-J0i199110-199512
DK.BLUE,TRIM8#
main62420-30290-B1i199110-199308
SHADOW GRAY,TRIM1#
main62420-30290-E1i199110-200104
QUARTZ,TRIM4#
main62420-30290-J1i199110-200104
DK.BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-30380-B2i199110-199308
SHADOW GRAY,TRIM1#
main62470-30380-E2i199110-200104
QUARTZ,TRIM4#
main62470-30380-J2i199110-200104
DK.BLUE,TRIM8#
main62470-30400-J0i199308-199512
LI.BLUE,TRIM8#
main62470-30400-J1i199110-199308
DK.BLUE,TRIM8#
main62471-30340-E0i199110-200104
QUARTZ,TRIM4#
main62471-30340-J0i199110-199512
DK.BLUE,TRIM8#
62472AGARNISH, ROOF SIDE, INNER LH
main62472-30300-E0i199110-200104
QUARTZ,TRIM4#
main62472-30300-J0i199110-199512
DK.BLUE,TRIM8#
main62480-30340-B2i199110-199308
SHADOW GRAY,TRIM1#
main62480-30340-E2i199110-200104
QUARTZ,TRIM4#
main62480-30340-J2i199110-200104
DK.BLUE,TRIM8#
main62480-30360-J0i199308-199512
LI.BLUE,TRIM8#
main62480-30360-J1i199110-199308
DK.BLUE,TRIM8#
62611APAD, QUARTER WHEEL HOUSE
main62611-30020×2i199110-200104
62613ACOVER, QUARTER WHEEL HOUSE, RH
main62610-30030i199110-199512
62614ACOVER, QUARTER WHEEL HOUSE, LH
main62620-30030i199512-200104
67913PLATE, FRONT DOOR SCUFF, RH
main67913-30160-B0i199110-199308
SHADOW GRAY,TRIM1#
main67913-30160-E0i199110-200104
QUARTZ,TRIM4#
main67913-30160-J0i199110-200104
DK.BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
main67913-30160-B0i199110-199308
SHADOW GRAY,TRIM1#
main67913-30160-E0i199110-200104
QUARTZ,TRIM4#
main67913-30160-J0i199110-200104
DK.BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-30110-B0i199110-199308
SHADOW GRAY,TRIM1#
main67917-30110-E0i199110-200104
QUARTZ,TRIM4#
main67917-30110-J0i199110-200104
DK.BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
main67918-30090-B0i199110-199308
SHADOW GRAY,TRIM1#
main67918-30090-E0i199110-200104
QUARTZ,TRIM4#
main67918-30090-J0i199110-200104
DK.BLUE,TRIM8#
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6777132090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32090
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030
9018304046
main90183-04046
9046305024
main90463-05024
904670501501
main90467-0501501
904670803101
main90467-0803101
9046710011
main90467-10011
9046805047
main90468-05047
9046805060
main90468-05060
9356755014
main93567-55014

35 parts on this diagram · 2 diagrams in section
