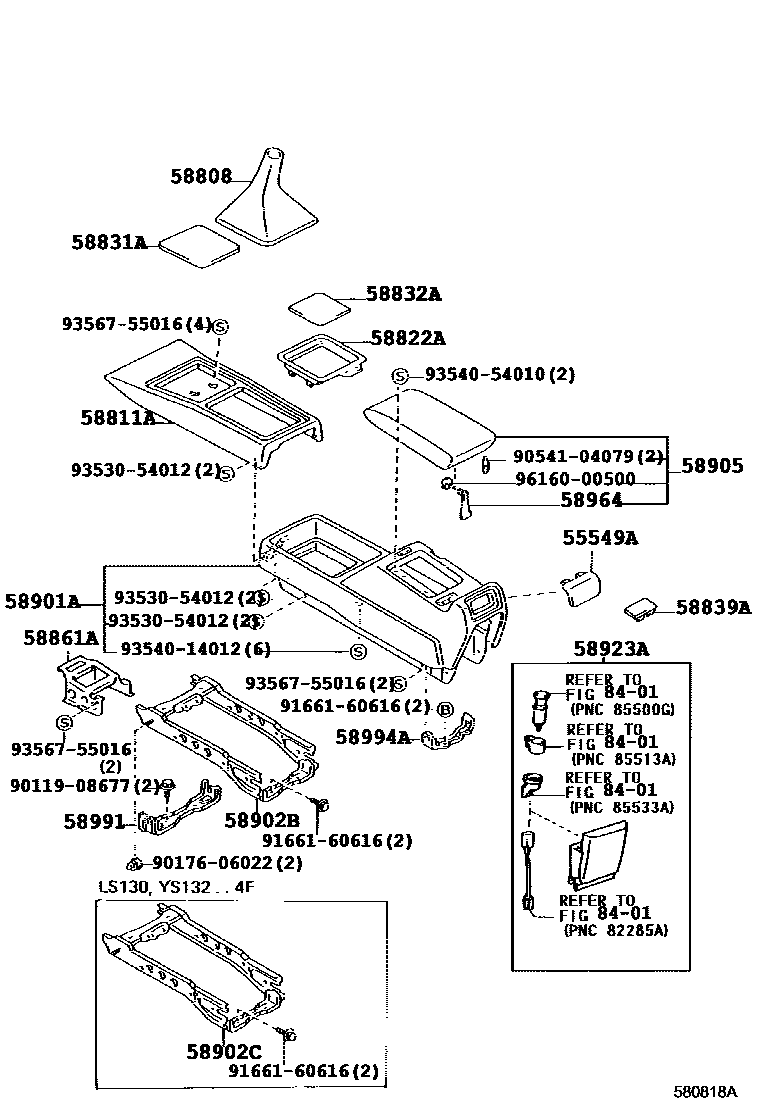

CONSOLE BOX & BRACKET

0001 1 0002 1 0004 1 0005 1

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-30080-E0iJZS133..RHD..G199110-199512

QUARTZ,TRIM4#

main55549-30080-J0iJZS133..RHD..G199110-199512

DK.BLUE,TRIM8#

main55549-30090-E0iGS131..G;JZS133..LHD..(G,J);JZS133..RHD..5F..G199110-200104

QUARTZ,TRIM4#

main55549-30090-J0iJZS133..LHD..(D,G,J);GS131,LS130,YS132..4F,5F199110-199512

DK.BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30070-E0iGS131,JZS133..5F..(ROY,SAL)199110-200104

QUARTZ,TRIM4#

main58808-30070-J0iGS131,JZS133,LS130,YS132..4F,5F199110-199512

DK.BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58802-30040-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main58802-30040-E0iGS131,JZS133..RHD..4FC..Q199110-200104

QUARTZ,TRIM4#

main58802-30040-J0iGS131,JZS133..RHD..4FC..Q199110-199512

DK.BLUE,TRIM8#

main58811-30240-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..G;JZS133..RHD..5F..Q;JZS133..LHD..(ROY,SAL)199110-200104

QUARTZ,TRIM4#

main58811-30240-J0iJZS133..LHD;JZS133..RHD..G;JZS133..RHD..5F;GS131,LS130,YS132..4F,5F199110-199512

DK.BLUE,TRIM8#

58822APANEL, CONSOLE, UPPER REAR

main58822-30160-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-200104

QUARTZ,TRIM4#

main58822-30160-J0iJZS133..LHD;JZS133..RHD..5F;GS131,LS130,YS132..4F,5F199110-199512

DK.BLUE,TRIM8#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30060-E0iGS131..G;JZS133..RHD..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-199311

QUARTZ,TRIM4#

main58831-30060-J0iGS131..G;JZS133..RHD..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-199311

DK.BLUE,TRIM8#

main58831-30061-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..G;JZS133..LHD..(G,Q)199311-200104

QUARTZ,TRIM4#

main58831-30061-J0iGS131..G;JZS133..RHD..G;JZS133..LHD..(G,Q)199311-199512

DK.BLUE,TRIM8#

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30070-E0iGS131..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-199311

QUARTZ,TRIM4#

main58832-30070-J0iGS131..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-199311

DK.BLUE,TRIM8#

main58832-30071-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..5F;JZS133..LHD..(G,Q)199311-200104

QUARTZ,TRIM4#

main58832-30071-J0iGS131..G;JZS133..LHD..(G,Q)199311-199512

DK.BLUE,TRIM8#

58839ACOVER, CONSOLE BOX HOLE

main58839-30031iJZS133..RHD..Q;JZS133..RHD..5F;GS131,LS130,YS132..4F,4FC,5F199506-200104

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-30040iLS130,YS132..4F199110-199512

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-30070-E0iJZS133..RHD..G199110-199308

QUARTZ,TRIM4#

main58901-30070-J0iJZS133..RHD..G199110-199308

DK.BLUE,TRIM8#

main58901-30071-E0iJZS133..RHD..G199308-199512

QUARTZ,TRIM4#

main58901-30071-J0iJZS133..RHD..G199308-199512

DK.BLUE,TRIM8#

main58901-30080-E0iGS131..G;JZS133..5F..Q;JZS133..LHD..(ROY,SAL)199110-199308

QUARTZ,TRIM4#

main58901-30080-J0iJZS133..LHD;JZS133..5F..Q;GS131,LS130,YS132..4F,5F199110-199308

DK.BLUE,TRIM8#

main58901-30081-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..5F;JZS133..LHD..(G,Q)199308-200104

QUARTZ,TRIM4#

main58901-30081-J0iJZS133..LHD;GS131,LS130,YS132..4F,5F199308-199512

DK.BLUE,TRIM8#

main58901-30091-B0iJZS133..EECC199110-199308

W(ELECTRO MULTIVISION),SHADOW GRAY,TRIM1#

main58901-30091-E0iJZS133..EECC199110-199308

W(ELECTRO MULTIVISION),QUARTZ,TRIM4#

main58901-30091-J0iJZS133..EECC199110-199308

W(ELECTRO MULTIVISION),DK.BLUE,TRIM8#

main58901-30121-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main58901-30121-E0iGS131,JZS133..RHD..4FC..Q199110-199308

QUARTZ,TRIM4#

main58901-30121-J0iGS131,JZS133..RHD..4FC..Q199110-199308

DK.BLUE,TRIM8#

main58901-30122-E0iGS131,JZS133..RHD..Q199308-200104

QUARTZ,TRIM4#

main58901-30122-J0iGS131,JZS133..RHD..Q199308-199512

DK.BLUE,TRIM8#

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-30060iGS131,JZS133,LS130,YS132..4F,4FC,5F199110-200104

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-30040iLS130,YS132..4F199110-199512

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30140-E0iJZS133..RHD..G199110-199512

QUARTZ,TRIM4#

main58905-30140-J0iJZS133..RHD..G199110-199512

DK.BLUE,TRIM8#

main58905-30150-E0iGS131..G;GS131..LHD..Q;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-200104

QUARTZ,TRIM4#

main58905-30150-J0iJZS133..LHD;JZS133..5F..Q;GS131,LS130,YS132..4F,5F199110-199308

DK.BLUE,TRIM8#

main58905-30320-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main58905-30320-E0iGS131,JZS133..RHD..4FC..Q199110-200104

QUARTZ,TRIM4#

main58905-30320-J0iGS131,JZS133..RHD..4FC..Q199110-200104

DK.BLUE,TRIM8#

58923APANEL, CONSOLE REAR END

main58903-30091-E0iJZS133..G,J199110-199512

W(REAR RADIO CONTROLER),QUARTZ,TRIM4#

main58903-30091-J0iJZS133..G,J199110-199512

W(REAR RADIO CONTROLER),DK.BLUE,TRIM8#

main58923-30070-E0iJZS133..G,J;JZS133..LHD..5F..GEN..Q199110-199512

QUARTZ,TRIM4#

main58923-30070-J0iJZS133..D,G,J199110-199512

DK.BLUE,TRIM8#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30050iJZS133..LHD;GS131..LHD..Q;JZS133..RHD..G;JZS133..RHD..5F..Q;GS131,LS130,YS132..4F,5F199110-200104

main58964-30070iGS131,JZS133..RHD..4FC..Q199110-200104

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30081iGS131,JZS133,LS130,YS132..4F,4FC,5F199110-200104

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-30020iJZS133..LHD;GS131..LHD..Q;JZS133..RHD..G;JZS133..RHD..5F..Q;GS131,LS130,YS132..4F,5F199110-200104

main58994-30050iJZS133..EECC199110-199308

W(ELECTRO MULTIVISION)

main58994-30060iGS131,JZS133..RHD..4FC..Q199110-200104

8401

9011908677

main90119-08677

9017606022

main90176-06022

9054104079

main90541-04079

9166160616

main91661-60616

9353054012

main93530-54012

9354014012

main93540-14012

9354054010

main93540-54010

9356755016

main93567-55016

9616000500

main96160-00500

26 parts on this diagram · 4 diagrams in section
