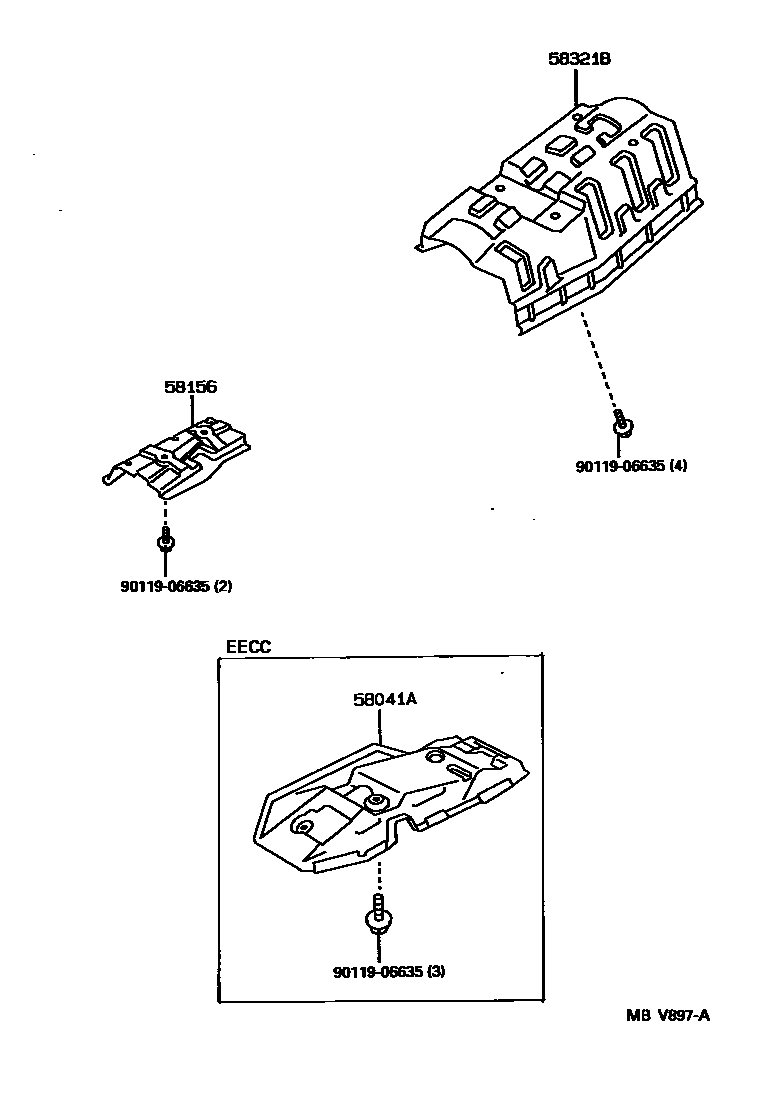

FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-30050iJZS133..EECC199110-199210

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30050iGS131,JZS133,YS132..GCC,GEN199110-199212

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-30050iLS130,YS132199110-199512

main58321-30080iGS131;JZS133..LHD..5F..Q;JZS133..5F..(D,G,J);JZS133..4FC..(GCC,GEN)199212-200104

main58321-30090iJZS133..EECC;JZS133..5F..Q199212-199308

9011906635

main90119-06635

4 parts on this diagram · 1 diagram in section
