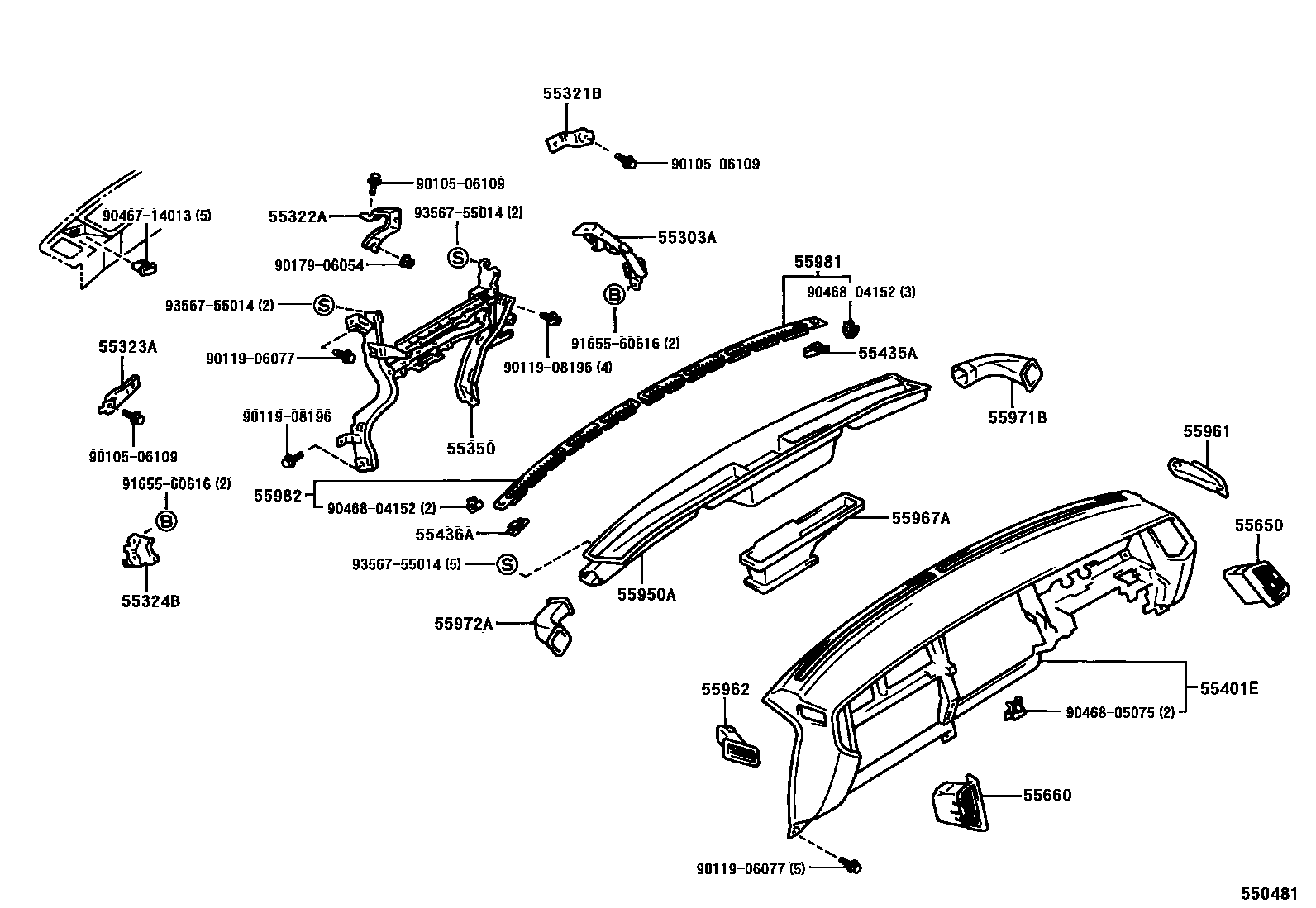

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30080iGS131,JZS133,LS130..RHD199110-200104

main55303-30090iGS131,JZS133,LS130,YS132..LHD199110-199208

main55303-30091iGS131,JZS133,LS130,YS132..LHD199208-199904

main55303-30120iJZS133..EECC199110-199308

W(AIR CUSHION RESTRAINT SYSTEM)

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-30050iGS131,JZS133,LS130..RHD199110-200104

main55321-30060iGS131,JZS133,LS130,YS132..LHD199110-199904

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-30010iGS131,JZS133,LS130..RHD199110-200104

main55322-30020iGS131,JZS133,LS130,YS132..LHD199110-199904

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-30010iGS131,JZS133,LS130..RHD199110-200104

main55323-30020iGS131,JZS133,LS130,YS132..LHD199110-199904

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-30010iGS131,JZS133,LS130..RHD199110-200104

main55324-30020iGS131,JZS133,LS130,YS132..LHD199110-199904

55350BRACE ASSY, INSTRUMENT PANEL

main55350-30010iLS130..RHD199110-199512

main55350-30020iGS131,JZS133..RHD..Q199110-200104

main55350-30040iGS131,JZS133..RHD..G199110-200104

main55350-30050iGS131,JZS133,LS130,YS132..LHD199110-199904

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30301-E0iGS131..RHD199110-199512

QUARTZ,TRIM4#

main55401-30301-J0iGS131,LS130..RHD199110-199512

DK.BLUE,TRIM8#

main55401-30310-E0iGS131..LHD199110-199904

QUARTZ,TRIM4#

main55401-30310-J0iGS131,LS130,YS132..LHD199110-199512

DK.BLUE,TRIM8#

main55401-30360-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55401-30360-E0iJZS133..RHD199110-200104

QUARTZ,TRIM4#

main55401-30360-J0iJZS133..RHD..4FC;JZS133..RHD..5F..Q199110-199704

DK.BLUE,TRIM8#

main55401-30370-E0iJZS133..LHD..(ROY,SAL)199110-199512

QUARTZ,TRIM4#

main55401-30370-J0iJZS133..LHD199110-199512

DK.BLUE,TRIM8#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-30130iGS131..LHD..Q;GS131,JZS133,LS130,YS132..B,D,G199110-200104

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-30070iJZS133..D,G,J;GS131,LS130,YS132199110-199512

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30170-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55650-30170-E0iGS131,JZS133..ROY,SAL199110-199508

QUARTZ,TRIM4#

main55650-30170-J0iGS131,JZS133,LS130,YS132199110-199508

DK.BLUE,TRIM8#

main55650-30171-E0iGS131,JZS133..G,Q199508-200104

DK.ROSE,TRIM4#

main55650-30171-J0iGS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H199508-200104

DK.BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30260-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55660-30260-E0iGS131,JZS133..ROY,SAL199110-199508

QUARTZ,TRIM4#

main55660-30260-J0iGS131,JZS133,LS130,YS132199110-199508

DK.BLUE,TRIM8#

main55660-30261-E0iGS131,JZS133..G,Q199508-200104

DK.ROSE,TRIM4#

main55660-30261-J0iGS131..RHD;GS131,JZS133..LHD..5F;JZS133,LS130,YS132..4F,4FC,4H199508-200104

DK.BLUE,TRIM8#

55950ANOZZLE ASSY, DEFROSTER

main55951-30100iGS131,JZS133,LS130..RHD199110-200104

main55951-30110iGS131,JZS133,LS130,YS132..LHD199110-199904

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55961-30060-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main55961-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30040-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55962-30040-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main55962-30040-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

55967ANOZZLE, DEFROSTER, LOWER

main55967-30010iGS131,JZS133,LS130..RHD199110-200104

main55967-30020iGS131,JZS133,LS130,YS132..LHD199110-199904

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30050iGS131,JZS133,LS130,YS132199110-200104

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30050iGS131,JZS133,LS130,YS132199110-200104

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30020-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55981-30020-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main55981-30020-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30020-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main55982-30020-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main55982-30020-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

9010506109

main90105-06109

9011906077

main90119-06077

9011908196

main90119-08196

9017906054

main90179-06054

9046714013

main90467-14013

9046804152

main90468-04152

9046805075

main90468-05075

9165560616

main91655-60616

9356755014

main93567-55014

28 parts on this diagram · 5 diagrams in section
