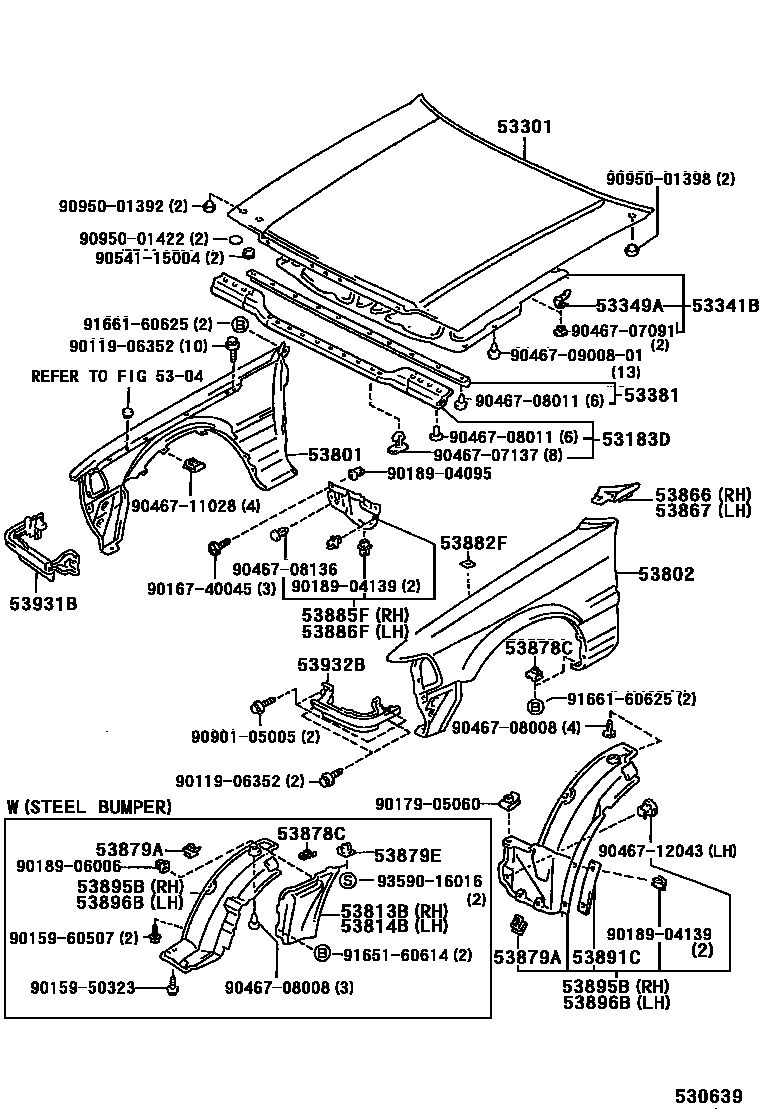

HOOD & FRONT FENDER

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-30060iLS130,YS132199110-199512

main53183-30070iGS131,JZS133199110-199512

main53183-30230iGS131,JZS133199512-200104

53301HOOD SUB-ASSY

main53301-30320iJZS133..RHD..5F;GS131,LS130,YS132;JZS133..4FC..(EECC,GEN);JZS133..LHD..5F..GEN..G199110-200104

main53301-30330iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN; JZS133..GCC;JZS133..LHD..5F..GEN..Q199110-199512

CHINA SPEC OR HOT AREA SPEC

53341BINSULATOR, HOOD

main53341-30102iGS131,JZS133,YS132..(ROY,SAL,STD)..(GCC,GEN)199110-199308

main53341-30112iLS130..4H;LS130..LHD;JZS133..EECC199110-199308

main53341-30132iLS130..RHD..4F199110-199512

53349ARETAINER, HOOD INSULATOR

main53349-30010×2iGS131,JZS133,LS130,YS132..ROY,SAL,STD199110-200104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30120iGS131,JZS133,LS130,YS132199110-200104

53801FENDER SUB-ASSY, FRONT RH

main53801-3F050iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

main53801-3F070iLS130,YS132199110-199512

main53801-3F110iJZS133..EECC199110-199308

main53801-3F120iGS131..G;JZS133..(ROY,SAL)..(GCC,GEN); JZS133..EECC199110-199308

W(DOOR MIRROR)

main53801-3F200iJZS133..D199110-199512

main53801-3F220iGS131..Q199110-199308

53802FENDER SUB-ASSY, FRONT LH

main53802-3A720iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

main53802-3A740iLS130,YS132199110-199512

main53802-3A770iJZS133..EECC199110-199308

main53802-3A780iGS131..G;JZS133..(ROY,SAL)..(GCC,GEN); JZS133..EECC199110-199308

W(DOOR MIRROR)

main53802-3A870iJZS133..D199110-199512

main53802-3A890iGS131..Q199110-199308

53813BEXTENSION, FRONT FENDER, RH

main53813-30040iLS130,YS132199110-199512

53814BEXTENSION, FRONT FENDER, LH

main53814-30040iLS130,YS132199110-199512

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30040iGS131,JZS133,LS130,YS132199110-200104

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30040iGS131,JZS133,LS130,YS132199110-200104

53878CSPACER, FRONT FENDER

main53878-14020×2iJZS133..RHD..Q199506-199512

INDONESIA SPEC,FENDER X ROCKER

main53878-30020iLS130,YS132199308-199512

FENDER X EXTENSION

53879ARETAINER, FRONT FENDER LINER

main53879-22030×2iLS130,YS132199110-199512

main53879-30010×4iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

53879ESPACER, FRONT FENDER, LH

main53878-30020iLS130,YS132199110-199512

53882FSEAL, FRONT FENDER

main53882-16030iJZS133..ROY,SAL199110-199512

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-30030iGS131,JZS133,LS130,YS132199110-199306

main53885-30070iGS131,JZS133,LS130,YS132199306-200104

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-30030iGS131,JZS133,LS130,YS132199110-199306

main53886-30070iGS131,JZS133,LS130,YS132199306-200104

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-30020×2iGS131,JZS133,LS130,YS132199110-200104

53895BSHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-30010iLS130,YS132199110-199512

main53895-30020iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

53896BSHIELD, FRONT FENDER SPLASH, FRONT LH

main53896-30010iLS130,YS132199110-199512

main53896-30020iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

53931BPANEL, FRONT END, RH

main53903-30260iLS130,YS132199110-199512

main53903-30270iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

53932BPANEL, FRONT END, LH

main53904-30260iLS130,YS132199110-199512

main53904-30270iLS130,YS132199110-199512

W(SMALL URETHAN BUMPER)

9011906352

main90119-06352

9015950323

main90159-50323

9015960507

main90159-60507

9016740045

main90167-40045

9017905060

main90179-05060

9018904095

main90189-04095

9018904139

main90189-04139

9018906006

main90189-06006

9046707091

main90467-07091

9046707137

main90467-07137

9046708008

main90467-08008

9046708011

main90467-08011

9046708136

main90467-08136

904670900801

main90467-0900801

9046711028

main90467-11028

9046712043

main90467-12043

9054115004

main90541-15004

9090105005

main90901-05005

9095001392

main90950-01392

9095001398

main90950-01398

9095001422

main90950-01422

9165160614

main91651-60614

9166160625

main91661-60625

9359016016

main93590-16016

47 parts on this diagram · 1 diagram in section
