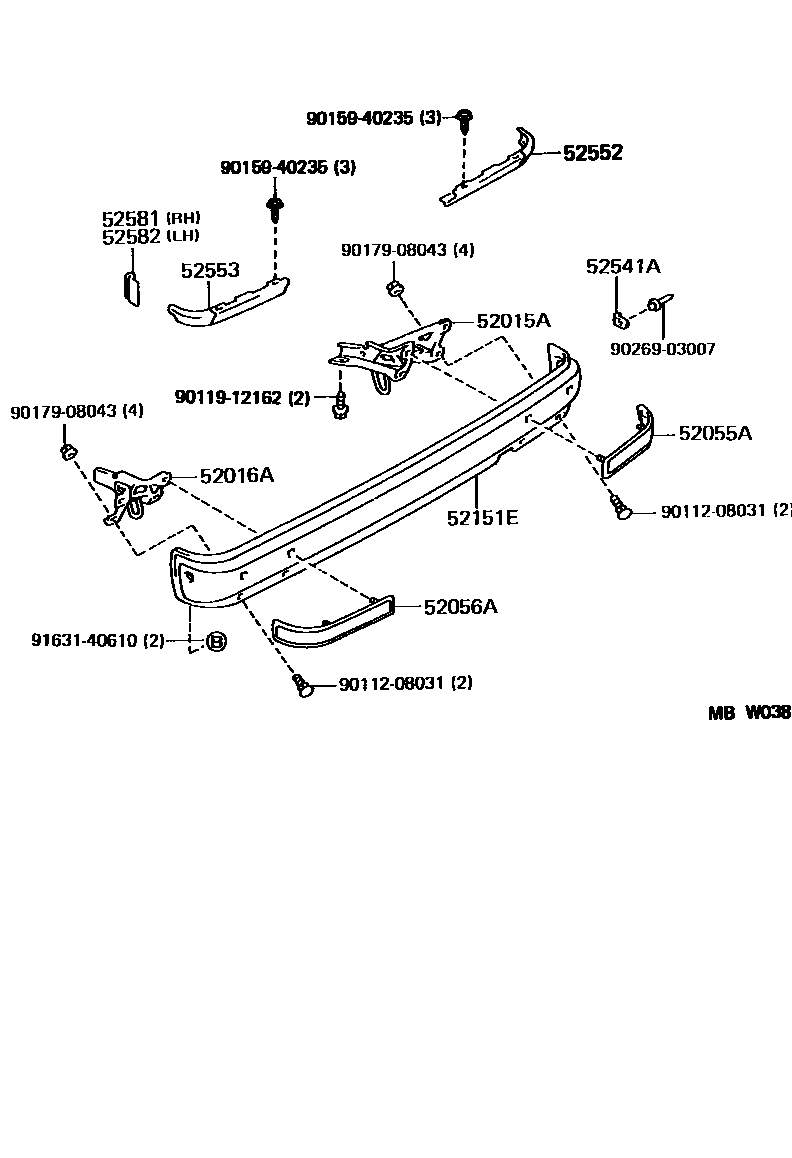

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-30110iLS130,YS132199110-199512

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-30110iLS130,YS132199110-199512

52055APAD SUB-ASSY, REAR BUMPER, RH

main52055-30060iLS130,YS132199110-199512

52056APAD SUB-ASSY, REAR BUMPER, LH

main52056-30030iLS130,YS132199110-199512

52151EBAR, REAR BUMPER

main52151-30200iLS130,YS132199110-199512

52541APROTECTOR, REAR BUMPER

main52541-30030×2iLS130,YS132199110-199512

52552FILLER, REAR BUMPER, RH

main52506-30040iLS130,YS132199110-199512

52553FILLER, REAR BUMPER, LH

main52507-30040iLS130,YS132199110-199512

52581PROTECTOR, REAR BUMPER, RH

main52581-22021iLS130,YS132199110-199512

52582PROTECTOR, REAR BUMPER, LH

main52581-22021iLS130,YS132199110-199512

9011208031

main90112-08031

9011912162

main90119-12162

9015940235

main90159-40235

9017908043

main90179-08043

9026903007

main90269-03007

9163140610

main91631-40610

16 parts on this diagram · 3 diagrams in section
