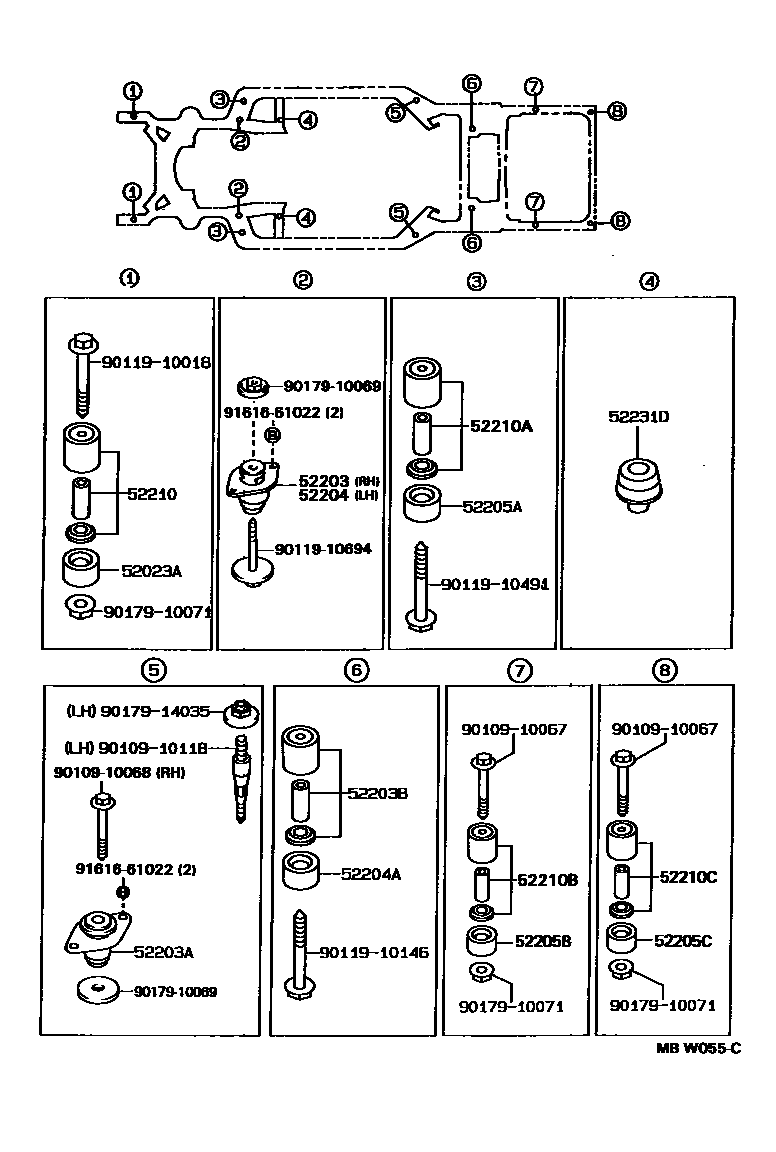

BODY MOUNTING

0001 1 0002 1

52023ACUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER

main52023-30030×2iGS131,JZS133,LS130,YS132199110-200104

52203CUSHION SUB-ASSY, REAR FRAME

main52203-30060iGS131,JZS133,LS130,YS132199110-200104

52203ACUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-30050×2iGS131,JZS133,LS130,YS132199110-200104

52203BCUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER

main52203-30040×2iLS130,YS132199110-199512

52204CUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52204-30040iGS131,JZS133,LS130,YS132199110-200104

52204ACUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER

main52204-30020×2iLS130,YS132199110-199512

52205ACUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52023-30030×2iGS131,JZS133,LS130,YS132199110-200104

52205BCUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52023-30030×2iLS130,YS132199110-199512

main52205-30050×2iGS131,JZS133199110-200104

52205CCUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52205-30060×2iGS131,JZS133,LS130,YS132199110-200104

52210CUSHION ASSY, BODY MOUNTING, UPPER

main52210-30010×2iGS131,JZS133,LS130,YS132199110-200104

52210ACUSHION ASSY, BODY MOUNTING, UPPER

main52210-30020×2iGS131,JZS133,LS130,YS132199110-200104

52210BCUSHION ASSY, BODY MOUNTING, UPPER

main52210-30010×2iLS130,YS132199110-199512

main52210-30030×2iGS131,JZS133199110-200104

52210CCUSHION ASSY, BODY MOUNTING, UPPER

main52210-30040×2iGS131,JZS133,LS130,YS132199110-200104

52231DCUSHION, BODY MOUNTING, REAR UPPER

main52231-30040×2iGS131,JZS133,LS130,YS132199110-200104

9010910067

main90109-10067

9010910068

main90109-10068

9010910118

main90109-10118

9011910018

main90119-10018

9011910146

main90119-10146

9011910491

main90119-10491

9011910694

main90119-10694

9017910069

main90179-10069

9017910071

main90179-10071

9017914035

main90179-14035

9161661022

main91616-61022

25 parts on this diagram · 2 diagrams in section
