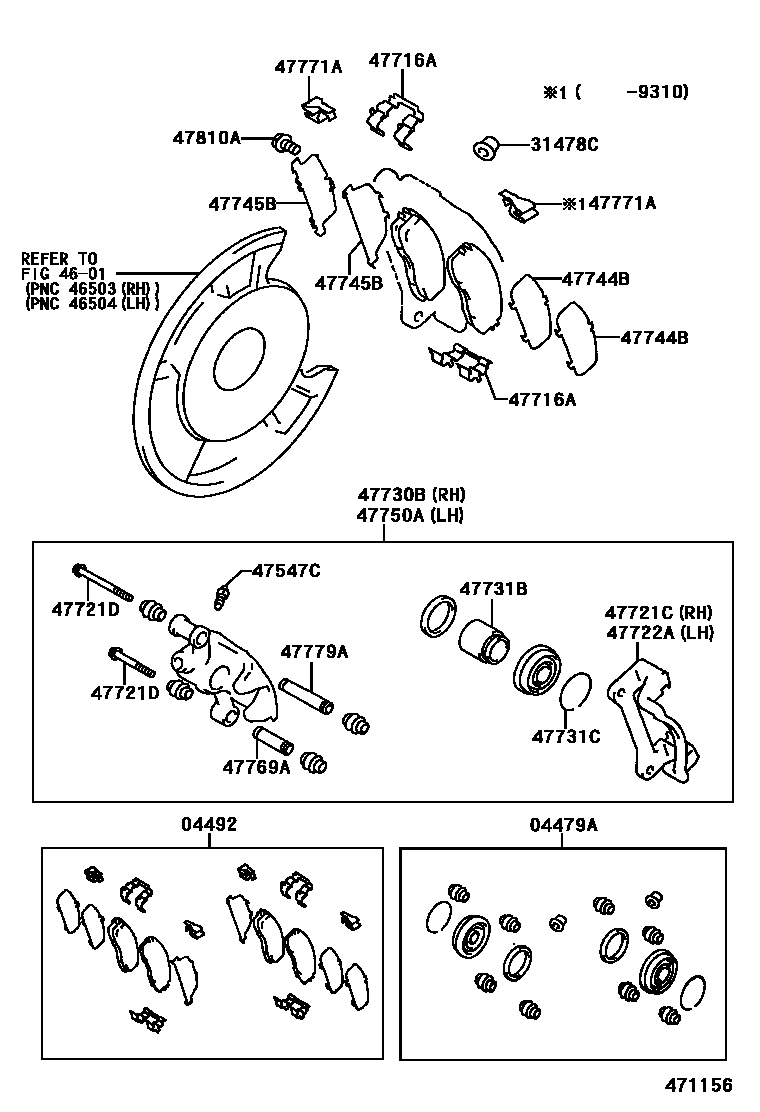

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30110iGS131,JZS133199110-199503

main04479-30111iGS131,JZS133199503-200104

04492PAD KIT, DISC BRAKE, REAR

main04492-30130iGS131,JZS133199110-199505

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGS131,JZS133199110-200104

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27040×2iGS131,JZS133199110-200104

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30050×4iGS131,JZS133199110-200104

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-30190iJZS133199110-200104

main47721-30200iGS131199110-199904

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-09013×2iGS131,JZS133199110-200104

*9-1.25PX62.9-25

main90119-09014×2iGS131,JZS133199110-200104

*9-1.25PX87.4-25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-30190iJZS133199110-200104

main47721-30200iGS131199110-199904

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30290iJZS133199110-200104

main47730-30300iGS131199110-199904

47731BPISTON, REAR DISC BRAKE

main47731-30090×2iGS131,JZS133199110-200104

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001×2iGS131,JZS133199110-200104

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-22091×4iGS131,JZS133199110-200104

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-22051×4iGS131,JZS133199110-200104

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30290iJZS133199110-200104

main47750-30300iGS131199110-199904

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-30030×2iGS131,JZS133199110-200104

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040×4iGS131,JZS133199110-199310

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-20010×2iGS131,JZS133199110-200104

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iGS131,JZS133199110-200104

19 parts on this diagram · 2 diagrams in section
