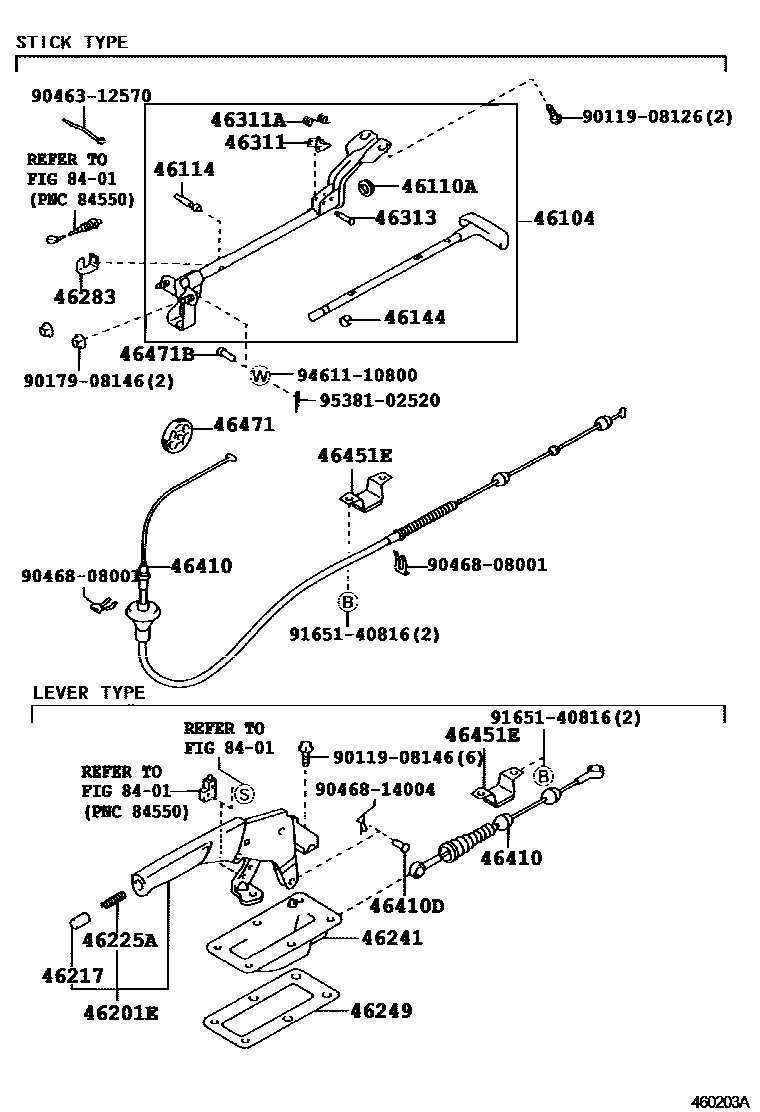

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-30110iLS130..4H199110-199512

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLS130..4H199110-199512

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLS130..4H199110-199512

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLS130..4H199110-199512

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30110iGS131,JZS133..RHD..4FC199110-199508

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-30062-J0iLS130,YS132..4F199110-199512

DARK BLUE,TRIM8#

main46201-30082-E0iGS131..G;JZS133..RHD..5F;JZS133..LHD..(ROY,SAL)199110-199508

DARK ROSE,TRIM4#

main46201-30082-J0iGS131..G;JZS133..LHD;JZS133..RHD..5F199110-199508

DARK BLUE,TRIM8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-E3iGS131..LHD..Q;JZS133..RHD..5F;JZS133..LHD..(G,Q)199508-200104

DARK ROSE,TRIM4#

main46217-12020-J1iLS130..4F;JZS133,YS132..LHD199508-199512

DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iJZS133..LHD;JZS133..RHD..5F;GS131,LS130,YS132..4F,5F199110-199508

46241BOOT, PARKING BRAKE LEVER

main46241-30010iJZS133..LHD;GS131..LHD..Q;LS130,YS132..4F;JZS133..RHD..5F199508-200104

46249SHIELD, PARKING BRAKE HOLE

main46249-30010iJZS133..LHD;JZS133..RHD..5F;GS131,LS130,YS132..4F,5F199110-199508

46283PROTECTOR, PARKING BRAKE SIGNAL SWITCH

main46283-30020iLS130..4H199110-199512

46311PAWL, PARKING BRAKE

main46311-30041×2iLS130..4H199110-199512

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLS130..4H199110-199512

46313PIN, PARKING BRAKE PAWL

main46313-40010×2iLS130..4H199110-199512

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30530iGS131,JZS133..RHD..4FC199110-199508

main46410-30570iJZS133..LHD;GS131..LHD..Q;JZS133..RHD..5F199508-200104

main46410-30590iLS130,YS132..4F199110-199512

main46410-30610iLS130..4H199110-199512

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08021iJZS133..LHD;JZS133..RHD..5F;GS131,LS130,YS132..4F,5F199110-199508

main90249-10012iGS131,JZS133..RHD..4FC199110-199508

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-30080iJZS133..LHD;JZS133..RHD..5F;GS131,LS130,YS132..MTM199110-199508

46471PULLEY, WIRE

main46471-30010iLS130..4H199110-199512

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08062iLS130..4H199110-199512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908126

main90119-08126

9011908146

main90119-08146

9017908146

main90179-08146

9046312570

main90463-12570

9046808001

main90468-08001

9046814004

main90468-14004

9165140816

main91651-40816

9461110800

main94611-10800

9538102520

main95381-02520

29 parts on this diagram · 5 diagrams in section
