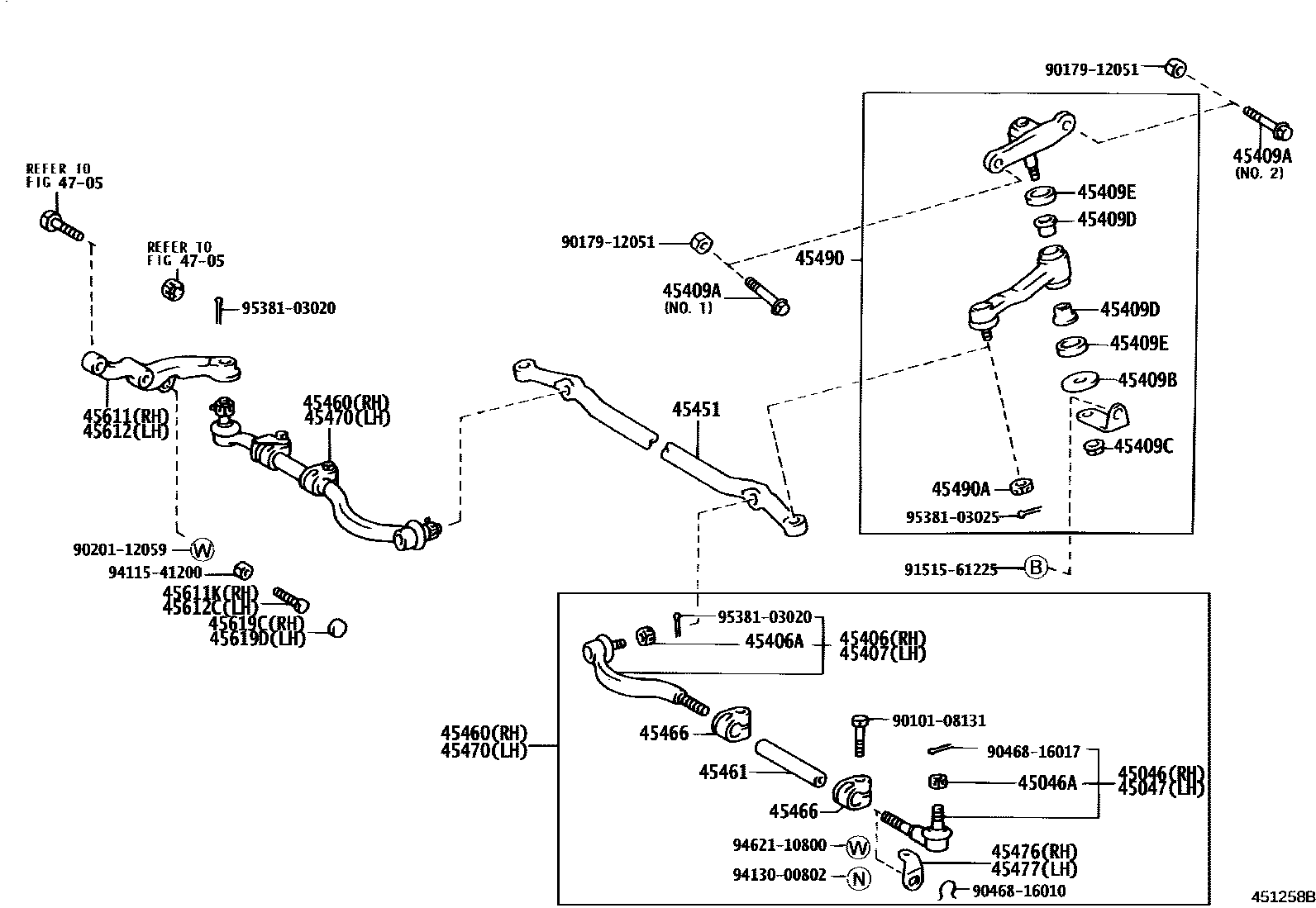

FRONT STEERING GEAR & LINK

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1HONG KONG,SINGAPORE,THAILAND 0012 1HONG KONG,SINGAPORE,THAILAND

45046END SUB-ASSY, TIE ROD, RH

main45046-39155iLS130,YS132..LHD199110-199308

main45046-39195iLS130,YS132..LHD199110-199512

W(POWER STEERING)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGS131,JZS133,LS130,YS132199110-200104

45047END SUB-ASSY, TIE ROD, LH

main45046-39155iLS130,YS132..LHD199110-199308

main45046-39195iLS130,YS132..LHD199110-199512

W(POWER STEERING)

45406ROD SUB-ASSY, TIE, RH

main45406-39145iGS131,JZS133,LS130,YS132199110-200104

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12028×2iGS131,JZS133,LS130,YS132199110-200104

45407ROD SUB-ASSY, TIE, LH

main45406-39145iGS131,JZS133,LS130,YS132199110-200104

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90105-12105iGS131,JZS133,LS130,YS132199110-200104

*12-1.25PX91.5-38,NO.1

main90105-12120iGS131,JZS133,LS130,YS132199110-200104

*12-1.25PX104-44,NO.2

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14519iGS131,JZS133,LS130,YS132199110-200104

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iGS131,JZS133,LS130,YS132199110-200104

45409DBUSH(FOR IDLER ARM)

main90386-18002×2iGS131,JZS133,LS130,YS132199110-200104

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012×2iGS131,JZS133,LS130,YS132199110-200104

45451ROD, STEERING RELAY

main45451-39035iGS131,JZS133,LS130..RHD..GEN199110-200104

main45451-39045iLS130,YS132..LHD199110-199512

W(POWER STEERING)

main45451-39065iLS130,YS132..LHD199110-199308

main45451-39155iJZS133..EECC199110-199308

45460ROD ASSY, TIE, RH

main45460-39265iLS130,YS132..LHD199110-199512

W(POWER STEERING)

main45460-39275iLS130,YS132..LHD199110-199308

45461ROD, STEERING TIE

main45465-30031×2iLS130,YS132..LHD199110-199512

W(POWER STEERING)

main45465-30041×2iLS130,YS132..LHD199110-199308

45466CLAMP, TIE ROD END

main45466-22020×2iLS130..RHD;GS131,JZS133199110-200104

INNER

main45466-30030×2iLS130,YS132..LHD199110-199512

W(POWER STEERING),OUTER

45470ROD ASSY, TIE, LH

main45460-39275iLS130,YS132..LHD199110-199308

main45470-39065iLS130,YS132..LHD199110-199512

W(POWER STEERING)

45476PLATE, TURNING STOPPER

main45476-30010iGS131,JZS133,LS130,YS132199110-200104

45477PLATE, STOPPER

main45477-30010iGS131,JZS133,LS130,YS132199110-200104

45490ARM ASSY, STEERING IDLER

main45490-39385iGS131,JZS133,LS130..RHD199110-200104

main45490-39395iLS130,YS132..LHD199110-199512

W(POWER STEERING)

main45490-39415iLS130,YS132..LHD199110-199308

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iGS131,JZS133,LS130,YS132199110-200104

45611ARM, STEERING KNUCKLE, RH

main45611-30121iLS130,YS132..LHD; LS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main45611-30131iLS130,YS132..LHD199110-199308

45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)

main90106-12007iGS131,JZS133,LS130,YS132199110-200104

45612ARM, STEERING KNUCKLE, LH

main45612-30121iLS130,YS132..LHD; LS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main45612-30131iLS130,YS132..LHD199110-199308

45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)

main90106-12007iGS131,JZS133,LS130,YS132199110-200104

45619CCOVER, STEERING KNUCKLE STOPPER, RH

main45619-36010iGS131,JZS133,LS130,YS132199110-200104

45619DCOVER, STEERING KNUCKLE STOPPER, LH

main45619-36010iGS131,JZS133,LS130,YS132199110-200104

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

9010108131

main90101-08131

9017912051

main90179-12051

9020112059

main90201-12059

9046816010

main90468-16010

9046816017

main90468-16017

9151561225

main91515-61225

9411541200

main94115-41200

9413000802

main94130-00802

9462110800

main94621-10800

9538103020

main95381-03020

9538103025

main95381-03025

38 parts on this diagram · 10 diagrams in section
