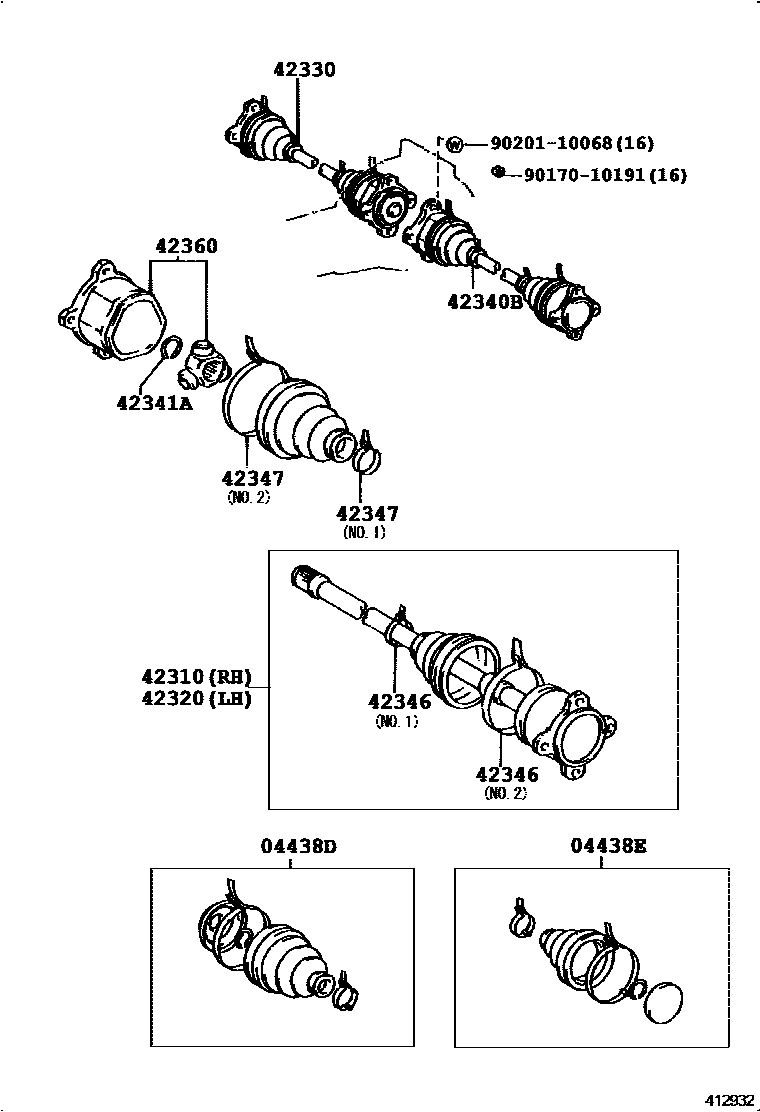

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-20010×2iGS131199110-199401

main04437-30030×2iJZS133199110-200104

main04438-28011×2iGS131199401-199904

sub04437-28021

04438EBOOT KIT, REAR DRIVE SHAFT OUTBOARD JOINT

main04437-14030×2iJZS133199110-199204

main04437-30021×2iGS131199110-199904

main04438-35011×2iJZS133199204-200104

sub04438-35012

42310SHAFT ASSY, REAR DRIVE INBOARD JOINT, RH

main42310-30010iJZS133199110-200104

main42310-30020iGS131199110-199904

42320SHAFT ASSY, REAR DRIVE INBOARD JOINT, LH

main42320-30010iJZS133199110-200104

main42320-30020iGS131199110-199904

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30020iJZS133199110-200104

main42330-30040iGS131199110-199904

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30020iJZS133199110-200104

main42340-30040iGS131199110-199904

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028×2iGS131199110-199904

main90520-29028×2iJZS133199110-200104

42346CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010×2iGS131199110-199307

NO.1

main42345-14020×2iGS131199110-199904

NO.2

main42345-16030×2iGS131199307-199904

NO.1

main90949-01221×2iJZS133199110-200104

NO.1

main90949-01222×2iJZS133199110-200104

NO.2

42347CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16030×2iGS131199110-199904

NO.1

main42345-16090×2iGS131199110-199904

NO.2

main90949-01221×2iJZS133199110-200104

NO.1

main90949-01290×2iJZS133199110-200104

NO.2

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-30012×2iGS131199110-199904

sub42360-30040

9017010191

main90170-10191

9020110068

main90201-10068

12 parts on this diagram · 4 diagrams in section
