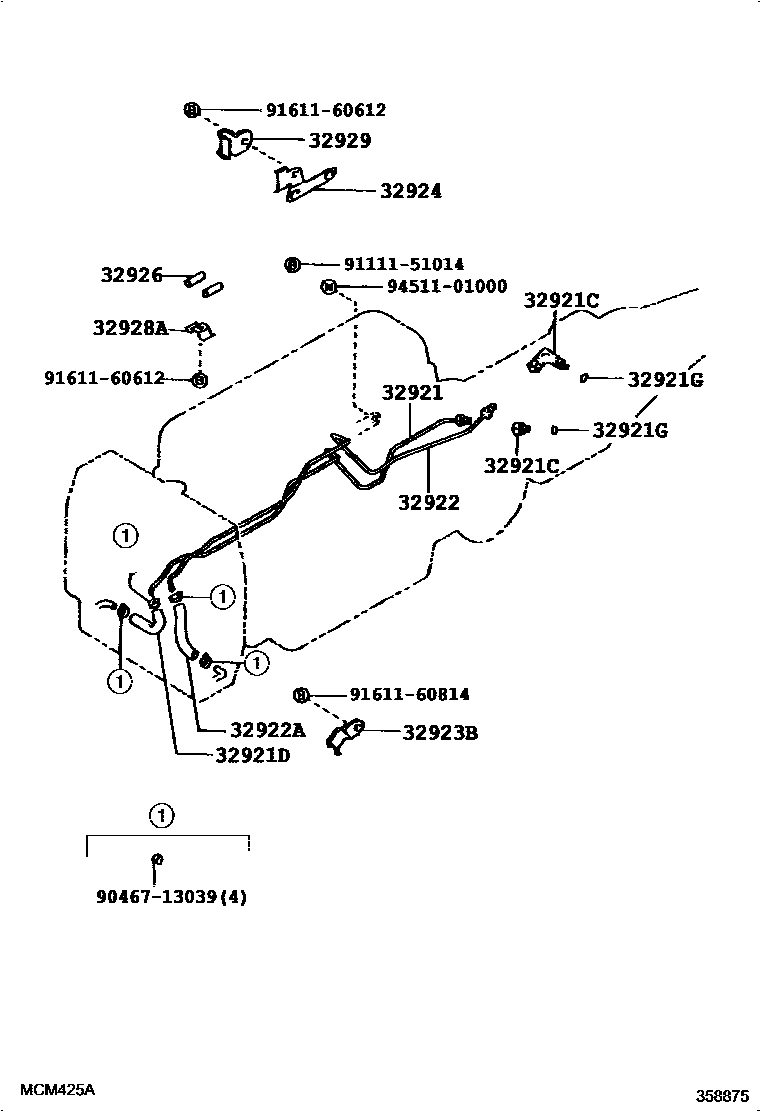

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30380iGS131..Q199110-199904

main32921-30540iJZS133..4FC199110-200104

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGS131..Q199110-199610

INLET

main90404-14021iGS131199610-199904

INLET

main90404-16029iJZS133..4FC199110-200104

INLET

main90407-14003iGS131..Q199110-199904

OUTLET

main90407-16009iJZS133..4FC199110-200104

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-30230iJZS133..4FC199110-200104

main90445-15048iGS131..Q199110-199904

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGS131..Q199110-199904

main90301-11006iJZS133..4FC199110-200104

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30380iGS131..Q199110-199904

main32922-30540iJZS133..4FC199110-200104

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-30051iGS131..Q199110-199904

main32942-30110iJZS133..4FC199110-200104

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32924-30180iJZS133..4FC199110-200104

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-30080iGS131..Q199110-199904

main32929-22050iJZS133..4FC199110-200104

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30160iJZS133..4FC199110-199301

main32923-30161iJZS133..4FC199301-200104

main32924-30100iGS131..Q199110-199904

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iGS131..Q199110-199904

L=25,ID=8

main32926-30020iJZS133..4FC199110-200104

L=35,ID=10,FR & CTR

main32926-30030iJZS133..4FC199110-200104

L=35,ID=10,RR

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-12085iGS131..Q199110

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-30090iGS131..Q199110

9046713039

main90467-13039

9111151014

main91111-51014

9161160612

main91611-60612

9161160814

main91611-60814

9451101000

main94511-01000

17 parts on this diagram · 2 diagrams in section
