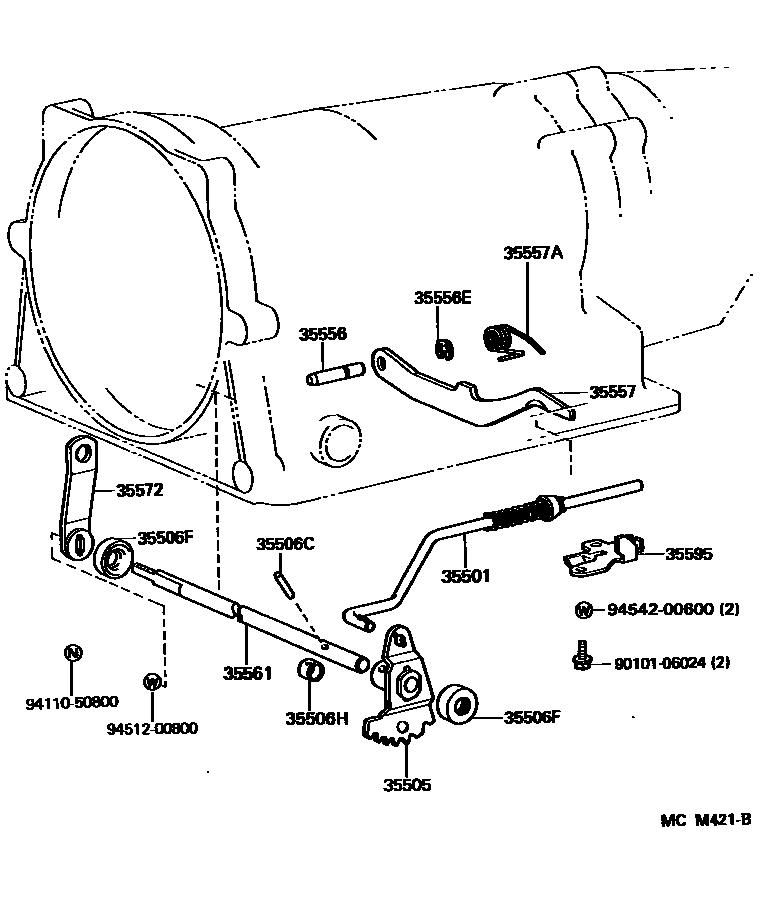

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1 0004 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iGS131..Q199110-199904

main35501-30010iJZS133..4FC199110-200104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iGS131..Q199110-199904

main35505-30021iJZS133..4FC..(GCC,GEN)199110-200104

main35505-50010iJZS133..RHD..4FC..GEN..Q199210-199512

HONG KONG SPEC

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGS131,JZS133..4FC199110-200104

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iGS131..Q199110-199904

main90311-12002×2iJZS133..4FC199207-200104

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGS131..Q199110-199904

main90560-20006iJZS133..4FC199110-200104

35556SHAFT, PARKING LOCK PAWL

main35556-26010iGS131..Q199110-199904

main35556-30020iJZS133..4FC199110-200104

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGS131,JZS133..4FC199110-200104

35557PAWL, PARKING LOCK

main35557-30020iJZS133..4FC199110-200104

main35557-35010iGS131..Q199110-199904

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZS133..4FC199110-200104

main90508-25001iGS131..Q199110-199904

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZS133..4FC199207-200104

main35561-40010iGS131..Q199110-199904

main35561-50010iJZS133..EECC199110-199207

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iGS131..Q199110-199904

main35572-30060iJZS133..4FC199306-200104

main35572-50011iJZS133..RHD..4FC..GEN..Q199210-199306

HONG KONG SPEC

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZS133..4FC199110-200104

main35595-40010iGS131..Q199110-199904

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 4 diagrams in section
