SPEEDOMETER DRIVEN GEAR (ATM)

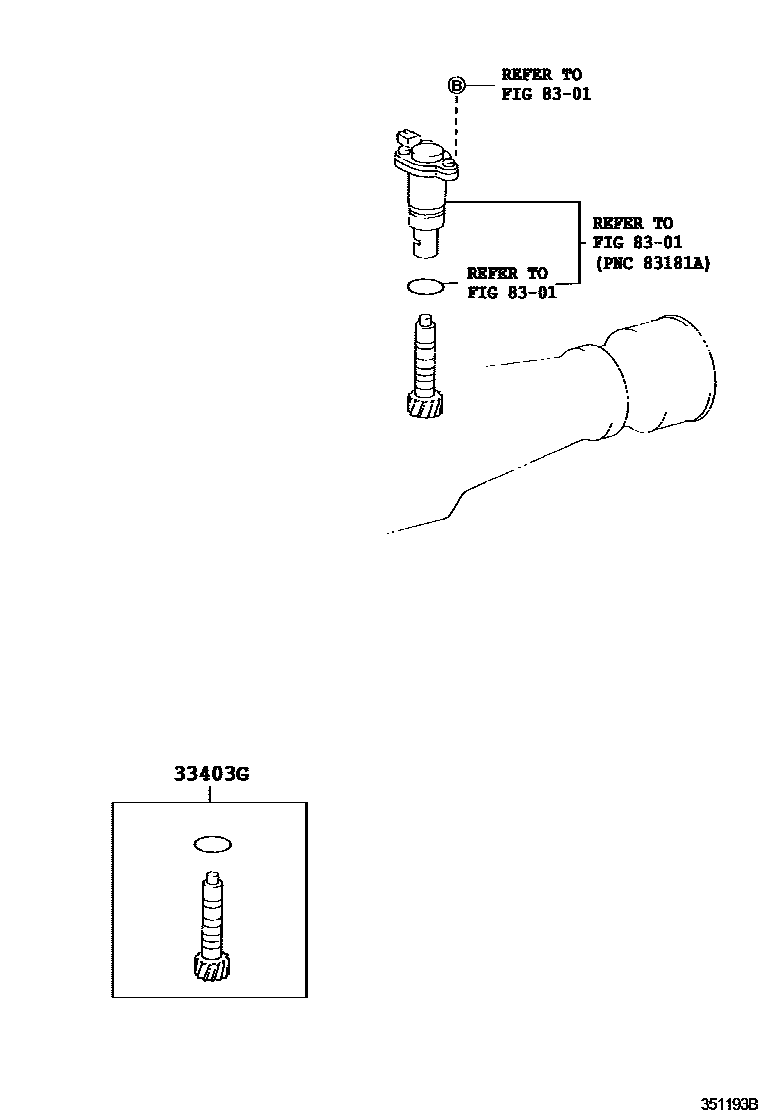

Parts diagram

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29205i199110-199308

N=19,MARK 19:6

main33482-39375i199110-200104

N=17,MARK L

main33482-39395i199110-199904

N=19,MARK S

8301METER

→ Go to FIG 83-01

2 parts on this diagram · 1 diagram in section
