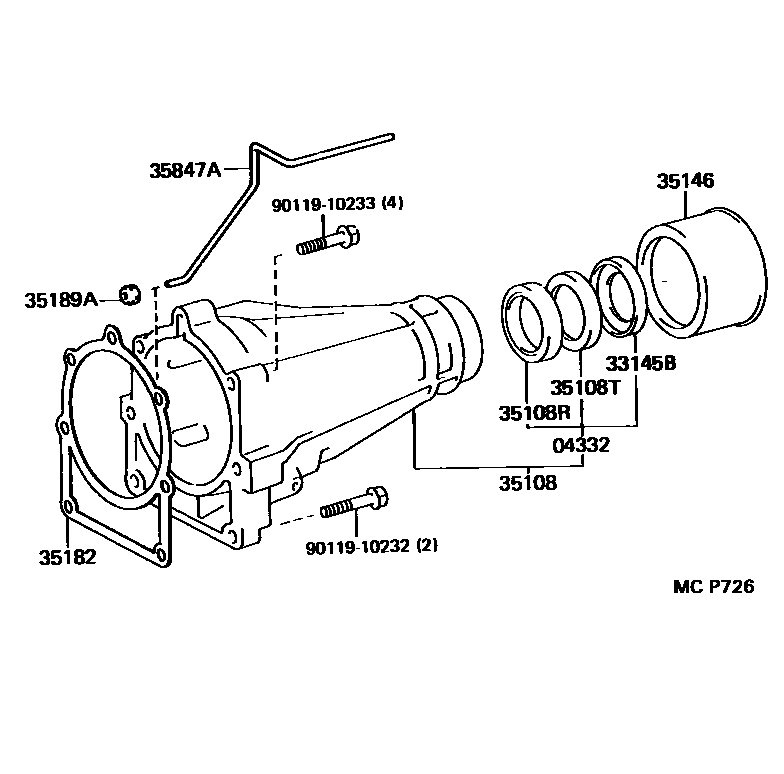

EXTENSION HOUSING (ATM)

0001 1 0002 1

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iGS131..Q199110

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGS131..Q199110

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30180iJZS133..RHD..Q199308-199512

SINGAPORE OR HONG KONG OR THAILAND SPEC

main35108-35020iGS131..Q199110-199501

main35108-35030iJZS133..4FC199110-199501

main35108-35040iGS131..Q199501-199904

main35108-35050iJZS133..RHD..Q199308-199512

W(ABS)

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iGS131..Q199110-199308

main90311-38032iGS131..Q199308-199904

main90311-40001iJZS133..4FC199110-200104

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGS131..Q199110

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iGS131,JZS133..4FC199110-199411

main33146-30020iJZS133..RHD..Q199308-199411

SINGAPORE OR HONG KONG OR THAILAND SPEC

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iGS131,JZS133..4FC199110-200104

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGS131,JZS133..4FC199110-200104

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGS131,JZS133..4FC199110-200104

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 2 diagrams in section
