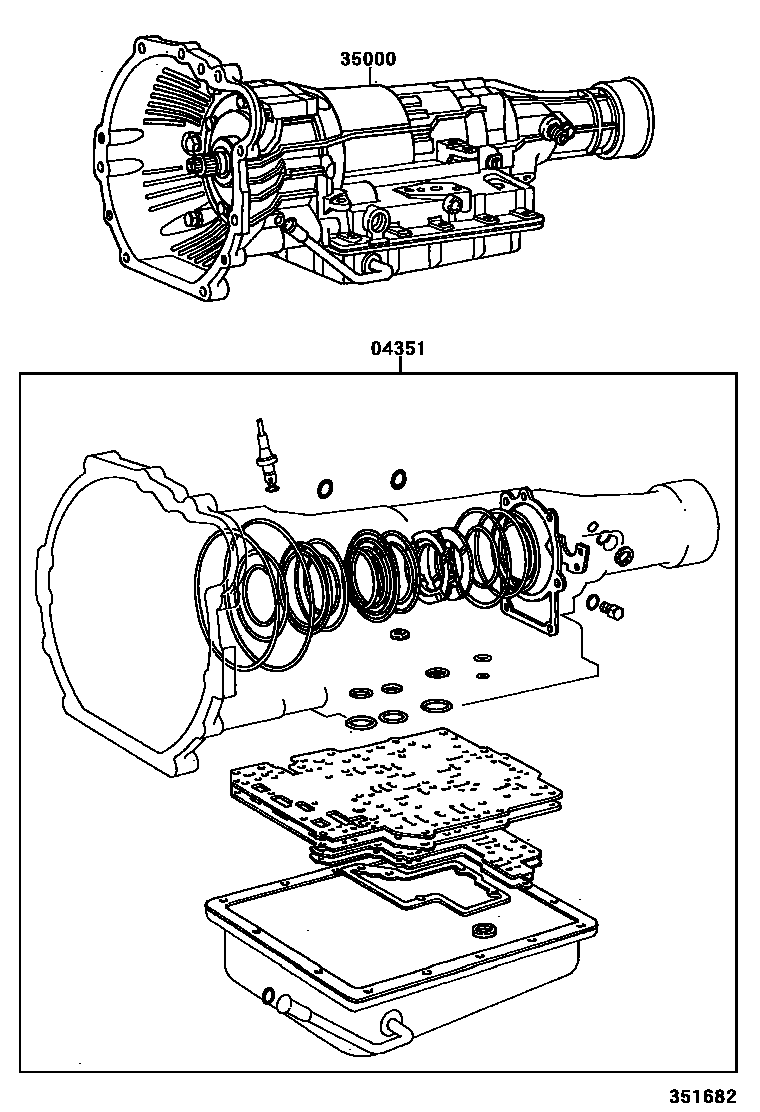

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-14030iGS131..Q199110-199904

main04351-30093iJZS133..4FC199110-200104

main04351-30210iJZS133..RHD..Q199308-199512

SINGAPORE OR HONG KONG OR THAILAND SPEC

35000TRANSMISSION ASSY, AUTOMATIC

main35000-3A700iJZS133..RHD..4FC..GEN..Q199210-199308

W(*66),HONG KONG OR SINGAPORE OR THAILAND SPEC

main35000-3A710iJZS133..RHD..4FC..GEN..Q199210-199308

HONG KONG OR SINGAPORE OR THAILAND SPEC

main35000-3A720iJZS133..4FC..(GCC,GEN)199110-199203

main35000-3A721iJZS133..4FC..(GCC,GEN)199203-199308

main35000-3A730iJZS133..RHD..4FC..GEN..Q199110-199203

W(*66)

main35000-3A731iJZS133..RHD..4FC..GEN..Q199203-199308

W(*66)

main35000-3A830iGS131..Q199110-199512

main35000-3F030iJZS133..RHD..Q199308-199512

HONG KONG OR SINGAPORE OR THAILAND SPEC

main35000-3F050iJZS133..4FC199308-200104

main35000-3F120iJZS133..RHD..Q199308-199512

W(ABS)

main35000-3F310iGS131199512-199904

2 parts on this diagram · 2 diagrams in section
