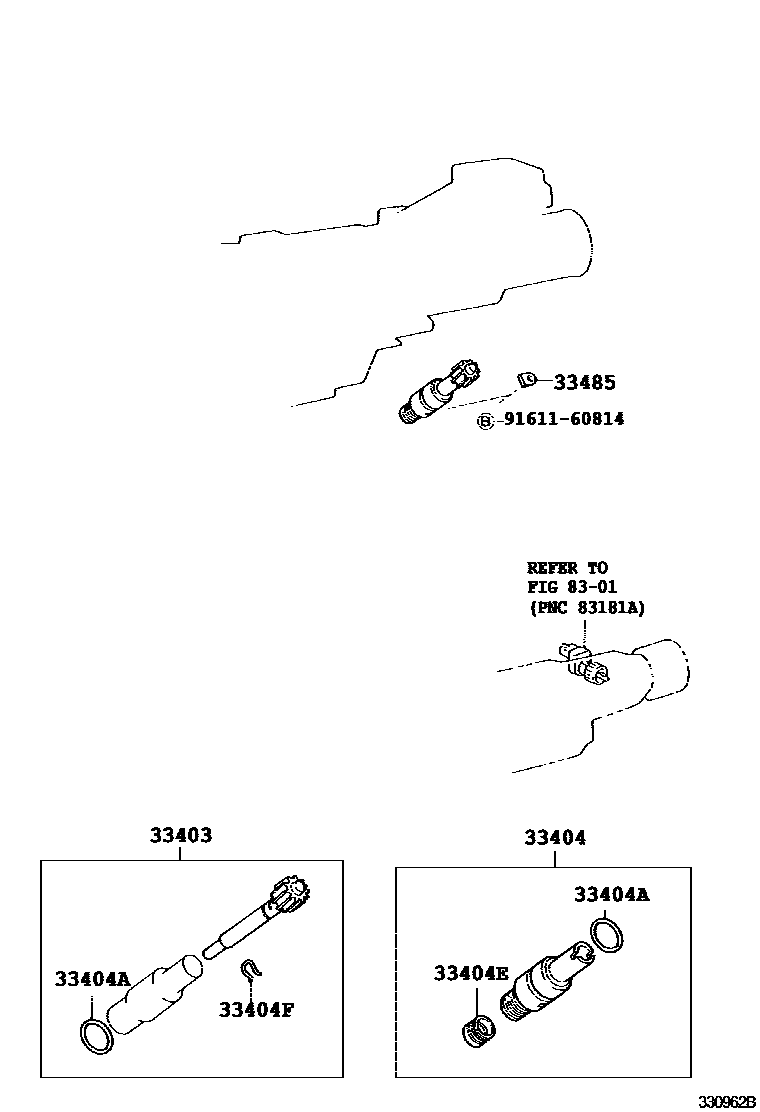

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0003 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29145iLS130,YS132..4F199205-199512

N=31,MARK 31:10

main33403-29325iJZS133..RHD..5F;JZS133..5F..ROY..GCC199110-199512

N=33,MARK 33:10

main33403-39355iLS130,YS132..4F199110-199205

N=31,MARK 31:10

main33403-39375iJZS133..5F..(D,G)199110-199111

N=34,MARK 34:10

main33403-39445iGS131..G199110-199308

N=34,MARK 34:9

main33403-39465iJZS133..5F..(D,G,J);JZS133..LHD..5F..GEN..Q199111-200104

N=34,MARK 34:10

main33403-39485iGS131..G199308-199512

N=34,MARK 34:9

main33482-39045iLS130..4H199110-199512

N=20,MARK 20:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLS130,YS132..4F199205-199512

main33404-35010iLS130..4H199110-199512

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLS130..4H199110-199512

main96711-24030iLS130,YS132..4F199205-199512

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLS130..4H199110-199512

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGS131,JZS133,LS130,YS132..MTM199110-200104

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLS130..4H199110-199512

8301METER

→ Go to FIG 83-01

9161160814

main91611-60814

8 parts on this diagram · 2 diagrams in section
