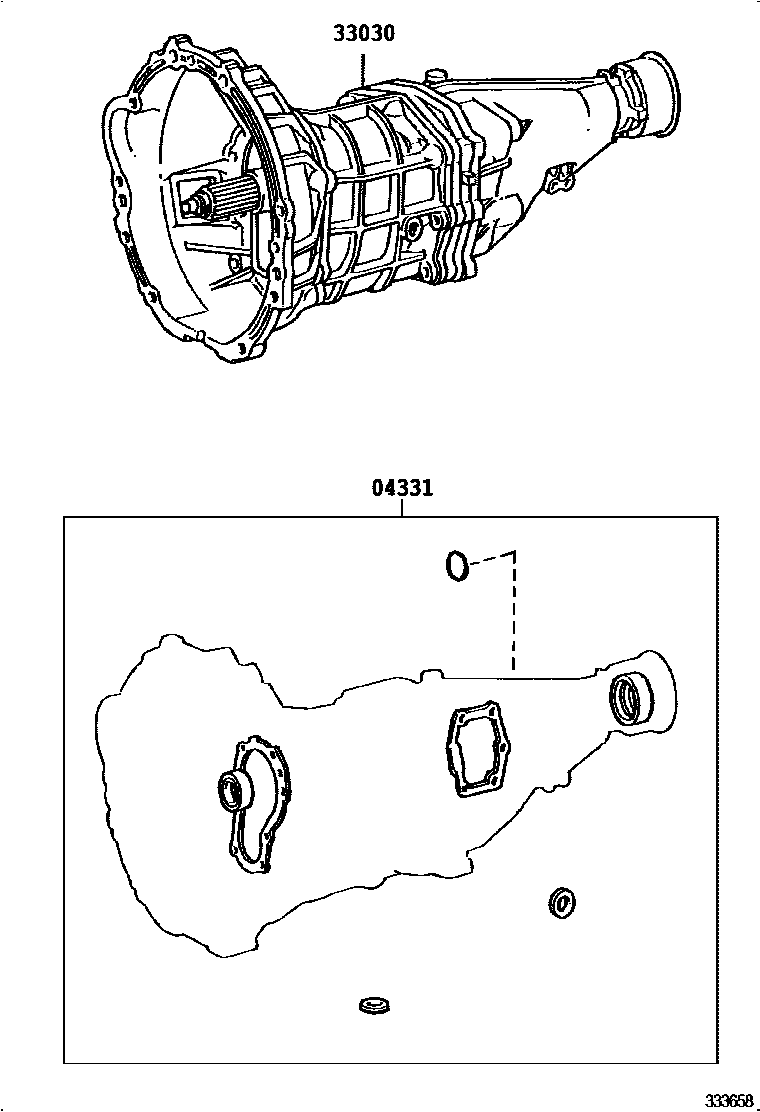

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-30090iLS130..4H199110-199512

main04331-30100iGS131,JZS133,LS130,YS132..4F,5F199110-200104

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-3A380iGS131..G199110-199512

main33030-3A430iYS132199110-199512

main33030-3A440iLS130..4F199110-199512

main33030-3A460iJZS133..5F..J199212-199308

195/65R15

main33030-3A480iLS130..4H199110-199512

main33030-3A500iJZS133..RHD..5F;JZS133..5F..ROY..GCC199110-199512

2 parts on this diagram · 2 diagrams in section
