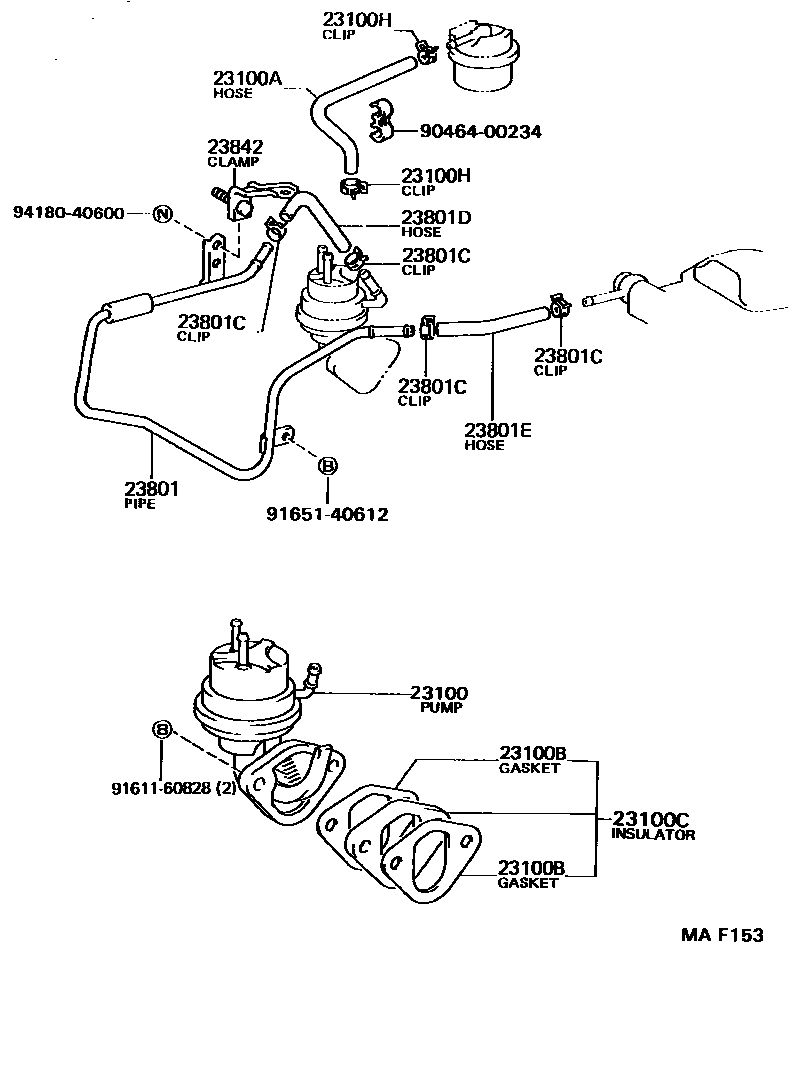

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-73041i4Y..YS132199110-199512

23100AHOSE, FUEL

main95333-08040i4Y..YS132199110-199512

23100BGASKET, FUEL PUMP

main90923-05022×2i4Y..YS132199110-199512

23100CINSULATOR, FUEL PUMP

main90923-06014i4Y..YS132199110-199512

23100HCLIP(FOR FUEL HOSE)

main96132-30800×2i4Y..YS132199110-199512

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i4Y..YS132199110-199512

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×4i4Y..YS132199110-199512

23801DHOSE, FUEL PIPE, NO.1

main95333-06010i4Y..YS132199110-199512

L=100

23801EHOSE, FUEL PIPE, NO.2

main95333-06010i4Y..YS132199110-199512

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-71012i4Y..YS132199110-199512

9046400234

main90464-00234

9161160828

main91611-60828

9165140612

main91651-40612

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
