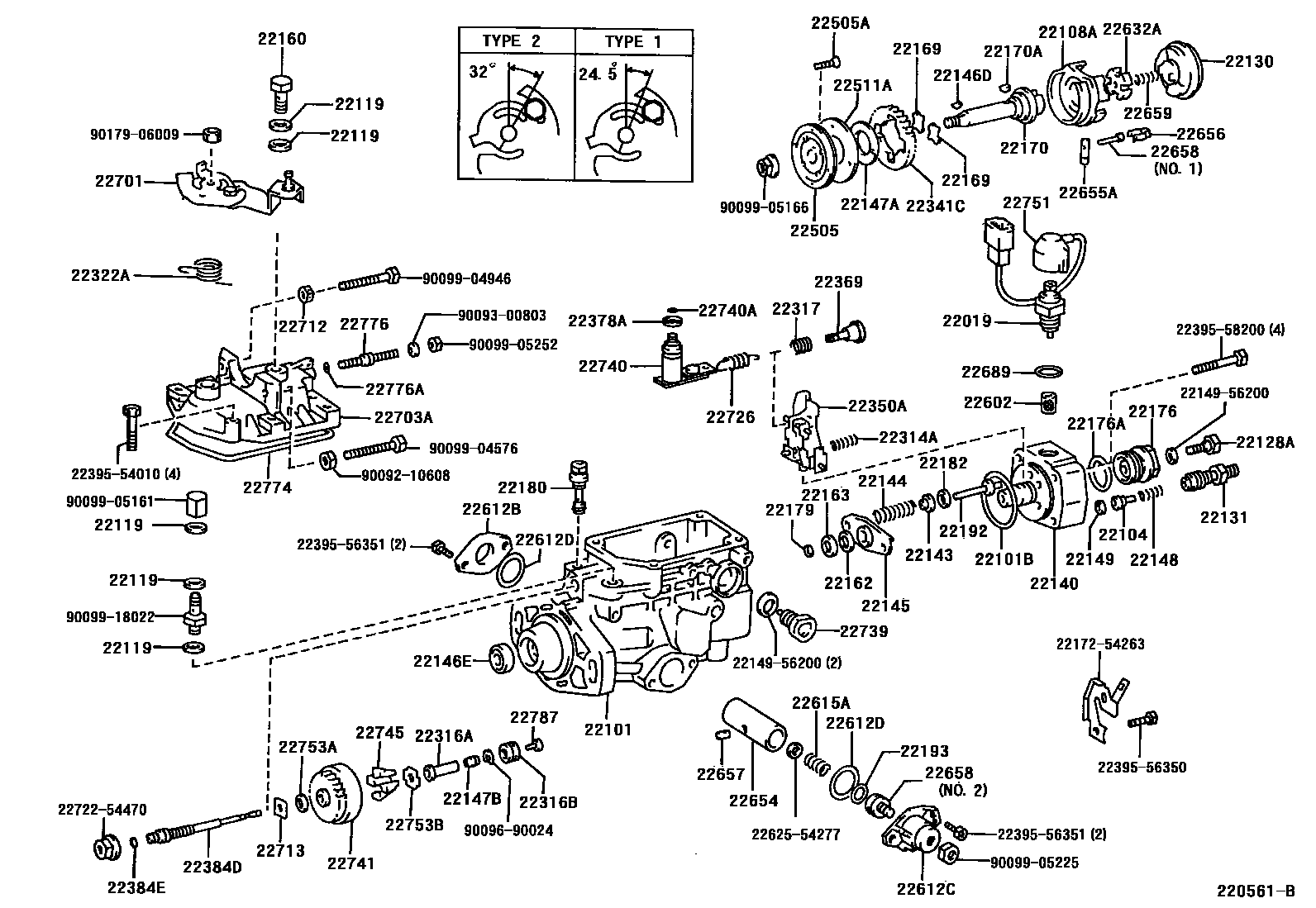

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.85
ID=0.70
ID=0.95
ID=0.60
ID=0.95
ID=0.65
ID=0.85
ID=1.15
ID=0.8
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.15,L=7.0
K=0.15,L=6.2
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22612BCOVER, TIMER
22612CCOVER, TIMER
22615ASPRING, TIMER OUTER
K=1.7,L=27.9,NO.1
K=1.7,L=27.9
K=3.00,L=37.3
K=2.50,L=38.2
K=2.70,L=39.2
K=0.10,L=37.2
K=0.10,L=37.2,NO.2
K=0.11,L=35.5,NO.2
K=0.11,L=35.5
K=0.12,L=35.0,NO.2
K=0.13,L=34.6,NO.2
K=0.14,L=34.3,NO.2
K=0.12,L=35.9
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
NO.1
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
TYPE 1
TYPE 2
MARK 269
MARK 270
22703ACOVER SUB-ASSY, GOVERNOR
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22726SPRING, SPEED CONTROL
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217254263CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54263
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2262554277WASHER, TIMER SENSOR ADJUSTING
main22625-54277
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009210608
main90092-10608
9009300803
main90093-00803
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905166
main90099-05166
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
95 parts on this diagram · 3 diagrams in section
