CARBURETOR ASSEMBLY

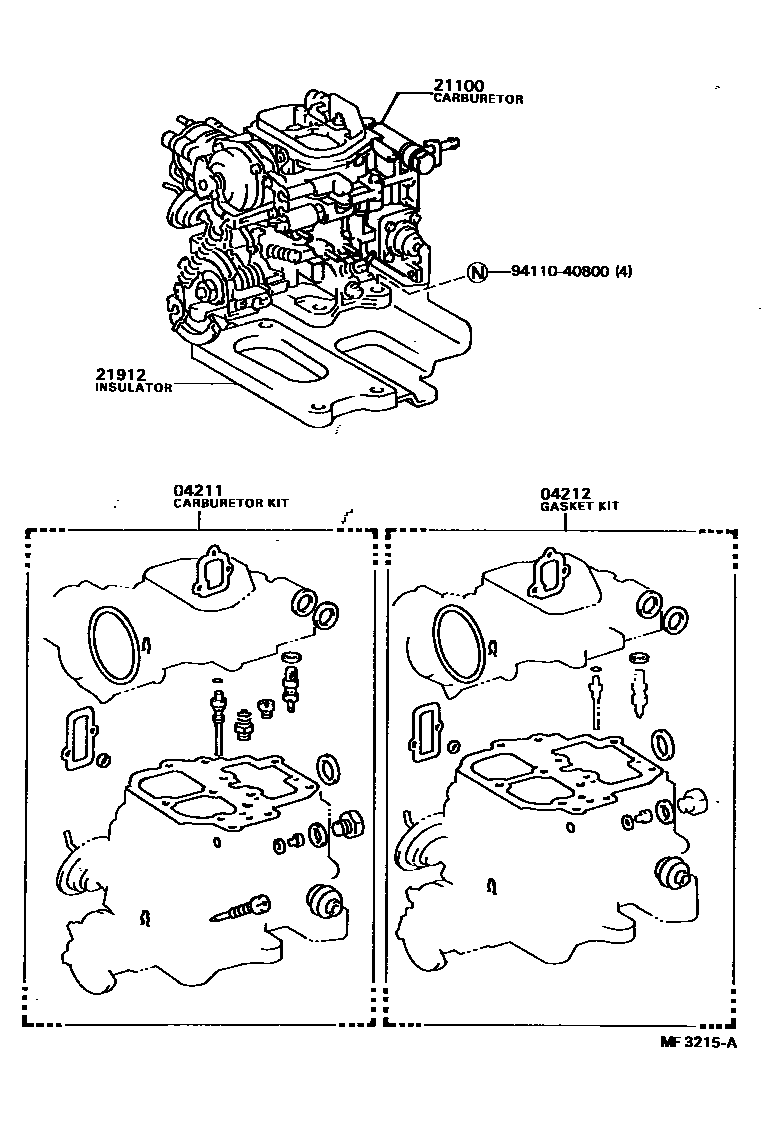

Parts diagram

04211CARBURETOR KIT

main04211-73211i199110-199208

main04211-73212i199208-199512

04212GASKET KIT, CARBURETOR

main04212-73062i199110-199208

main04212-73063i199208-199512

21100CARBURETOR ASSY

main21100-73280i199110-199512

21912INSULATOR, CARBURETOR HEAT

main21912-72011i199110-199512

9411040800

main94110-40800

5 parts on this diagram · 1 diagram in section
