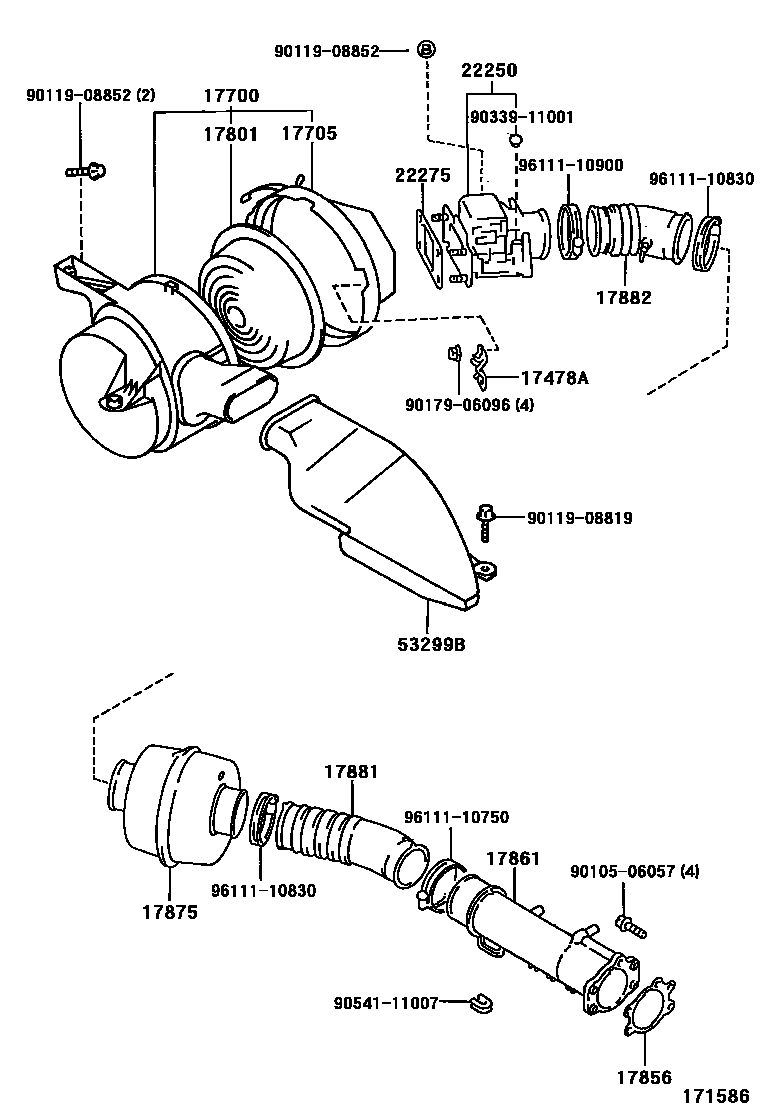

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17478APLATE, LOCK

main17478-43010i1GFE..GS131199110

17700CLEANER ASSY, AIR

main17700-46120i2JZGE..JZS133199110-200104

main17700-54600i2L..LS130199110-199512

main17700-70080i1GFE..GS131199110

main17700-73190i4Y..YS132199110-199512

main17700-73200i4Y..YS132199110-199512

W(HOT AIR INTAKE)

17705CAP SUB-ASSY, AIR CLEANER

main17705-42130i1GFE..GS131199110

main17705-46090i2JZGE..JZS133199110-200104

main17705-73080i4Y..YS132199110-199512

main17705-73110i2L..LS130199110-199512

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46050i2JZGE..JZS133199110-200104

main17801-54090i2L..LS130199110-199512

main17801-70020i1GFE..GS131199110

main17801-73010i4Y..YS132199110-199512

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GS131199110

17861CONNECTOR, INTAKE AIR

main17860-46030i2JZGE..JZS133199110-199512

sub17860-46031

main17860-46031i2JZGE..JZS133199512-200104

main17861-70080i1GFE..GS131199110

17875PIPE, INTAKE AIR CONNECTOR

main17875-46040i2JZGE..JZS133199110-200104

main17875-70120i1GFE..GS131199110

17881HOSE, AIR CLEANER, NO.1

main17881-16210i4Y..YS132199110-199512

main17881-46110i2JZGE..JZS133199110-200104

main17881-54440i2L..LS130199110-199512

main17881-70240i1GFE..GS131199110

17882HOSE, AIR CLEANER, NO.2

main17880-73020i4Y..YS132199110-199512

main17882-46090i2JZGE..JZS133199110-200104

main17882-70060i1GFE..GS131199110

22250METER ASSY, INTAKE AIR FLOW

main22250-70270i1GFE..GS131199110

22275GASKET, AIR FLOW METER

main22275-43010i1GFE..GS131199110

53299BDUCT, COOL AIR INTAKE

main53299-30220iLS130199110-200104

9010506057

main90105-06057

9011908819

main90119-08819

9011908852

main90119-08852

9017906096

main90179-06096

9033911001

main90339-11001

9054111007

main90541-11007

9611110750

main96111-10750

9611110830

main96111-10830

9611110900

main96111-10900

21 parts on this diagram · 4 diagrams in section
