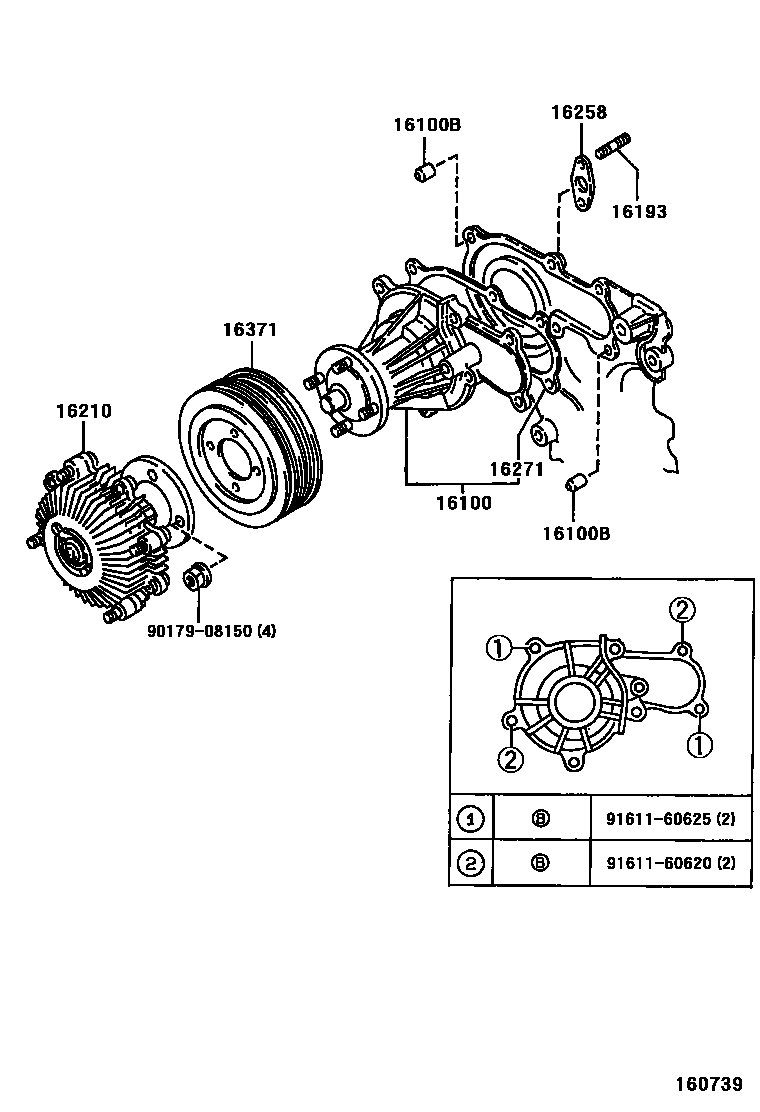

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49835i2JZGE..JZS133199110-199506

main16100-49836i2JZGE..JZS133199506-199906

main16100-49865i2JZGE..JZS133199906-199909

main16100-49866i2JZGE..JZS133199909-200006

main16100-49867i2JZGE..JZS133200006-200104

main16100-59155i2L..LS130199110-199512

main16100-79036i4Y..YS132199110-199512

main16100-79116i1GFE..GS131199110-199803

main16100-79117i1GFE..GS131199803

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040×2i1GFE..GS131199110

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GS131199110

main16193-46030×2i2JZGE..JZS133199906-200104

main16193-46040×5i2JZGE..JZS133199110-199906

16210COUPLING ASSY, FLUID

main16210-46040i2JZGE..JZS133199110-199708

main16210-46041i2JZGE..JZS133199708-199906

main16210-46051i2JZGE..JZS133199906-199909

main16210-46052i2JZGE..JZS133199909-200104

main16210-54130i2L..LS130199110-199512

main16210-70040i1GFE..GS131199110

main16210-73010i4Y..YS132199110-199512

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GS131199110

16271GASKET, WATER PUMP

main16124-70041i1GFE..GS131199110

main16271-54020i2L..LS130199110-199512

16371PULLEY, FAN

main16371-46020i2JZGE..JZS133199110-199609

main16371-46030i2JZGE..JZS133199906-200104

main16371-54030i2L..LS130199110-199512

main16371-70060i1GFE..GS131199110

main16371-73011i4Y..YS132199110-199512

9017908150

main90179-08150

9161160620

main91611-60620

9161160625

main91611-60625

10 parts on this diagram · 5 diagrams in section
