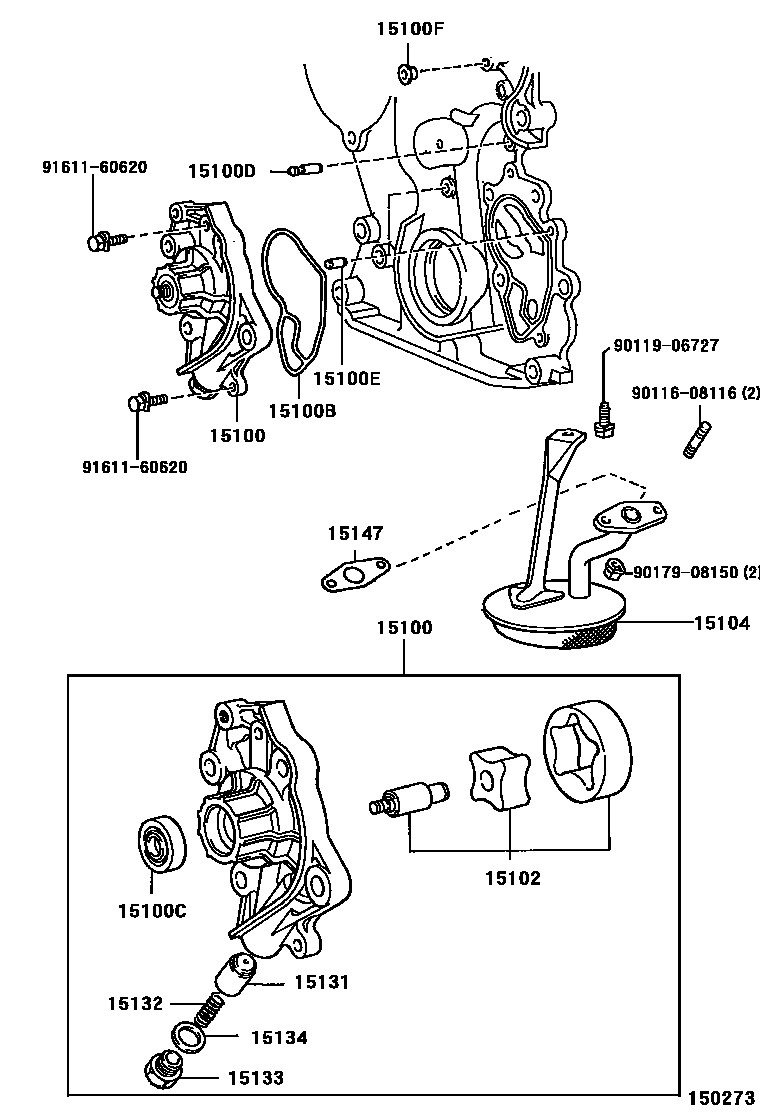

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-46040i2JZGE..JZS133199110-199304

main15100-46041i2JZGE..JZS133199304-199602

main15100-46042i2JZGE..JZS133199602-200104

main15100-70030i1GFE..GS131199110

main15100-71010i4Y..YS132199110-199512

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS131199110

main96721-24022i2JZGE..JZS133199110-200104

N0.1

main96721-24031i2JZGE..JZS133199110-200104

N0.2

15100CSEAL(FOR OIL PUMP)

main90029-21005i1GFE..GS131199110

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS131199110

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010i1GFE..GS131199110

15100FBUSH (FOR OIL PUMP)

main90029-38302i1GFE..GS131199110

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS131199110

main15102-71010i4Y..YS132199110-199512

15104STRAINER SUB-ASSY, OIL

main15104-46020i2JZGE..JZS133199110-200104

main15104-54033i2L..LS130199110-199512

main15104-70060i1GFE..GS131199110

15131VALVE, OIL PUMP RELIEF

main15131-17010i2JZGE..JZS133199304-200104

main15131-24010i1GFE..GS131199110-199512

main15131-46040i2JZGE..JZS133199110-199304

main15131-54010i2L..LS130199110-199512

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GS131199110-199512

main15132-46020i2JZGE..JZS133199110-200104

main15132-54010i2L..LS130199110-199512

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JZS133199110-200104

main15133-20010i1GFE..GS131199110

main15133-24010i4Y..YS132199110-199512

main15133-54010i2L..LS130199110-199512

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i2JZGE..JZS133199110-199508

main15134-67020i2JZGE..JZS133199508-200104

main15134-70030i1GFE..GS131199110

15147GASKET, OIL STRAINER

main15147-46010i2JZGE..JZS133199110-200104

main15147-70021i1GFE..GS131199110-199808

main15147-70030i1GFE..GS131199808

9011608116

main90116-08116

9011906727

main90119-06727

9017908150

main90179-08150

9161160620

main91611-60620

17 parts on this diagram · 4 diagrams in section
