HEATING & AIR CONDITIONING - COOLER PIPING

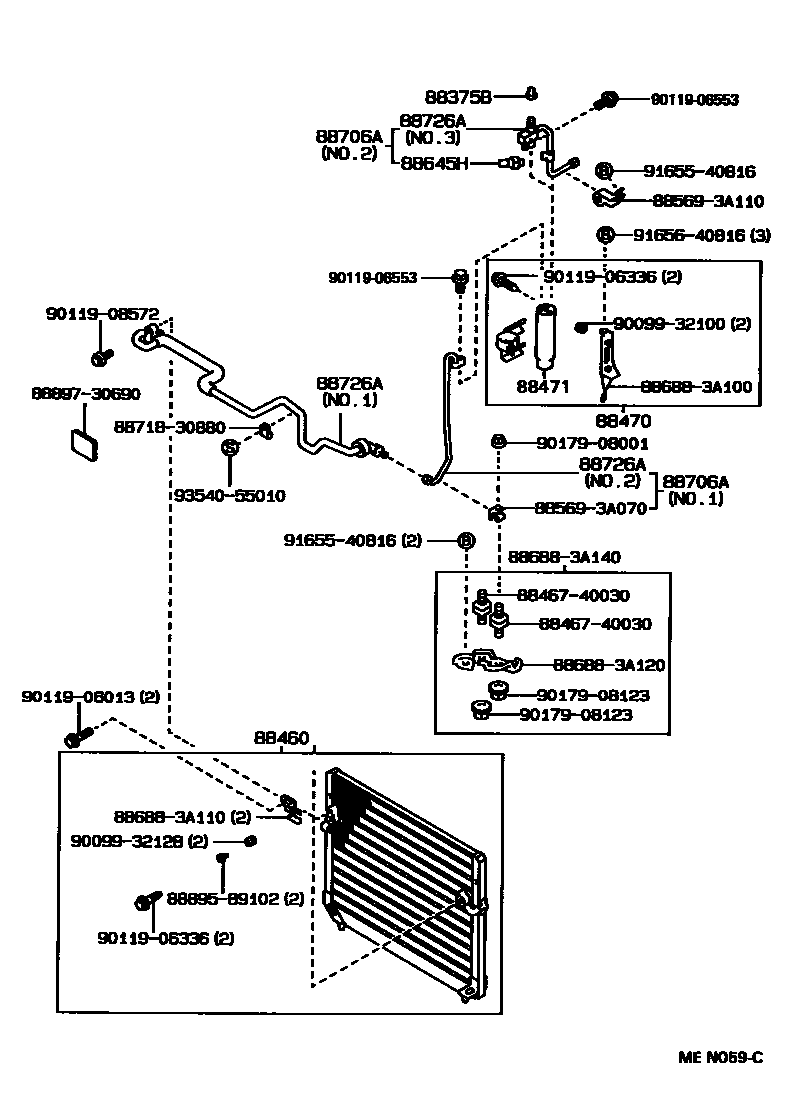

Parts diagram
88375BCAP, SERVICE VALVE, NO.1
main88375-20010i198709-198908
88460CONDENSER ASSY, COOLER
main88460-30540i198709-198908
main88460-30550i198709-198908
main88460-30560i198709-198908
main88460-30580i198908-199110
main88460-30590i198908-199110
88470RECEIVER & DRYER ASSY, COOLER
main88470-30490i198709-198908
main88470-30510i198908-199110
88471TANK, RECEIVER AIR CONDITIONER
main88471-30330i198709-198908
main88471-30340i198709-198908
main88471-30350i199008-199110
88645HSWITCH, PRESSURE NO.1
main88645-30280×2i198709-198807
main88645-30281×2i198909-199110
main88645-30300i198811-198909
main88645-30320×2i198909-199007
NO.1
88706ATUBE SUB-ASSY, LIQUID, A
main88706-30250i198908-199110
NO.1
main88706-30260i198709-198908
NO.2,PLANT NO.A21-26
main88706-30290i198709-198908
NO.2
main88706-30300i199007-199110
NO.3
main88706-30310i198908-198909
NO.2,PLANT NO.M22
main88706-30320i198709-198908
NO.3
main88706-30330i198709-198908
NO.2
main88706-30370i198909-199110
NO.2,PLANT NO.A21-26
main88706-30380i198909-199110
NO.2,PLANT NO.M22
main88706-30400i198909-199110
NO.3
main88706-30420i199007-199110
NO.2,PLANT NO.M22
88726APIPE, COOLER REFRIGERANT LIQUID, A
main88726-3A010i198709-199110
NO.6
main88726-3A020i198709-199110
NO.6
main88726-3A030i198709-199110
NO.5
main88726-3A040i198709-199110
NO.5
main88726-3A050i198709-199110
NO.4
main88726-3A060i198709-198908
NO,4; W(REAR AIR CONDITIONER),NO.4
main88726-3A070i198709-198908
NO.4
main88726-3A080i198909-199007
NO.4
main88726-3A090i198908-199110
NO.1
main88726-3A100i198709-198910
NO.2
main88726-3A110i198909-199110
NO.3,PLANT NO.A21-26
main88726-3A130i198709-198910
NO.2
main88726-3A230i198709-198910
NO.2
main88726-3A250i198909-199110
NO.3,PLANT NO.M22
main88726-3A270i198709-198910
NO.1
main88726-3A290i198709-198910
NO.5
main88726-3A310i198909-199110
NO.3,PLANT NO.A21-26
main88726-3A320i198909-199110
NO.3,PLANT NO.M22
main88726-3A340i198908-199110
NO.1
main88726-3A390i199007-199110
NO.1,PLANT NO.M22
main88726-3A400i199007-199110
NO.4
main88726-91701i198709-199110
NO.6
main88726-91702i198709-199110
NO.5
8846740030CUSHION, COOLER CONDENSER, NO.1
main88467-40030
885693A070CLAMP (FOR COOLER RELAY)
main88569-3A070
885693A110CLAMP (FOR COOLER RELAY)
main88569-3A110
886883A100BRACKET, COOLER DIAPHRAGM
main88688-3A100
886883A110BRACKET, COOLER DIAPHRAGM
main88688-3A110
886883A120BRACKET, COOLER DIAPHRAGM
main88688-3A120
886883A140BRACKET, COOLER DIAPHRAGM
main88688-3A140
8871830880PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30880
8889589102HOLDER, FUSE
main88895-89102
8889730690VALVE, COOLER MAGNET
main88897-30690
9009932100
main90099-32100
9009932128
main90099-32128
9011906013
main90119-06013
9011906336
main90119-06336
9011906553
main90119-06553
9011908572
main90119-08572
9017908001
main90179-08001
9017908123
main90179-08123
9165540816
main91655-40816
9165640816
main91656-40816
9354055010
main93540-55010

28 parts on this diagram · 14 diagrams in section
