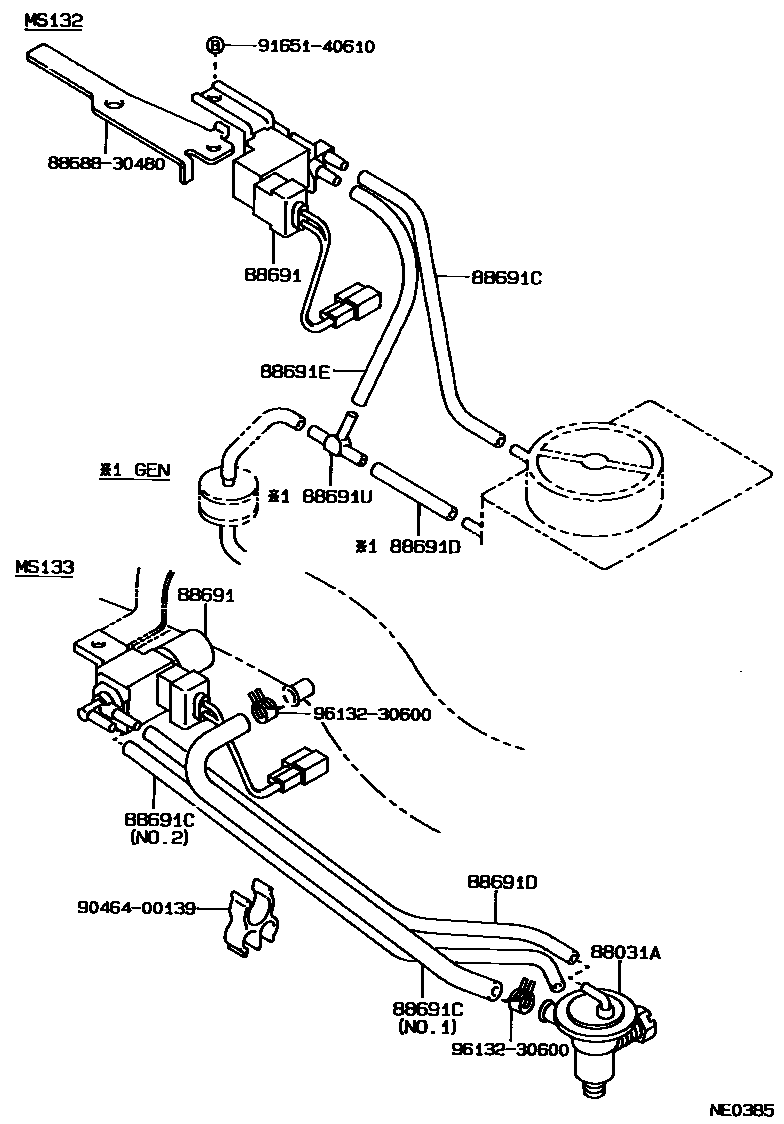

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

88031ACTUATOR SET, IDLE-UP

main88031-12150iLS130..RHD198709-198908

main88031-28010iYS132198709-199110

main88031-30060iLS130..LHD198709-198908

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-22020iMS133..SAL,SALEX198709-199110

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-30680iLS130..LHD198709-198908

main88690-30740iLS130..RHD198709-198908

main88691-30470iYS132198709-199110

main88691-30480iMS133..SAL,SALEX198709-199110

main88691-30490iMS132..4F;MS132..DLX,ROY,SAL198709-199110

main88691-90K02iLS130198908-199110

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-22010iMS133..SAL,SALEX198709-199110

NO.1

main90999-92002iLS130; MS132..GCC; MS132..GEN198908-199110

L=300

main90999-92003iMS133..SAL,SALEX; YS132198709-199110

L=600; L=600,NO.2

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main90999-92002iMS132198908-199110

L=300

main90999-92003iLS130198908-198910

L=600

main95411-19960iYS132198709-199110

*H,L=600,MARK=#*

88691EHOSE, VACUUM (FOR IDLE UP DIVICE), NO.3

main90999-92002iMS132..GCC198709-198908

L=300

88691UWAY(FOR VACUUM HOSE)

main90413-04001iMS132..4F;MS132..(DLX,ROY,SAL)..GEN198709-198908

8868830480BRACKET, COOLER DIAPHRAGM

main88688-30480

9046400139

main90464-00139

9165140610

main91651-40610

9613230600

main96132-30600

11 parts on this diagram · 3 diagrams in section
