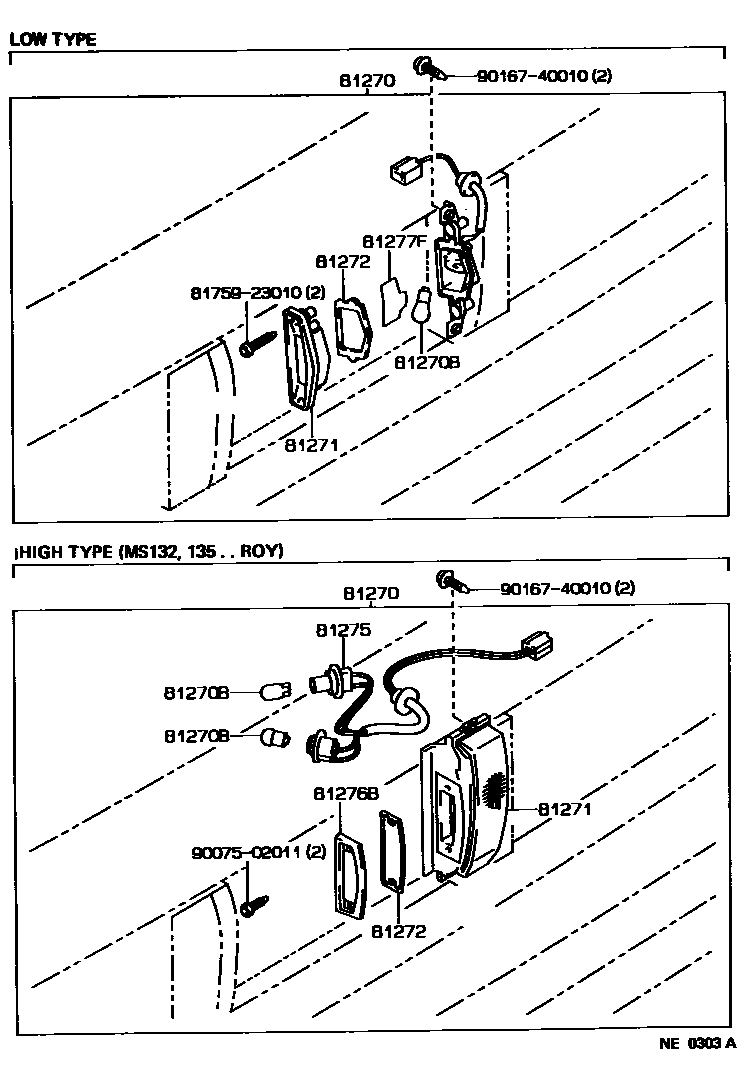

REAR LICENSE PLATE LAMP

0001 1SIDE LIGHTING 0002 1UPPER LIGHTING

81270LAMP ASSY, LICENSE PLATE

main81270-30140iMS132,135..ROY..GEN198709-198908

RH

main81270-30141iMS132,135..ROY..GEN198908-199110

RH

main81270-30150iMS132,135..ROY..GEN; MS135..SED..GCC;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)198709-199110

RH; SIDE LIGHTING(LOW),RH

main81270-30170iMS133,135..HT;GS131,LS130,MS13#,YS132..SED..GEN198709-199110

main81270-91708iMS132..WG198709-198908

main81270-91709iMS132..WG198908-199110

main81690-30040iMS132,135..ROY..GEN198709-198908

LH

main81690-30041iMS132,135..ROY..GEN198908-199110

LH

main81690-30050iMS132,135..ROY..GEN; MS135..SED..GCC;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)198709-199110

LH; SIDE LIGHTING(LOW),LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-11039×2iMS132,135..ROY..GEN198709-199110

12V 16W

main90981-12012×2iLS130,MS13#,YS132..SED198709-199110

12V 7.5W

main99132-12050×2iMS13#..HT,WG;GS131,LS130,MS13#,YS132..SED..GEN198709-199110

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-16151×2iMS132,135..ROY..GEN; MS135..SED..GCC;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)198709-199110

SIDE LIGHTING(LOW)

main81271-24010×2iGS131;MS133,135..HT; LS130,MS13#,YS132..SED..GEN198709-199110

UPPER LIGHTING

main81271-30140iMS132,135..ROY..GEN198709-198908

RH

main81271-30141iMS132,135..ROY..GEN198908-199110

RH

main81271-91710×2iMS132..WG198908-199110

main81271-91C01×2iMS132..WG198709-198908

main81691-30040iMS132,135..ROY..GEN198709-198908

LH

main81691-30041iMS132,135..ROY..GEN198908-199110

LH

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iMS132,135..ROY..GEN; MS135..SED..GCC;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)198709-199110

SIDE LIGHTING(LOW)

main81272-24010×2iGS131;MS133,135..HT; LS130,MS13#,YS132..SED..GEN198709-199110

UPPER LIGHTING

main81272-30140×2iMS132,135..ROY..GEN198709-198908

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-30140×2iMS132,135..ROY..GEN198709-199110

main81275-91704iMS132..WG198709-199110

81276BCOVER, LICENSE PLATE LAMP

main81276-30140×2iMS132,135..ROY..GEN198709-198908

main81276-30170iMS133,135..HT;GS131,LS130,MS13#,YS132..SED..GEN198908-199110

main81276-91704iMS132..WG198709-198908

main81276-91709iMS132..WG198908-199110

81277FSHADE, LICENSE PLATE LAMP

main81277-20210×2iLS130,MS13#,YS132..SED198709-199110

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9007502011

main90075-02011

9016740010

main90167-40010

10 parts on this diagram · 2 diagrams in section
