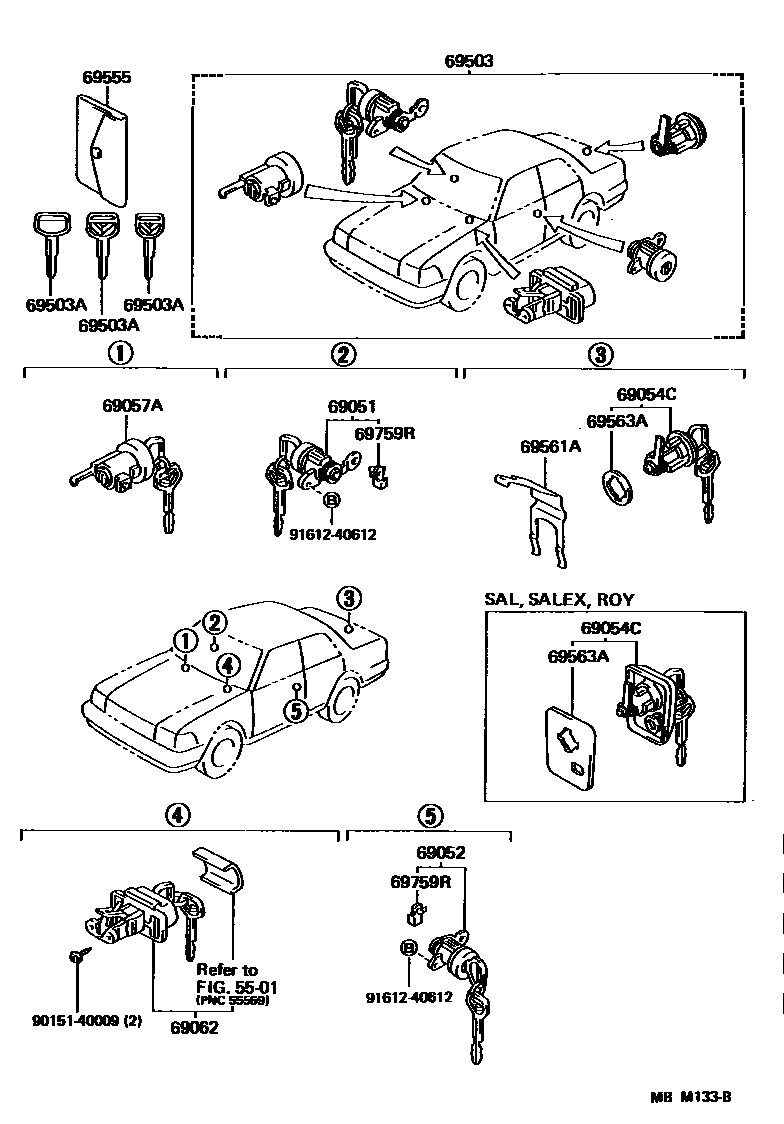

LOCK CYLINDER SET

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30160iGS131,LS130,MS13#,YS132198709-198908

main69051-30161iGS131,LS130,MS13#,YS132198908-199110

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30140iGS131,LS130,MS13#,YS132198709-198908

main69052-30141iGS131,LS130,MS13#,YS132198908-199110

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-91705iMS132..WG198709-198908

main69055-91708iMS132..WG198908-199110

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30140iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

main69055-30141iLS130,MS132,133,YS132..STD198908-199110

main69055-30160iGS131,MS133,135;MS132..SED..(4FC,5F)..(DLX,ROY,SAL)198709-198908

main69055-30161iGS131,MS13#..(HT,SED)..(DLX,ROY,SAL,SALEX)198908-199110

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30080iGS131,LS130,MS13#,YS132198709-198908

main69057-30081iGS131,LS130,MS13#,YS132198908-199110

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30100-02iGS131,LS130,MS13#,YS132198709-198908

MAROON,TRIM3#

main69056-30100-04iLS130,MS13#,YS132198709-198908

BLUE,TRIM8#

main69056-30100-06iMS13#..ROY,SAL,SALEX198709-198908

SABLE,TRIM4#

main69056-30101-02iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198908-199110

MAROON,TRIM3#

main69056-30101-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198908-199110

BLUE,TRIM8#

main69056-30101-06iMS133,135..ROY,SAL,SALEX;GS131,MS132..LHD..(ROY,SAL)198908-199110

SABLE,TRIM4#

69503CYLINDER SET, LOCK

main69005-30470iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

main69005-30471iLS130,MS132,133,YS132..STD198908-199110

main69005-30480iGS131,MS133,135;MS132..SED..(4FC,5F)..(DLX,ROY,SAL)198709-198908

main69005-30481iGS131,MS13#..(HT,SED)..(DLX,ROY,SAL,SALEX)198908-199110

main69005-30520iLS130..RHD..4F198709-198809

SINGAPORE SPEC

main69005-91717iMS132..WG198709-198908

main69005-91721iMS132..WG198908-199110

69503AKEY, BLANK

main90999-00130iGS131,LS130,MS13#,YS132198709-198908

MASTER KEY

main90999-00137iGS131,LS130,MS13#,YS132198709-198908

SUB KEY

main90999-00139iGS131,LS130,MS13#,YS132198709-198908

MASTER KEY,W(*68)

main90999-00163iGS131,LS130,MS13#,YS132198908-199110

MASTER KEY

main90999-00165iGS131,LS130,MS13#,YS132198908-199110

SUB KEY

main90999-00170iGS131,LS130,MS13#,YS132198908-199110

MASTER KEY,W(*68)

69555COVER, KEY

main69555-20010iGS131,LS130,MS13#,YS132198709-199110

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-30060iGS131,LS130,MS13#,YS132..HT,SED198709-199110

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iLS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

main69563-30030iGS131,MS133,135;MS132..SED..(4FC,5F)..(DLX,ROY,SAL)198709-198908

main69563-30031iGS131,MS13#..(HT,SED)..(DLX,ROY,SAL,SALEX)198908-199110

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iGS131,LS130,MS13#,YS132198709-198908

RH

main69759-30050iGS131,LS130,MS13#,YS132198908-199110

GREEN

9015140009

main90151-40009

9161240612

main91612-40612

15 parts on this diagram · 2 diagrams in section
