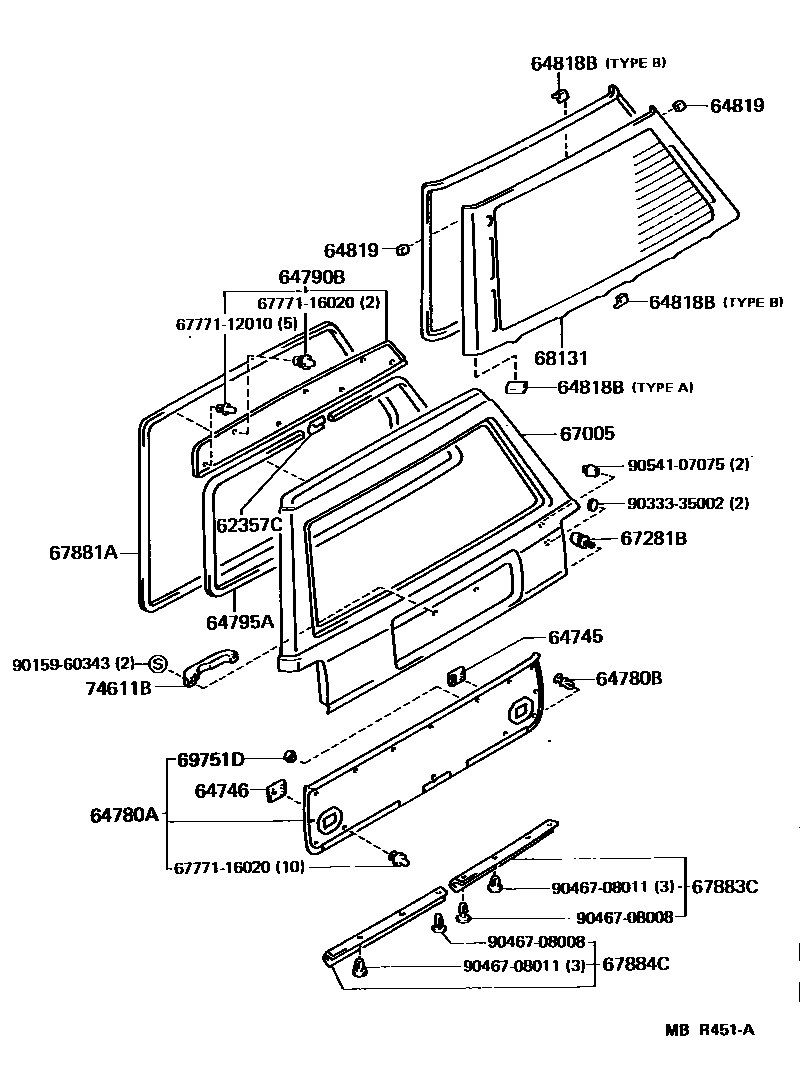

BACK DOOR PANEL & GLASS
62357CCOVER, BACK WINDOW INSIDE TRIM
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64780APANEL ASSY, BACK DOOR TRIM
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
64795ATRIM, BACK WINDOW OPENING
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
64818BSPACER, BACK DOOR GLASS, NO.1
TYPE A
TYPE B
64819SPACER, BACK WINDOW GLASS, NO.2
TYPE A
67005PANEL SUB-ASSY, BACK DOOR
W(REAR WINDOW WIPER)
W(REAR WINDOW WIPER)
67281BSTOPPER, BACK DOOR, LOWER
67881AWEATHERSTRIP, BACK DOOR
67883CWEATHERSTRIP, BACK DOOR, LOWER RH
67884CWEATHERSTRIP, BACK DOOR, LOWER LH
68131GLASS, BACK DOOR
69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)
74611BGRIP, ASSIST
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
6777116020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16020
9015960343
main90159-60343
9033335002
main90333-35002
9046708008
main90467-08008
9046708011
main90467-08011
9054107075
main90541-07075
24 parts on this diagram · 2 diagrams in section
