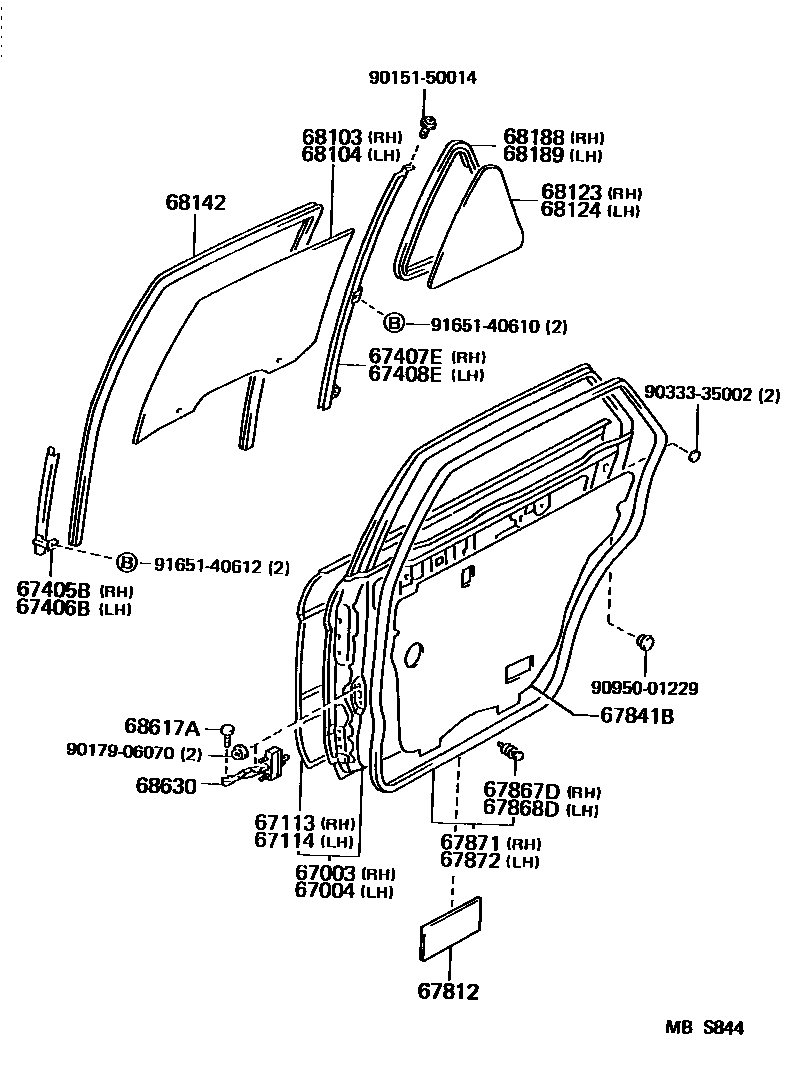

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30340iLS130,YS132198709-199110

main67003-30370iGS131,MS13#..SED..GEN; LS130,YS132198709-199110

W(SIDE PROTECTION MOULDING)

main67003-30380iMS13#..SED..GCC198709-199110

main67003-30440iMS133,135..GCC198709-198908

main67003-30441iMS133,135..HT198908-199110

main67003-91708iMS132..WG..GEN198709-199110

main67003-91709iMS132..WG..GCC198709-199110

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30340iLS130,YS132198709-199110

main67004-30370iGS131,MS13#..SED..GEN; LS130,YS132198709-199110

W(SIDE PROTECTION MOULDING)

main67004-30380iMS13#..SED..GCC198709-199110

main67004-30440iMS133,135..GCC198709-198908

main67004-30441iMS133,135..HT198908-199110

main67004-91708iMS132..WG..GEN198709-199110

main67004-91709iMS132..WG..GCC198709-199110

67113PANEL, REAR DOOR, OUTER RH

main67113-30200iMS132..WG;LS130,YS132198709-199110

main67113-30220iGS131,MS13#..SED; LS130,YS132198709-199110

W(SIDE PROTECTION MOULDING)

main67113-30906iMS133,135..HT198709-199110

67114PANEL, REAR DOOR, OUTER LH

main67114-30210iMS132..WG;LS130,YS132198709-199110

main67114-30230iGS131,MS13#..SED; LS130,YS132198709-199110

W(SIDE PROTECTION MOULDING)

main67114-30906iMS133,135..HT198709-199110

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main67405-30090iMS133,135..HT198709-199110

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-30050iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main67406-30090iMS133,135..HT198709-199110

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30100iGS131,LS130,MS13#,YS132..SED198709-199110

main67407-91702iMS132..WG198709-199110

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30090iGS131,LS130,MS13#,YS132..SED198709-199110

main67408-91702iMS132..WG198709-199110

67812PAD, REAR DOOR SILENCER

main67811-30050×2iGS131,LS130,MS13#,YS132..GEN198709-199110

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-30240iLS130,MS132,133,YS132..DLX,STD199003-199110

RH

main67841-30250iGS131,MS13#..(SED,WG)..(ROY,SAL)199003-199110

RH

main67841-30270iMS133,135..HT199003-199110

RH

main67841-30280iMS132..DLX..GCC198709-199003

RH

main67841-30290iMS132..SAL..GCC198709-198908

RH

main67841-30300iMS133,135..HT198908-199003

RH

main67842-30110iLS130,MS132,133,YS132..DLX,STD199003-199110

LH

main67842-30120iGS131,MS13#..(ROY,SAL)..GEN198709-199003

LH

main67842-30130iMS133,135..HT199003-199110

LH

main67842-30140iMS132..DLX..GCC198709-199003

LH

main67842-30150iMS132..SAL..GCC198709-198908

LH

main67842-30160iMS133,135..HT198908-199003

LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-22020×20iGS131,LS130,MS13#,YS132..SED,WG199007-199110

main67868-30050×18iMS133,135..HT198709-199110

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-22020×20iGS131,LS130,MS13#,YS132..SED,WG199007-199110

TYPE A

main67868-30050×18iMS133,135..HT199007-199110

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30130iLS130,MS132,135,YS132..SED198709-198806

main67871-30131iGS131,LS130,MS13#,YS132..SED198910-199001

main67871-30132iGS131,LS130,MS13#,YS132..SED199001-199110

main67871-30140iMS133,135..GCC198709-198806

main67871-30141iMS133,135..HT198908-199001

main67871-30142iMS133,135..HT199001-199110

main67871-30160iLS130..4H;LS130,MS132..LHD..SED..MTM..GEN; MS132..DLX..GCC; YS132198806-199001

TAXI SPEC

main67871-30161iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132199001-199110

TAXI SPEC

main67871-31010iMS132..WG199003-199110

main67871-91706iMS132..WG198709-198810

main67871-91707iMS132..WG198810-199003

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30130iLS130,MS132,135,YS132..SED198709-198806

main67872-30131iMS132..SED;GS131,LS130,MS135,YS132..(ROY,STD)..GEN198806-198910

main67872-30132iGS131,LS130,MS13#,YS132..SED199001-199110

main67872-30140iMS133,135..GCC198709-198806

main67872-30141iMS133,135..HT198908-199001

main67872-30142iMS133,135..HT199001-199110

main67872-30160iLS130..4H;LS130,MS132..LHD..SED..MTM..GEN; MS132..DLX..GCC; YS132198806-198811

TAXI SPEC

main67872-30170iLS130;MS132..LHD..SED..MTM..GEN; MS132..DLX; YS132198811-199001

TAXI SPEC

main67872-30171iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132199001-199110

TAXI SPEC

main67872-31010iMS132..WG199003-199110

main67872-91706iMS132..WG198709-198810

main67872-91707iMS132..WG198810-199003

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30270iLS130,YS132198709-199110

*TEM,T=4.0

main68113-30280iGS131,LS130,MS13#,YS132..SED198908-199110

*TT,T=4.0,BLUE

main68113-30290iGS131,MS132,135..SED..(ROY,SAL)198709-198908

*TEM,T=4.0,BRONZE

main68113-30310iMS133,135..HT198709-199110

*TT,T=5.0

main68113-30320iMS133,135..HT198709-199110

*TT,T=5.0,BRONZE

main68113-91707iMS132..WG198709-199110

*TT,T=4.0

main68113-91708iMS132..WG198908-199110

*TT,T=4.0,BRONZE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30190iLS130,YS132198709-199110

*TEM,T=4.0

main68114-30200iMS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL)198709-198908

*TEM,T=4.0,BLUE

main68114-30210iMS13#..SED..(ROY,SAL)198908-199110

*TT,T=4.0,BRONZE

main68114-30230iMS133,135..HT198709-199110

*TT,T=5.0

main68114-30240iMS133,135..HT198709-199110

*TT,T=5.0,BRONZE

main68114-91707iMS132..WG198709-199110

*TT,T=4.0

main68114-91708iMS132..WG198908-199110

*TT,T=4.0,BRONZE

68123GLASS, REAR DOOR WINDOW, RH

main68123-30210iLS130,YS132198709-199110

*TEM,T=3.5

main68123-30220iMS133..SAL;GS131,LS130,MS132,135,YS132..SED198908-199110

*TT,T=3.5

main68123-30230iMS13#..SED..(ROY,SAL)198908-199110

*TT,T=3.5,BRONZE

main68123-91709iMS132..WG198709-199110

*TT,T=3.5

main68123-91710iMS132..WG198908-199110

*TT,T=3.5,BRONZE

68124GLASS, REAR DOOR WINDOW, LH

main68124-30150iLS130,YS132198709-199110

*TEM,T=3.5

main68124-30160iMS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL)198709-198908

*TT,T=3.5

main68124-30170iMS13#..SED..(ROY,SAL)198908-199110

*TT,T=3.5,BRONZE

main68124-91709iMS132..WG198709-199110

*TT,T=3.5

main68124-91710iMS132..WG198908-199110

*TT,T=3.5,BRONZE

68142RUN, REAR DOOR GLASS

main68142-30120iGS131,LS130,MS13#,YS132..SED,WG198908-199003

RH

main68142-30121iGS131,LS130,MS13#,YS132..SED,WG199006-199010

RH

main68142-30122iGS131,LS130,MS13#,YS132..SED,WG199010-199110

RH

main68152-30020iGS131,LS130,MS132,135,YS132..SED,WG198709-198908

LH

main68152-30021iGS131,LS130,MS13#,YS132..SED,WG199006-199010

LH

main68152-30022iGS131,LS130,MS13#,YS132..SED,WG199010-199110

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30080iMS132..4F;MS132..SED..(DLX,ROY,SAL);GS131,LS130,MS133,135,YS132..SED198709-199110

main68188-91703iMS132..WG198709-199110

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30060iMS132..4F;MS132..SED..(DLX,ROY,SAL);GS131,LS130,MS133,135,YS132..SED198709-199110

main68189-91703iMS132..WG198709-199110

68617APIN, REAR DOOR CHECK

main68617-30030×2iGS131,LS130,MS13#,YS132198709-199110

68630CHECK ASSY, REAR DOOR

main68630-30070×2iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main68630-30090×2iMS133,135..GCC198709-198908

main68630-30091×2iMS133,135..HT198908-199110

9015150014

main90151-50014

9017906070

main90179-06070

9033335002

main90333-35002

9095001229

main90950-01229

9165140610

main91651-40610

9165140612

main91651-40612

29 parts on this diagram · 6 diagrams in section
