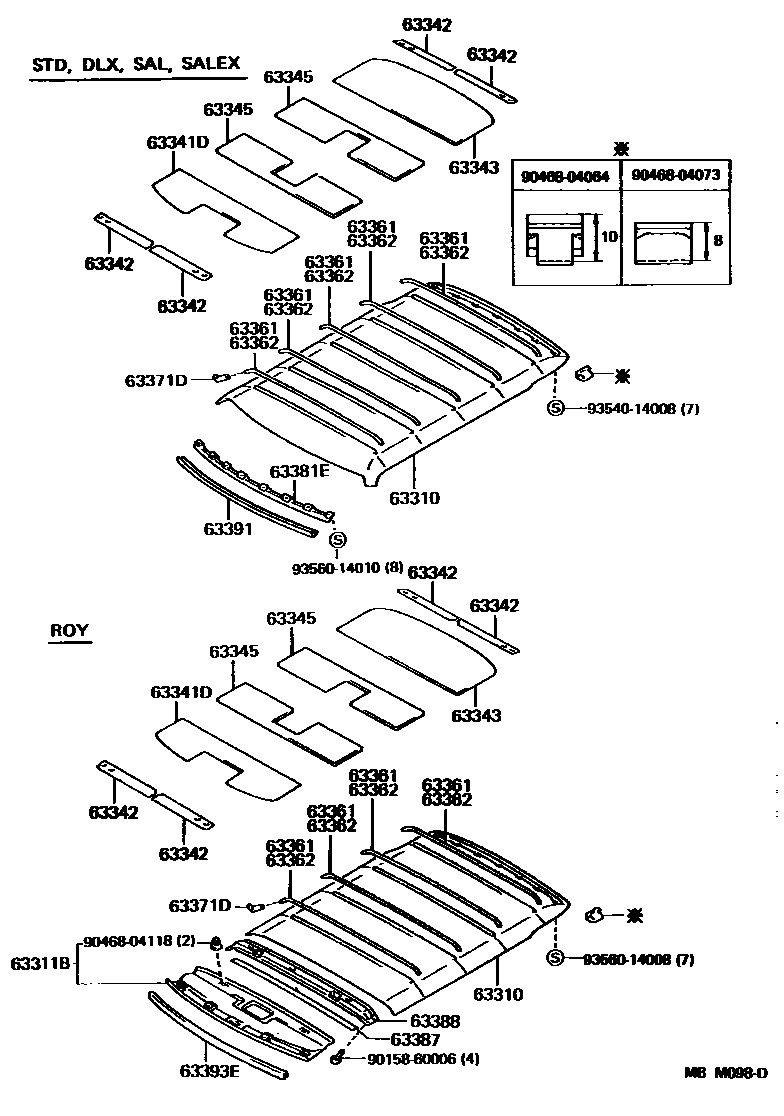

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63310HEADLINING ASSY, ROOF

main63310-30460-04iMS132..DLX..GCC;LS130,MS132,YS132..4F,4H,4HC198709-199110

BLUE,TRIM8#

main63310-30460-06iLS130,MS132,YS132..(4F,5F)..(DLX,STD)198908-199110

SABLE,TRIM3#

main63310-30470-04iMS132,135..ROY..GEN198709-199110

BLUE,TRIM8#

main63310-30470-06iGS131; MS132,135..ROY..GEN198709-198908

SABLE,TRIM3#; SABLE,TRIM3#,4#

main63310-30480-04iMS135..SED..GCC;MS132,133..SED..SAL198709-199110

BLUE,TRIM8#

main63310-30480-06iMS135..SED..GCC;MS132,133..SED..SAL198709-199110

SABLE,TRIM3#,4#

main63310-30500-04iMS132,133..5F..STD198709-199110

BLUE,TRIM8#

main63310-30500-06iMS132,133..5F..STD198709-199110

SABLE,TRIM3#

main63310-30510-04iMS133..SAL..GEN;MS132..RHD..5F..SAL198709-199110

THAILAND SPEC,BLUE,TRIM8#

main63310-30510-06iMS133..SAL..GEN;MS132..RHD..5F..SAL198709-199110

THAILAND SPEC,BROWN,TRIM3#,4#

main63310-91713-04iMS132..WG..GCC198709-198803

BLUE,TRIM8#

main63310-91713-06iMS132..WG..GCC198709-198803

SABLE,TRIM3#,4#

main63310-91716-04iMS132..WG..GEN198709-198803

BLUE,TRIM8#

main63310-91716-06iMS132..WG..GEN198709-198803

SABLE,TRIM3#,4#

main63310-91719-04iMS132..WG..GCC198803-199110

BLUE,TRIM8#

main63310-91719-06iMS132..WG..GCC198803-199110

SABLE,TRIM3#,4#

main63310-91722-04iMS132..WG..GEN198803-199110

BLUE,TRIM8#

main63310-91722-06iMS132..WG..GEN198803-199110

SABLE,TRIM3#,4#

63311BHEADLINING, ROOF, FRONT

main63311-30200-04iMS132,135..ROY..GEN198709-198908

BLUE,TRIM8#

main63311-30200-06iGS131; MS132,135..ROY..GEN198709-198908

SABLE,TRIM3#; SABLE,TRIM3#,4#

main63311-30201-04iMS132,135..ROY..GEN198908-199110

BLUE,TRIM8#

main63311-30201-06iGS131..ROY; MS132,135..ROY..GEN198908-199110

SABLE,TRIM3#; SABLE,TRIM3#,4#

main63311-30210-04iMS133198709-198908

BLUE,TRIM8#

main63311-30210-06iMS133198709-198908

SABLE,TRIM3#,4#

main63311-30211-04iMS133,135..HT198909-199110

BLUE,TRIM8#

main63311-30211-06iMS133,135..HT198908-199110

SABLE,TRIM3#,4#

main63311-30220-04iMS135..GCC198709-198908

BLUE,TRIM8#

main63311-30220-06iMS135..GCC198709-198908

SABLE,TRIM3#,4#

main63311-30230-04iMS133,135..GCC198709-198908

W(MOON ROOF),BLUE,TRIM8#

main63311-30230-06iMS133,135..GCC198709-198908

W(MOON ROOF),SABLE,TRIM3#,4#

main63311-30231-04iMS133,135..HT198908-198909

BLUE,TRIM8#

main63311-30231-06iMS133,135..HT198908-199110

W(MOON ROOF),SABLE,TRIM3#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-91706×2iMS132..WG..GCC198709-199110

main63341-91707×2iMS132..WG..GEN198709-199110

63341DPAD, ROOF SILENCER, FRONT

main63341-30120iGS131,LS130,MS13#,YS132..SED198709-199110

main63341-30130iMS133,135..HT198709-199110

63342PAD, ROOF SILENCER, NO.2

main63342-30060×2iMS132..WG..GEN198908-199110

430 X 60

main63342-30070×4iMS133,135..HT198709-199110

main63342-91704×2iMS132..WG..GEN198709-199110

300 X 150

main63342-91705iMS132..WG..GCC198709-199110

63343PAD, ROOF SILENCER, NO.3

main63343-30080iGS131,LS130,MS13#,YS132..SED198709-199110

main63343-30090iMS133,135..GCC198709-198908

main63343-30091iMS133,135..HT198908-199110

main63343-91704×2iMS132..WG198712-199110

63345PAD, ROOF SILENCER, NO.5

main63345-30030×2iGS131,LS130,MS132,135,YS132..SED198709-198908

main63345-30031×2iGS131,LS130,MS13#,YS132..SED198908-199110

main63345-30040iMS133,135..HT198709-199110

main63345-91702iMS132..WG198712-198803

main63345-91703iMS132..WG198803-199110

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-30120×5iMS135..SED..GCC;LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)198709-199110

L=1025,RED

main63361-30130×5iMS135..SED..GCC;LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)198709-199110

L=1028,GREEN

main63361-30140×5iGS131..SAL;MS132,133..5F..STD; MS133..SAL..GEN;MS132..RHD..5F..SAL198709-199110

L=1015,RED; THAILAND SPEC,L=1015,RED

main63361-30150×4iGS131198812-198908

INDONESIA SPEC,L=1020,GREEN

main63361-30160iMS132..WG; MS135..SED..GCC;LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)198709-199110

L=1041,YELLOW

main63361-30170×4iGS131,MS132,135..ROY..GEN; MS132..SED..SAL198709-198908

L=1044,PINK

main63361-30180×5iGS131..ROY; GS131..SAL;MS133..STD; MS133..SAL..GEN198908-199110

L=1038,YELLOW; THAILAND SPEC,L=1038,YELLOW

main63361-30190×5iGS131..ROY; GS131..SAL;MS133..STD; MS133..SAL..GEN198908-199110

L=1041,WHITE; THAILAND SPEC,L=1041,WHITE

main63362-30170×5iMS132..DLX..GCC;LS130,MS132,YS132..4F,4H,4HC198709-198908

L=1044,PINK

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-30170×5iMS132..DLX..GCC;LS130,MS132,YS132..4F,4H,4HC198709-198908

L=1044,PINK

main63362-30120×4iMS132,135..ROY..GEN198908-199110

L=1032

main63362-30130×4iMS132,135..ROY..GEN198908-199110

L=1035,BLUE

main63362-30140×4iGS131,MS132,135..ROY..GEN198709-198908

L=1038,YELLOW

main63362-30150×5iGS131..SAL;MS132,133..5F..STD; MS133..SAL..GEN;MS132..RHD..5F..SAL198709-199110

L=1032; THAILAND SPEC,L=1032

main63362-30160×5iGS131..SAL;MS132,133..5F..STD; MS133..SAL..GEN;MS132..RHD..5F..SAL198709-199110

L=1035,BLUE; THAILAND SPEC,L=1035,BLUE

main63362-30170iMS132,135..ROY..GEN; MS132..WG; MS133..SAL;MS135..SED..GCC;LS130,MS132,YS132..SED..(DLX,SAL,STD)198908-199110

L=1047,ORANGE

main63362-30180×5iGS131..ROY; GS131..SAL;MS133..STD; MS133..SAL..GEN198908-199110

L=1044,PINK; THAILAND SPEC,L=1044,PINK

main63362-30190×5iGS131..ROY; GS131..SAL;MS133..STD; MS133..SAL..GEN198908-199110

L=1044,ORANGE; L=1047,ORANGE; THAILAND SPEC,L=1047,ORANGE

main63362-91705×2iMS132..WG198709-199110

63371DRETAINER, ROOF HEADLINING SUPPORT

main63371-12050×8iGS131..ROY198908-199110

main63371-30060×8iGS131,MS132,135..ROY..GEN198709-198908

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30070iMS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD198709-199110

63387PAD, ROOF HEADLINING FORMING

main63387-30030iGS131,MS132,135..ROY..GEN198709-199110

63388FRAME, ROOF HEADLINING FORMING

main63385-30050iGS131,MS132,135..ROY..GEN198709-199110

63391TRIM, ROOF HEADLINING, FRONT

main63391-30090-04iLS130,MS132,133,YS132..DLX,STD198709-199110

BLUE,TRIM8#

main63391-30090-06iLS130,MS132,133,YS132..(4F,5F)..(DLX,STD)198908-199110

SABLE,TRIM3#

main63391-30100-04iMS135..SED..GCC;GS131,MS132,133..SAL198709-199110

BLUE,TRIM8#

main63391-30100-06iMS135..SED..GCC;GS131,MS132,133..SAL198709-199110

SABLE,TRIM3#,4#

63393TRIM, ROOF HEADLINING, CENTER

main63393-91702-04iMS132..WG..GEN198709-199110

BLUE,TRIM8#

main63393-91702-06iMS132..WG..GEN198709-199110

SABLE,TRIM3#,4#

63393ETRIM, ROOF HEADLINING

main63393-30010×2iGS131,MS132,135..ROY..GEN198709-199110

9015860006

main90158-60006

9046804064

main90468-04064

9046804073

main90468-04073

9046804118

main90468-04118

9354014008

main93540-14008

9356014008

main93560-14008

9356014010

main93560-14010

23 parts on this diagram · 4 diagrams in section
