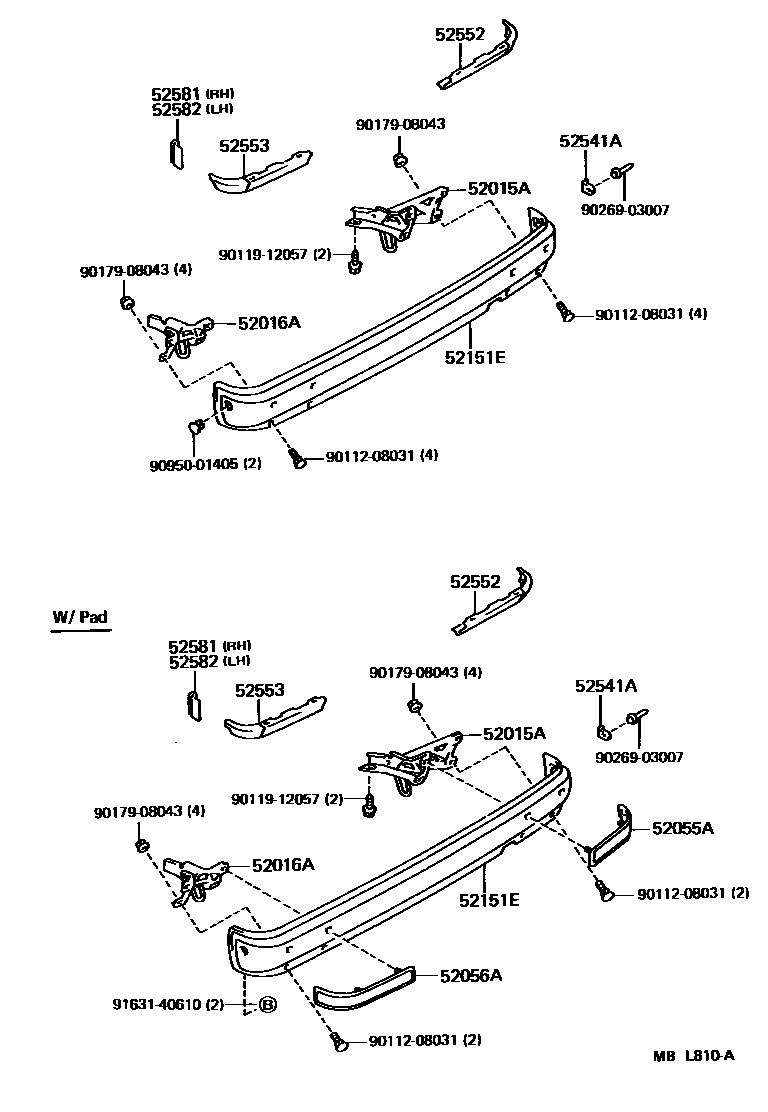

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-30110iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-30110iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52055APAD SUB-ASSY, REAR BUMPER, RH

main52055-30060iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52056APAD SUB-ASSY, REAR BUMPER, LH

main52056-30030iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52151EBAR, REAR BUMPER

main52151-30200iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52541APROTECTOR, REAR BUMPER

main52541-30030×2iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

52552FILLER, REAR BUMPER, RH

main52552-30050iMS132,135..ROY..GEN198709-198908

main52552-30070iMS133,135..GCC198709-198908

main52552-30080iMS132,135..ROY..GEN; MS135..SED..GCC;MS132..SED..(DLX,SAL,STD);GS131,LS130,MS133,YS132..SED198709-199110

W(SIDE LIGHTING OR UPPER LIGHTING)

main52552-30090iMS132,135..ROY..GEN198908-199110

main52552-30110iMS133,135..HT198908-199110

52553FILLER, REAR BUMPER, LH

main52553-30050iMS132,135..ROY..GEN198709-198908

main52553-30070iMS133,135..GCC198709-198908

main52553-30080iMS132,135..ROY..GEN; MS135..SED..GCC;MS132..SED..(DLX,SAL,STD);GS131,LS130,MS133,YS132..SED198709-199110

W(SIDE LIGHTING OR UPPER LIGHTING)

main52553-30090iMS132,135..ROY..GEN198908-199110

main52553-30110iMS133,135..HT198908-199110

52581PROTECTOR, REAR BUMPER, RH

main52581-30010iGS131,LS130,MS13#,YS132..HT,SED198709-199110

52582PROTECTOR, REAR BUMPER, LH

main52581-30010iGS131,LS130,MS13#,YS132..HT,SED198709-199110

9011208031

main90112-08031

9011912057

main90119-12057

9017908043

main90179-08043

9026903007

main90269-03007

9095001405

main90950-01405

9163140610

main91631-40610

16 parts on this diagram · 8 diagrams in section
