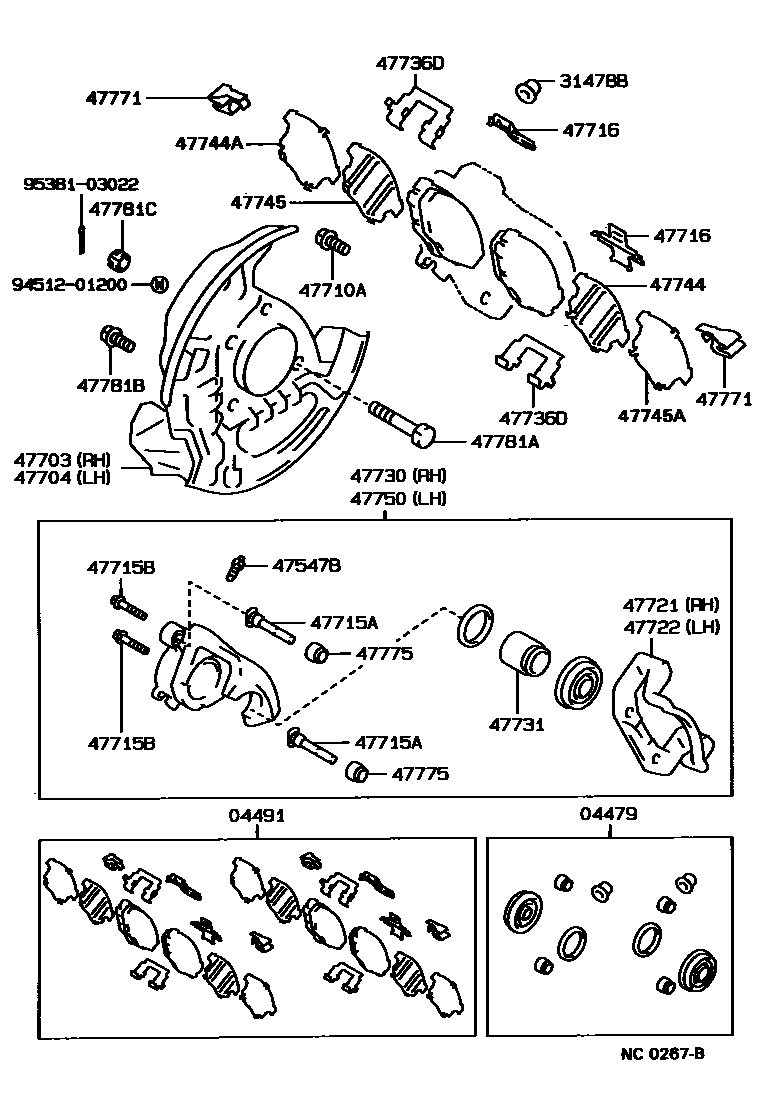

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30100iGS131,LS130,MS13#,YS132198709-199110

04491PAD KIT, DISC BRAKE, FRONT

main04491-30180iMS135..GCC; MS135..GEN;LS130,MS132,133,YS132198709-198809

W(5.5JJX14 ALUMINUM WHEEL)

main04491-30190iLS130,YS132;MS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-198810

W(FR TAXI DISC BRAKE)

main04491-30191iMS132..DLX;LS130,YS132;MS132..LHD..SED..MTM..GEN198810-198908

W(FR TAXI DISC BRAKE)

main04491-30200iMS135..GCC198709-198805

main04491-30220iMS135..GCC198805-198809

main04491-30230iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

main04491-30231iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132199008-199110

TAXI SPEC

main04491-30240iMS135..SED;GS131,LS130,MS132,133,YS132; MS135..V198908-199110

W(5.5JJX14 ALUMINUM WHEEL)

main04491-30250iMS135..V198908-199110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGS131,LS130,MS13#,YS132198709-199110

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iGS131,LS130,MS13#,YS132198709-199110

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-30130iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..GCC; MS135..GEN;GS131,MS132,133..(4FC,5F)..(DLX,ROY,SAL,SALEX)198709-198908

W(5.5JJX14 ALUMINUM WHEEL); W(POWER STEERING)

main47703-30150iMS135..HT198709-199110

main47703-30160iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-30130iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..GCC; MS135..GEN;GS131,MS132,133..(4FC,5F)..(DLX,ROY,SAL,SALEX)198709-198908

W(5.5JJX14 ALUMINUM WHEEL); W(POWER STEERING)

main47704-30150iMS135..HT198709-199110

main47704-30160iLS130,YS132198908-199110

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGS131,LS130,MS13#,YS132198709-198908

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-30040×4iGS131,LS130,MS13#,YS132198709-199110

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-09004×4iGS131,LS130,MS13#,YS132198709-199110

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-30060×4iGS131,LS130,MS132,133,YS132; MS135..HT; MS135..SED198709-199110

main47716-30070×4iMS135..V198908-199110

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30080iMS135..GCC198709-198908

W(5.5JJX14 ALUMINUM WHEEL)

main47721-30090iMS135..GCC198709-198908

main47721-30110iMS135..V198908-199110

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30010iMS135..V198908-199110

W(5.5JJX14 ALUMINUM WHEEL)

main47722-30020iMS135..GCC198709-198908

main47722-30040iMS135..V198908-199110

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30180iMS135..V198908-199110

W(5.5JJX14 ALUMINUM WHEEL)

main47730-30190iMS135..GCC198709-198908

main47730-30210iMS135..V198908-199008

main47730-30211iMS135..V199008-199110

47731PISTON, FRONT DISC BRAKE

main47731-30080×2iGS131,LS130,MS13#,YS132198709-199110

47736DLINER, FRONT DISC BRAKE PAD

main47736-30040×4iGS131,LS130,MS132,133,YS132; MS135..HT; MS135..SED198709-199110

main47736-30050×4iMS135..V198908-199110

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47742-30050×2iGS131,LS130,MS13#,YS132198908-199110

main47744-30150×2iGS131,LS130,MS13#,YS132198709-198908

main47744-30160×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-30050×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

main47744-30160×2iGS131,LS130,MS13#,YS132198908-199110

main47744-30180×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132199008-199110

TAXI SPEC

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-30050×2iGS131,LS130,MS13#,YS132198908-199110

main47744-30150×2iGS131,LS130,MS13#,YS132198709-198908

main47744-30160×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47742-30050×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

main47744-30160×2iGS131,LS130,MS13#,YS132198908-199110

main47744-30180×2iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132199008-199110

TAXI SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30180iMS135..GCC198709-198908

W(5.5JJX14 ALUMINUM WHEEL)

main47750-30190iMS135..GCC198709-198908

main47750-30210iMS135..V198908-199008

main47750-30211iMS135..V199008-199110

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22040×4iGS131,LS130,MS13#,YS132198709-198908

main47771-22060×4iLS130,YS132;MS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-198908

W(FR TAXI DISC BRAKE)

main47771-30050×4iLS130,MS132..SED..MTM..GEN; MS132..DLX; YS132198908-199008

TAXI SPEC

main47771-30060×4iGS131,LS130,MS13#,YS132198908-199110

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30040×4iGS131,LS130,MS13#,YS132198709-199110

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12009×2iLS130,MS132,YS132..STD198809-198908

main90102-12010×2iGS131,LS130,MS13#,YS132198709-199110

RR

47781BBOLT(FOR DUST COVER SETTING)

main91611-60812×2iGS131,LS130,MS13#,YS132198709-199110

*8-1.25PX12-7

main91611-60825×2iGS131,LS130,MS13#,YS132198709-199110

*8-1.25PX25-25

main91615-60835×2iMS135..HT198709-199110

*8-1.25PX35-30

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200×4iGS131,LS130,MS13#,YS132198709-199110

9451201200

main94512-01200

9538103022

main95381-03022

27 parts on this diagram · 2 diagrams in section
